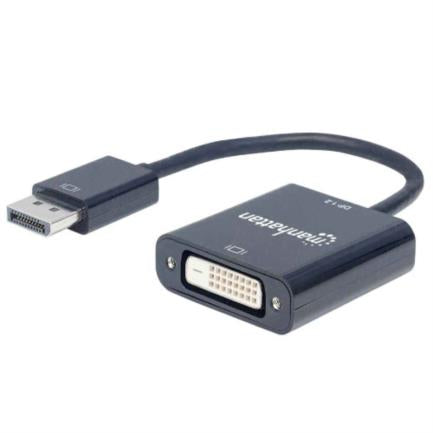

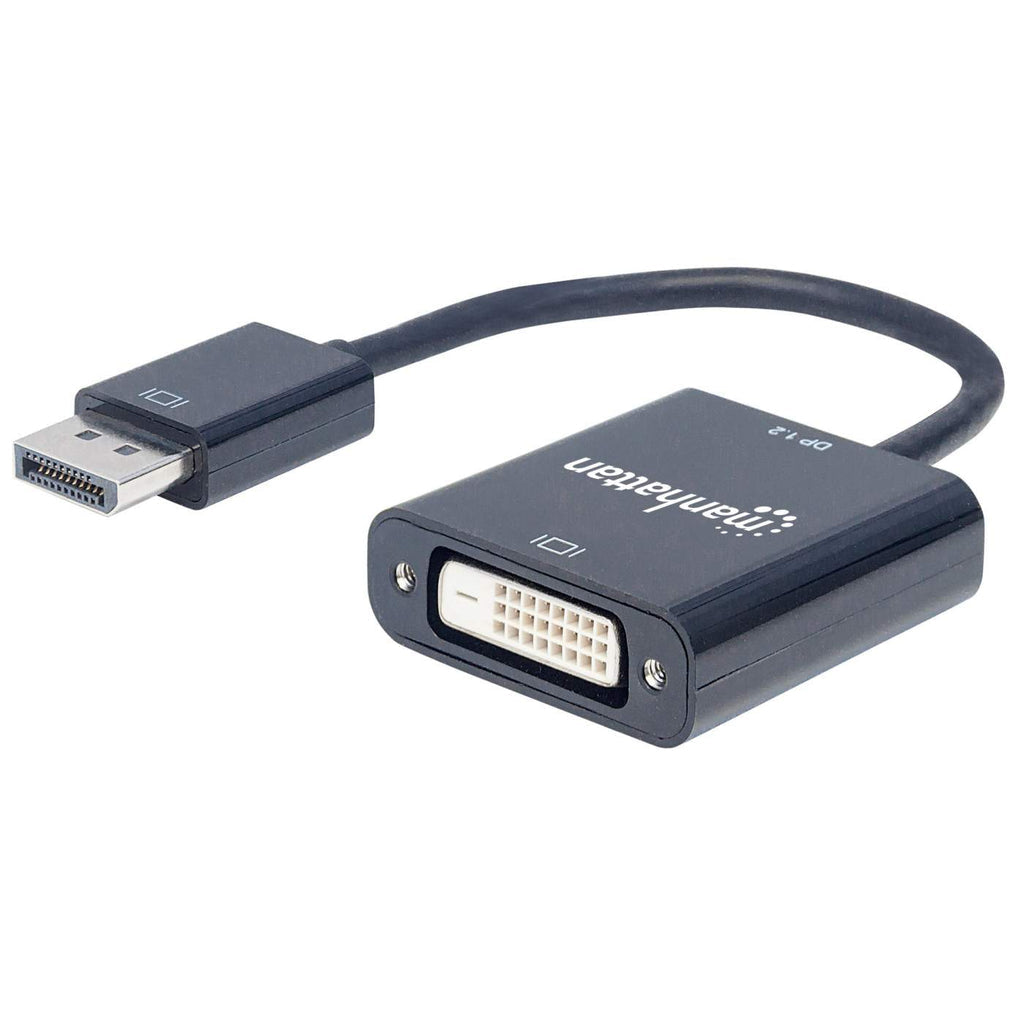

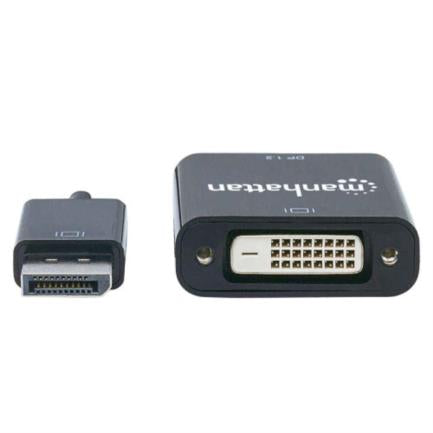

Manhattan DisplayPort 1.2a M to DVI-D H Active Adapter Black

Easily connect a DisplayPort source to a DVI-D display. The Manhattan DisplayPort to DVI-D Adapter establishes a fast, simple and convenient link between newer DisplayPort-equipped desktop or notebook computers and existing DVI-D monitors. The Manhattan DisplayPort to DVI-D Adapter is easy and quick to install. No complicated configuration or setup is necessary, which helps to extend the service life and value of DVI-D displays. Its all-in-one design helps avoid unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly. It delivers high-quality digital video and audio signals between DisplayPort-equipped desktop or notebook computers and an output device. The 20-pin connector is small and compact but delivers 14.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capabilities. It's ideal for use with DisplayPort-equipped computers, flat panel displays, slim-profile devices and many consumer electronics, including Blu-ray players and game consoles.

Easily connect a DisplayPort source to a DVI-D display. The Manhattan DisplayPort to DVI-D Adapter establishes a fast, simple and convenient link between newer DisplayPort-equipped desktop or notebook computers and existing DVI-D monitors. The Manhattan DisplayPort to DVI-D Adapter is easy and quick to install. No complicated configuration or setup is necessary, which helps to extend the service life and value of DVI-D displays. Its all-in-one design helps avoid unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly. It delivers high-quality digital video and audio signals between DisplayPort-equipped desktop or notebook computers and an output device. The 20-pin connector is small and compact but delivers 14.8 Gbps bandwidth, Deep Color and 24-bit, 8-channel uncompressed audio capabilities. It's ideal for use with DisplayPort-equipped computers, flat panel displays, slim-profile devices and many consumer electronics, including Blu-ray players and game consoles. A full foil and braid shield, molded boots with strain relief, PVC protective jackets and gold-plated connections help ensure that the Manhattan DisplayPort to DVI-D Adapter provides maximum conductivity and clear, crisp transmissions with reduced EMI interference and distortion.

Technical Specifications

General Features
Brand	Manhattan
Article	Adapter
Color	Black
Standards and certifications	• DisplayPort 1.2a • HDCP
Supports	8 and 10-bit Deep Color
Bandwidth	10.8 Gbps
Auxiliary channel support	1 Mbps
Supports one lane	one direction, four connection lines
Connectors	• 20-pin DisplayPort male • 24+1-pin DVI-D female • Gold-plated contacts • ABS plastic boots, with built-in PVC strain relief
Operating temperature:	0 - 50°C (32 - 122°F)
Storage temperature	-10 - 80°C (14 - 176°F)
Humidity (non-condensing)	0 - 96%
Dimensions	23 cm x 4 cm x 1.5 cm
Weight	4 g
