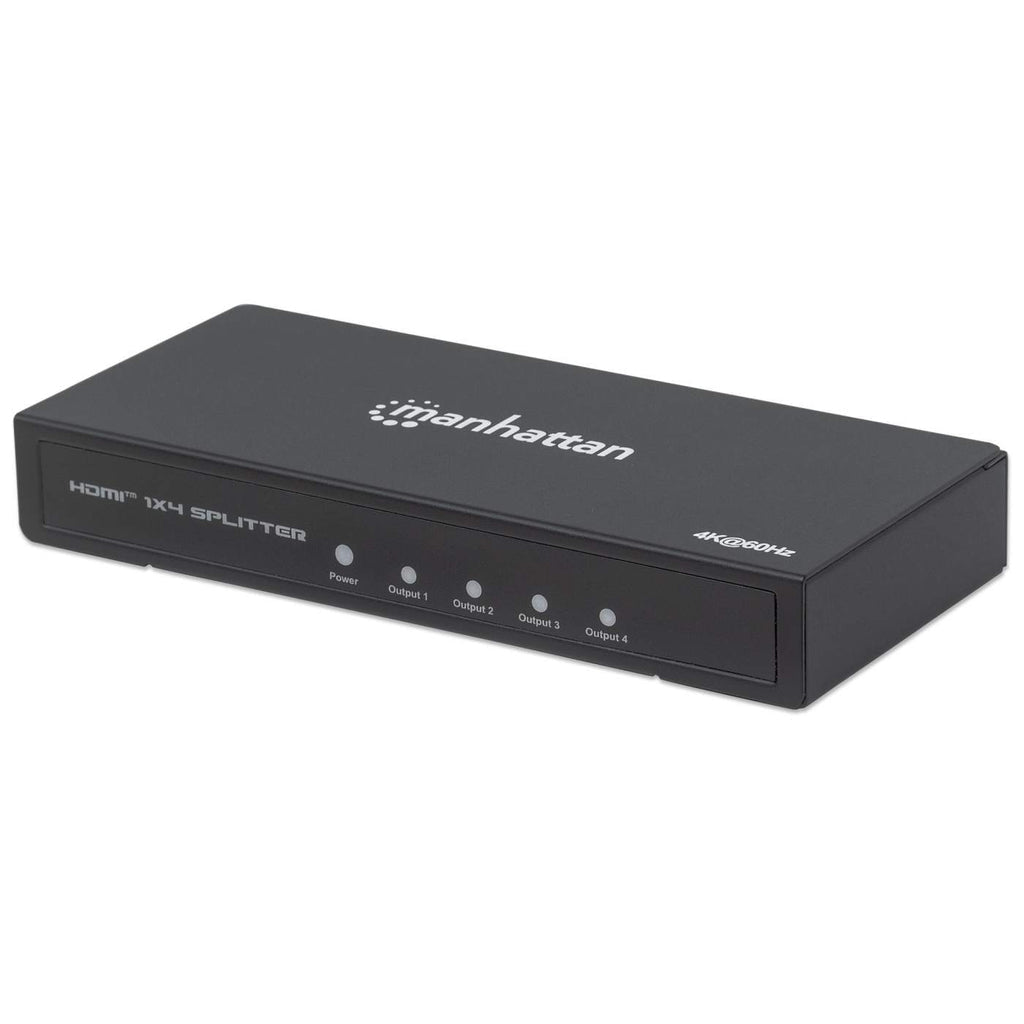

Manhattan HDMI 4K 60Hz 4-Port Video Splitter Black

Distribute a single Ultra-High-Definition (UHD) signal to multiple displays. The Manhattan 4K 4-Port HDMI Splitter with built-in booster transmits a 4K HDMI signal from a single UHD source to up to four UHD displays. Best Image Quality and Easy Installation Absolute HDMI and HDCP 2.2 compatibility guarantees high quality and reliability from the Manhattan 4K 4-Port HDMI Splitter. It transmits cinematic 4K resolution and supports 3D video, Deep Color, HDR, as well as LPCM, DTS, and Dolby TrueHD audio. Quickly connect all HDMI cables (not included) and the power cable, and this excellent 4K solution will be ready to use: no complicated software or hardware configurations.

Distribute a single Ultra High Definition (UHD) signal to multiple displays. The Manhattan 4K 4-Port HDMI Splitter with integrated booster transmits a 4K HDMI signal from a single UHD source to up to four UHD displays. The best image quality and easy installation Absolute compatibility with HDMI and HDCP 2.2 ensures high quality and reliability of the Manhattan 4K 4-Port HDMI splitter. It transmits a cinematic 4K resolution and supports 3D video, Deep Color, HDR, as well as LPCM, DTS and Dolby TrueHD audio. Quickly connect all HDMI cables (not included) and the power cable and this excellent 4K solution will be ready to use: no complicated software or hardware configurations.

Technical Specifications

General Features
Brand	Manhattan
Item	Adapter
Color	Black
Standards and certifications	• HDCP 2.2/1.4• CTS 1.4b• CE• FCC• RoHS2
Distance from source to splitter and splitter to display:	up to 20 m 4K@60Hz 4:4:4 — total 10 meters Max. 5 m from source to splitter Max. 5 m from splitter to display | 4K@30Hz — total 20 meters Max. 10 m from source to splitter Max. 10 m from splitter to display
Adapter	5 VDC / 2 A; 1.2 m
Power consumption	5 W
Connectors	One HDMI female connector (input), Four HDMI female connectors (output), 5 VDC female connector (input)
Video input signal:	0.5 - 1.0 V p-p
DDC signal input	5 V p-p (TTL)
Video output	HDMI 2.0, HDCP 2.2
Maximum single link range	18 Gb/s and 4096x2160 at 60 Hz resolution
Supported video resolutions	DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
LED indicators:	power and port connection
Operating temperature	0 - 40°
Storage temperature	-20 -60°C
Humidity (non-condensing):	0 – 96%
Dimensions	15.4 cm x 6.9 cm x 2.3 cm
Weight	0.25 kg
