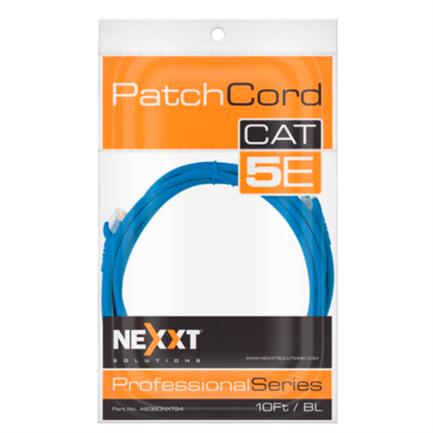

Nexxt Solutions Cat5e 100 MHz 3.05m 24 AWG Blue Network Patch Cable

Nexxt Solutions Cat5e 100 MHz 3.05m 24 AWG Blue Network Patch Cable

Name: Nexxt Solutions Cat5e 100 MHz 3.05m 24 AWG Blue Network Patch Cable
Brand: NEXTEP
SKU: AB360NXT24
Price: 61.0 MXN
Availability: InStock

$ 61.00

Estimated delivery time: 5 business days (Domestic)

Usa el código “DB2B2026” para obtener un descuento del 15%

Free shipping on purchases over $999.00 MXN.

Ask a question

Barcode: N/A
Sku: AB360NXT24
Type: Network Cables

Garantizamos un pago seguro:

Technical Specifications

General Features
Brand	Nexxt Solutions
Item:	Patch Cable
Model	AB360NXT24
Cable type:	Unshielded Twisted Pair (UTP) cable
Number of pairs:	4
Number of conductors:	8
Conductor material:	Stranded bare copper
Conductor gauge:	24 AWG
Inner jacket material:	HDPE (CMI-75E) \| Pair 1:Blue and white/ Blue \| Pair 2: Orange and white/ Orange \| Pair 3: Green and white/ Green \| Pair 4: Brown and white/ Brown
External features:	Outer jacket material: 75ºC PVC (CMI-80S) \| Average cable diameter: 5.5 ± 0.3mm \| Available jacket color: gray
Characteristic impedance (Zo):	100 Ohm ± 15%
DC resistive capacitive unbalance:	3%
Minimum propagation velocity:	0.65C
PoE standard compliance:	IEEE802.3af, PoE type 1 (15.4 Watts/100m) \| IEEE802.3at, PoE type 2 (30 Watts/100m) \| IEEE802.3bt, PoE type 3 (60 Watts/100m)
Connector color:	Transparent - molded
Connector material:	UL 94V-2 Polycarbonate
Contact material:	Phosphor bronze plated with 50-60 micro-inches of nickel
Contact finish:	50 micro-inch gold plating minimum
Transmission speed:	100 Mbps
Bandwidth:	100 MHz
Cable length:	3.05 m
Warranty:	Limited lifetime
Color:	Blue
