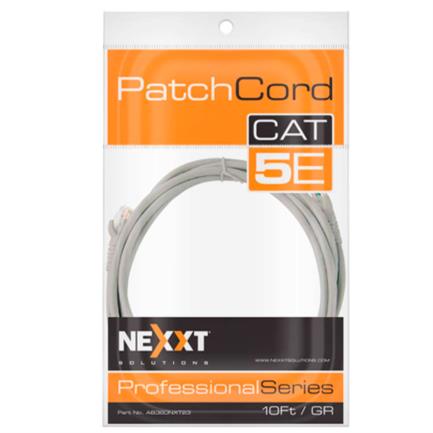

Nexxt Solutions Cat5e Network Patch Cable 100 MHz 3.05m 24 AWG Gray

Cat.5E UTP stranded patch cords, with CM jacket

Our Category 5E patch cords are recognized for their proven performance and also comply with all international electrical standards (ISO/IEC 11801, ANSI/TIA/EIA-568 C.2, EN 50173). Each 24 AWG patch cord includes an RJ-45 connector and a modular boot to prevent damage to the connection and maintain the appropriate bend radius. Available in 7 attractive colors and 6 different lengths, they easily adapt to the specific needs of your network.

Technical Specifications

General Features
Brand	Nexxt Solutions
Item:	Patch Cable
Model	AB360NXT23
Cable type:	Unshielded twisted pair "UTP" cable
Number of pairs:	4
Number of conductors:	8
Conductor material:	Stranded copper
Conductor gauge:	24 AWG
Inner jacket material:	HDPE (CMI-75E) | Pair 1: Blue and white/Blue | Pair 2: Orange and white/Orange | Pair 3: Green and white/Green | Pair 4: Brown and white/Brown
External features:	Outer jacket material: 75ºC PVC (CMI-80S) | Average cable diameter: 5.5 ± 0.3mm | Available jacket color: gray
Characteristic impedance (Zo):	100 Ohm ± 15%
DC resistive capacitive imbalance:	3%
Minimum propagation velocity:	0.65C
PoE standard compliance:	IEEE802.3af, PoE Type 1 (15.4 Watts/100m) | IEEE802.3at, PoE Type 2 (30 Watts/100m) | IEEE802.3bt, PoE Type 3 (60 Watts/100m)
Connector color:	Transparent - molded
Connector material:	Polycarbonate UL 94V-2
Contact material:	Phosphor bronze plated with 50-60 microinches of nickel
Contact finish:	Minimum 50 microinches gold plating
Transmission speed:	100 Mbps
Bandwidth:	100 MHz
Cable length	3.05 m
Warranty:	Limited lifetime
Color	Gray
