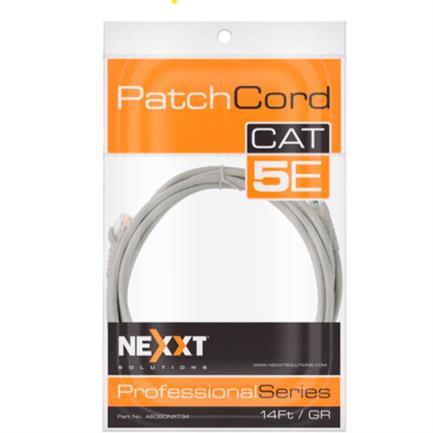

Nexxt Solutions Cat5e 100 MHz 4.27m 24 AWG Gray Network Patch Cable

Our Category 5E patch cords are known for their proven performance, and they also comply with all international electrical standards (ISO/IEC 11801, ANSI/TIA/EIA-568 C.2, EN 50173). Each 24 AWG patch cord includes an RJ-45 connector and a modular boot to prevent connection damage and maintain the proper bend radius. Available in 7 attractive colors and 6 different lengths, they easily adapt to your network's specific needs.

Technical Specifications

General Features
Brand	Nexxt Solutions
Item:	Patch Cord
Model:	AB360NXT34
Cable type:	Unshielded twisted pair “UTP” cable
Number of pairs:	4
Number of conductors:	8
Conductor material:	Multi-strand braided copper
Conductor gauge:	24 AWG
Inner jacket material:	HDPE (CMI-75E) | Pair 1: Blue and white/Blue | Pair 2: Orange and white/Orange | Pair 3: Green and white/Green | Pair 4: Brown and white/Brown
External features:	Outer jacket material: 75ºC PVC (CMI-80S) | Average cable diameter: 5.5 ± 0.3mm | Available jacket color: gray
Characteristic impedance (Zo):	100 Ohm ± 15%
DC resistive capacitive imbalance:	3%
Minimum propagation speed:	0.65C
PoE standard compliance:	IEEE802.3af, PoE Type 1 (15.4 Watts/100m) | IEEE802.3at, PoE Type 2 (30 Watts/100m) | IEEE802.3bt, PoE Type 3 (60 Watts/100m)
Connector color:	Transparent - molded
Connector material:	Polycarbonate UL 94V-2
Contact material:	Phosphor bronze plated with 50-60 micro inches of nickel
Contact finish:	Minimum 50 micro inches gold plating
Transmission speed:	100 Mbps
Bandwidth:	100 MHz
Cable length:	4.27 m
Warranty:	Limited lifetime
Color	Gray
