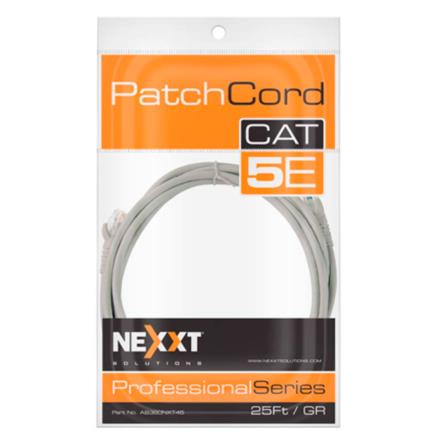

Nexxt Solutions Cat5e 100 MHz 7.62m 24 AWG Gray Network Patch Cable

Our Category 5E interconnect cables are recognized for their proven performance and comply with all international electrical standards (ISO/IEC 11801, ANSI/TIA/EIA-568 C.2, EN 50173). Each 24 AWG interconnect cable includes an RJ-45 connector and a modular boot to prevent damage to the connection and maintain the appropriate bend radius. Available in 7 attractive colors and 6 different lengths, they easily adapt to your network's specific needs.

Technical Specifications

General Features
Brand	Nexxt Solutions
Item:	Patch Cable
Model:	AB360NXT45
Cable type:	Unshielded Twisted Pair (UTP) Cable
Number of pairs:	4
Number of conductors:	8
Conductor material:	Multi-strand braided copper
Conductor gauge:	24 AWG
Inner sheath material:	HDPE (CMI-75E) | Pair 1: Blue & white/ Blue | Pair 2: Orange & white/ Orange | Pair 3: Green & white/ Green | Pair 4: Brown & white/ Brown
External features:	Outer sheath material: 75ºC PVC (CMI-80S) | Average cable diameter: 5.5 ± 0.3mm | Available sheath color: gray
Characteristic impedance (Zo):	100 Ohm ± 15%
DC resistive capacitive unbalance:	3%
Minimum propagation speed:	0.65C
PoE standard compliance:	IEEE802.3af, PoE type 1 (15.4 Watts/100m) | IEEE802.3at, PoE type 2 (30 Watts/100m) | IEEE802.3bt, PoE type 3 (60 Watts/100m)
Connector color:	Transparent - molded
Connector material:	Polycarbonate UL 94V-2
Contact material:	Phosphor bronze plated with 50-60 micro inches of nickel
Contact finish:	Minimum 50 micro inch gold plating
Transmission speed:	100 Mbps
Bandwidth:	100 MHz
Cable length:	7.62 m
Warranty	Limited lifetime
Color	Gray
