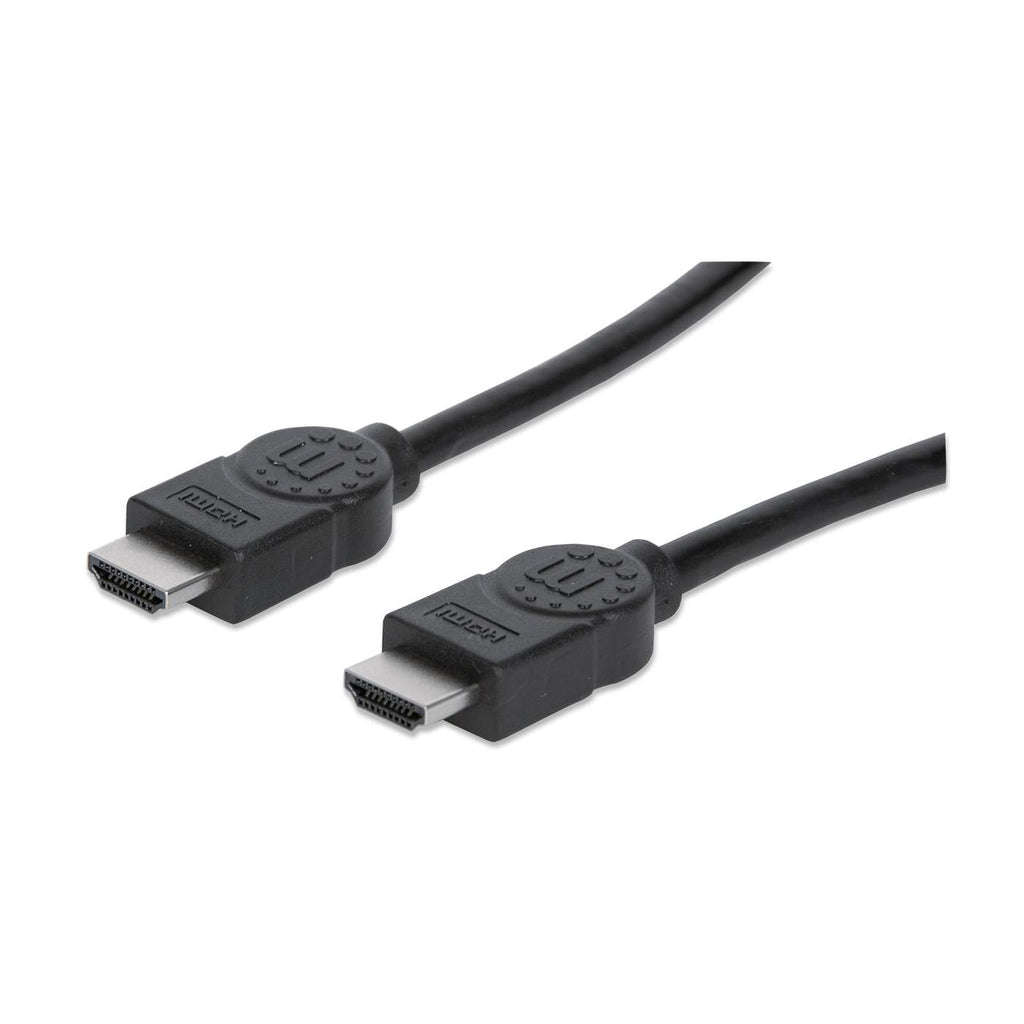

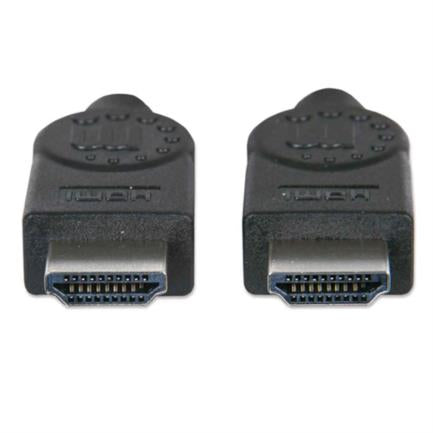

Manhattan HDMI M-M High-Speed Shielded Cable 1m Black

A High-Speed Cable for High-Definition Performance. HDMI has become the digital standard for high-quality audio and video connections over a single cable. MANHATTAN High-Speed HDMI Cables are designed and carefully constructed to meet the high-definition needs of the market. MANHATTAN High-Speed HDMI Cables provide the highest possible resolution at 4K x 2K, audio return channel, and a bandwidth of 10.2 Gbit/sec at 340 MHz. These high-quality cables provide high-definition video and multi-channel digital audio, enhanced accuracy, and improved performance features.

A high-speed cable for high-definition performance

HDMI has become the standard digital connection, providing the highest quality audio and video signal over a single cable. The Manhattan High-Speed HDMI Cable is carefully designed and built to meet the evolving needs of the high-definition market. This shielded cable offers the highest possible resolution of 4K x 2K, an audio return channel, and a bandwidth of 10.2 Gigabits per second at 600 MHz. As a high-quality HDMI cable, it provides high-definition video and multi-channel digital audio, with improved performance features, greater accuracy, and extended functionality.

Technical Specifications

General Features
Brand	Manhattan
Item	Cable
Color	Black
Bandwidth:	10.2 Gbps at 340 MHz
General	Meets or exceeds current HDMI standards
Length	1m
Connectors	2 HDMI 19-pin, male
Contacts	Gold-plated contacts
Terminals	PVC molded
Gauge	30 AWG
Design	Double shielded, aluminum and braided
Average current	0.5 A DC
Breakdown voltage	300 V DC
Insulation resistance:	5 MOhms
Conductivity resistance:	1 Ohm
Operating temperature	0 – 40°C
Storage temperature	-20 – 60°C
Humidity (non-condensing):	0 – 96%
