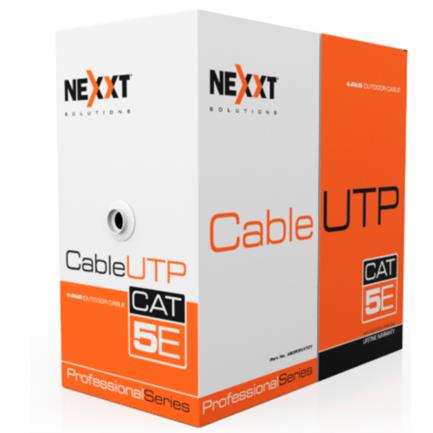

Nexxt Solutions Cat5e UTP Cable 100MHz 4P CM 305m 24AWG Gray

Nexxt Solutions Cat5e UTP Cable 100MHz 4P CM 305m 24AWG Gray

Name: Nexxt Solutions Cat5e UTP Cable 100MHz 4P CM 305m 24AWG Gray
Brand: NEXTEP
SKU: AB355NXT01
Price: 2256.0 MXN
Availability: InStock

$ 2,256.00

Estimated delivery time: 5 business days (Domestic)

Usa el código “DB2B2026” para obtener un descuento del 15%

Free shipping on purchases over $999.00 MXN.

Ask a question

Barcode: N/A
Sku: AB355NXT01
Type: Network Cables

Garantizamos un pago seguro:

Technical Specifications

General Characteristics
Brand	Nexxt Solutions
Item	Cable on reel
Model	AB355NXT01

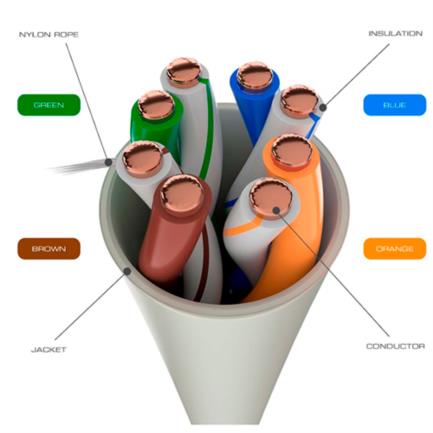

Cable type	Unshielded Twisted Pair (UTP)
Number of pairs	4
Number of conductors	8
Conductor material	Solid polished copper
Conductor gauge	24 AWG
Internal jacket	HDPE (CMI-75E)
Minimum average thickness	0.178mm
Minimum thickness	0.153mm
Color combinations	Pair 1: Blue and white/ Blue \| Pair 2: Orange and white/ Orange \| Pair 3: Green and white/ Green \| Pair 4: Brown and white/ Brown
Outer jacket material	75ºC PVC (CMI-80S)
Average cable diameter	5.3mm ± 0.3mm
Maximum resistance	11kg
Jacket color	Grey
Rated voltage	75V
Temperature	75ºC
DC resistance unbalance	5%
Pair-to-ground capacitance unbalance	Max. 330 pF/100m
Mutual capacitance	Max. 5,600 pF/100m
Dielectric strength	2.5kV DC/2sec or 1.75kV AC/2sec
Transmission speed	100Mbps
Bandwidth	100MHz
Maximum link distance	90m
Maximum channel distance	100m
Cable length	1000ft/ 305m
Warranty	Limited lifetime
