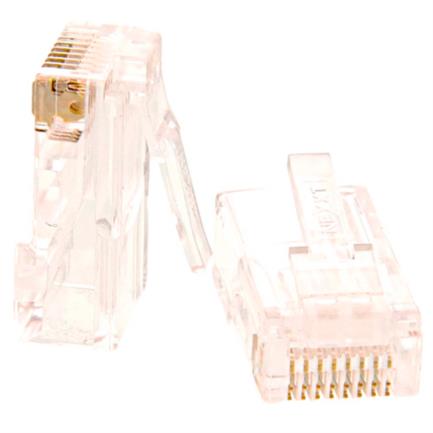

Nexxt Solutions AW102NXT01 Modular Plugs RJ45 Gold over Nickel 30µ Cat 5e Unshielded (100 Pcs)

Nexxt Solutions AW102NXT01 Modular Plugs RJ45 Gold over Nickel 30µ Cat 5e Unshielded (100 Pcs)

Name: Nexxt Solutions AW102NXT01 Modular Plugs RJ45 Gold over Nickel 30µ Cat 5e Unshielded (100 Pcs)
Brand: NEXTEP
SKU: AW102NXT01
Price: 234.0 MXN
Availability: InStock

$ 234.00

Estimated delivery time: 5 business days (Domestic)

Usa el código “DB2B2026” para obtener un descuento del 15%

Free shipping on purchases over $999.00 MXN.

Ask a question

Barcode: N/A
Sku: AW102NXT01
Type: Channeling

Garantizamos un pago seguro:

Technical Specifications

General Characteristics
Brand	Nexxt Solutions
Item:	Modular connectors
Model	AW102NXT01
Connector Features	Category: Cat.5e \| Housing material and color: Clear polycarbonate, UL 94V-2 \| Contact terminal material and finish: Phosphor bronze with 30 micro-inch nickel-plated and 30 micro-inch gold-plated contacts \| Gold plating: 30 micro-inches \| Contact type: Straight blade \| Tensile strength: 7.7kg between wire and connector \| Cable insertion hole: For solid and stranded 24-26 AWG wires \| Wiring: T568A and T568B \| Operating temperature: -40ºC to 80ºC (ISO/IEC 11801, ANSI/TIA/EIA-568-C.2)
Transmission Characteristics	Transmission speed (Mbps): 100Mbps \| Bandwidth (MHz): 100MHz
Certifications and Standards	International Standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801
Packaging	Plastic Bag
Cubic feet	1.76 per 100 units
Warranty	Limited lifetime.
