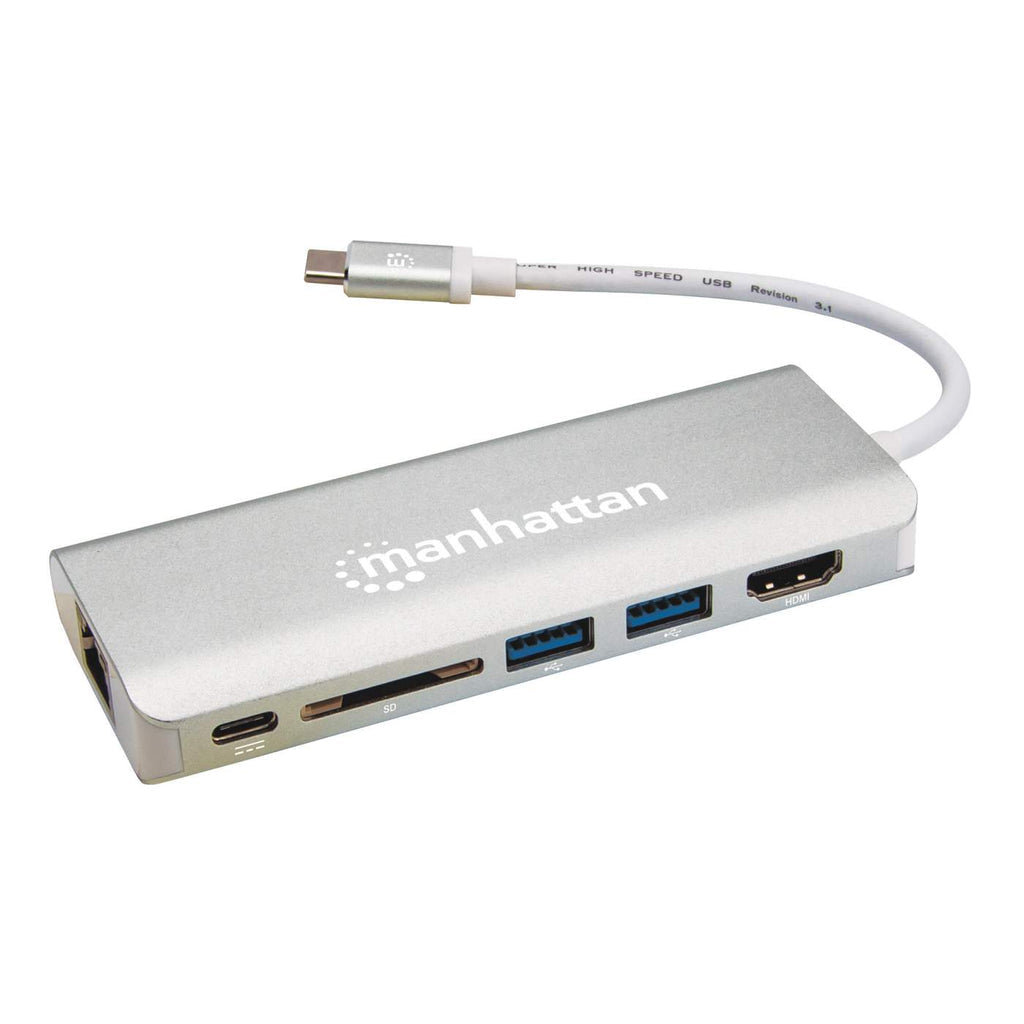

Manhattan USB-C 6-in-1 HDMI/RJ45/USB Hub/Dock

The Manhattan 6-in-1 USB Type-C Docking Station Port Replicator establishes a fast, simple, and convenient link between a new USB Type-C-equipped media source (computer, tablet, smartphone, etc.) and an HDMI display (monitor, projector, etc.), in either mirror or extended display mode. Additionally, this hub creates a mini workstation using the USB Type-A ports where two USB 3.0 (and earlier) peripherals, such as a mouse, keyboard, hub, USB drive, and more, can be added. It also allows Gigabit network connection through its RJ45 port and SD card reading in the included slot.

Provide your USB Type-C device with easy network connectivity, get the perfect connection to your HDMI display, as well as to USB peripherals and SD memory cards. The Manhattan 6-in-1 USB Type-C Docking Station establishes a fast, simple, and convenient link between a new USB Type-C-equipped media source (computer, tablet, smartphone, etc.) and an HDMI display (monitor, projector, etc.), in either mirror or extended display mode. Additionally, this hub creates a mini workstation using the USB Type-A ports where two USB 3.0 (and earlier) peripherals, such as a mouse, keyboard, hub, USB drive, and more, can be added. It also allows Gigabit network connection through its RJ45 port and SD card reading in the included slot. The Manhattan 6-in-1 USB Type-C Port Replicator is quick and easy to install. No complicated setup is required, and it helps improve the functionality of your Type-C device. Its design provides a compact and integrated solution that eliminates unnecessary cables, tangles, and clutter to keep installations and workspaces clean and tidy.

Technical Specifications

General Features
Brand	Manhattan
Item	Dock
Video Resolution	640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K
USB-A Ports	5 Gbps
Supported Flash Cards:	SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile
Supports Flash Cards	SD, SDHC and SDXC; up to 128 GB Transfer speed: up to 40 Mbps
Cable Gauge	34 AWG
Powered	by bus
USB-C PD Power Port	60 W (20 V at 5 A)
Total USB-A Output:	5 V, 2 A
Breakdown Voltage:	300 V DC
Insulation Resistance	10 MOhm
Conductive Resistance:	5 Ohm
Connections	Inputs: • One 24-pin USB-C, Male | Outputs: • 1 HDMI 19-pin input, Female • 1 RJ45 10/100/1000 Mbps input, Female • 2 USB-A 4-pin, Female • 1 SD card input • One 24-pin USB-C, Power Delivery, data sync, Female
System Requirements	Windows XP/Vista/7/8.1/10 or Linux or Mac 10.7.1 or higher
Dimensions	11.6 cm x 4.5 cm x 1.5 cm
Weight	13 cm
