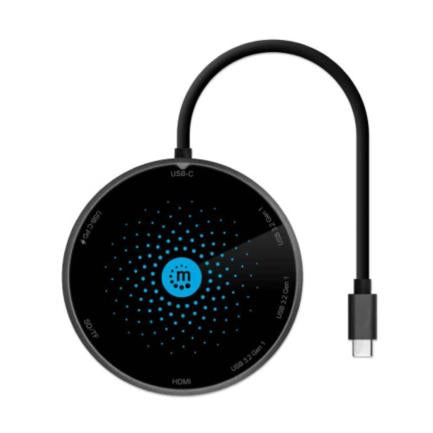

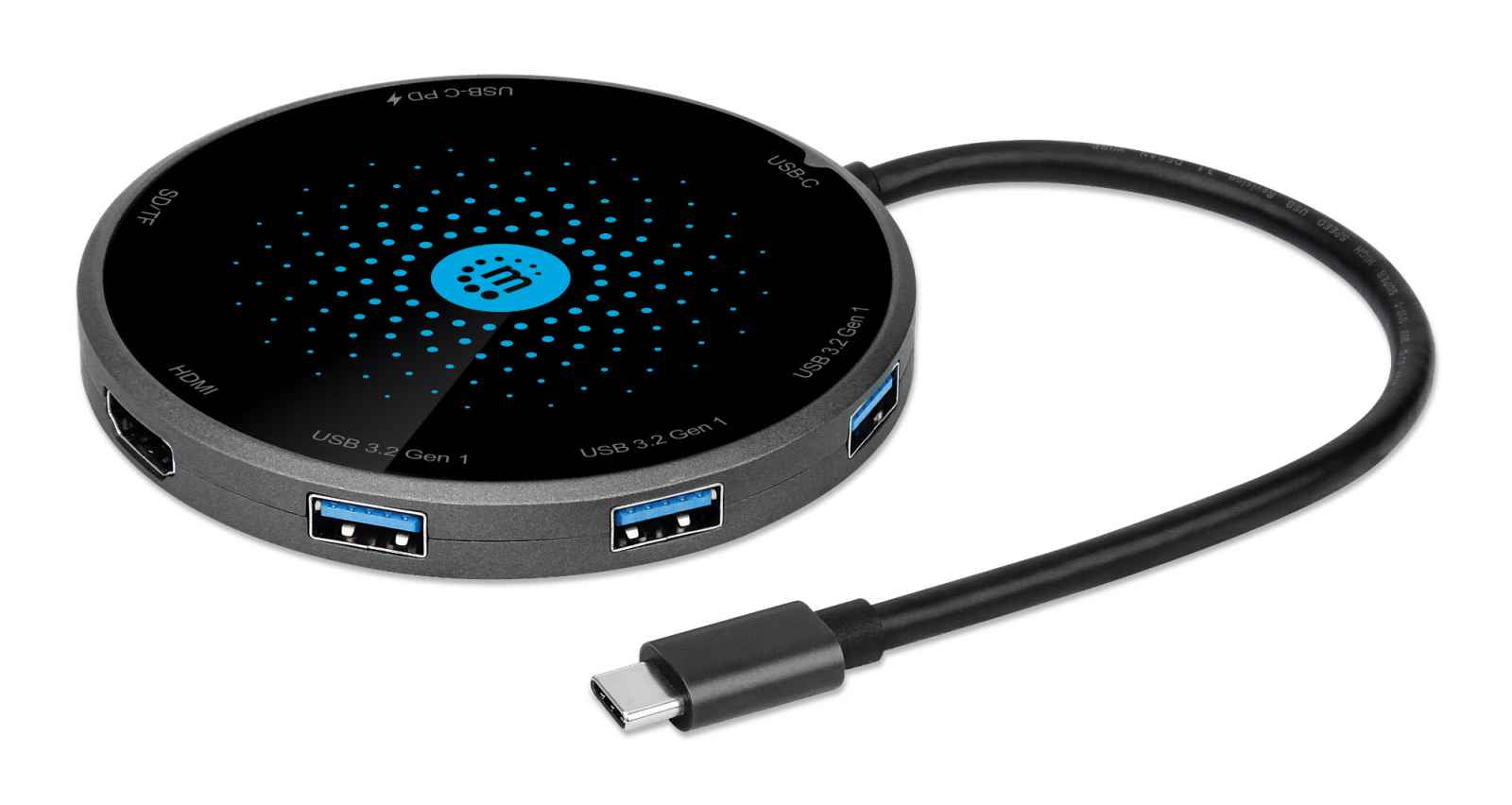

Manhattan USB-C to HDMI USB-C PD 3xUSB-A Card Reader Dock with Wireless Charging Stand

The Manhattan USB-C Docking Station with Wireless Charging Pad is the multi-purpose solution for charging devices, connecting peripherals, and even connecting a display.

The Manhattan USB-C Docking Station with Wireless Charging Pad is the multi-purpose solution for charging devices, connecting peripherals, and even connecting a display.
More Connectivity Options
This docking station offers three USB 3.2 Gen 1 ports for greater productivity from your connected USB devices. In addition, peripherals such as a mouse and keyboard can be easily connected, or you can access data from USB drives or hard drives with transfer speeds of up to 5 Gbps. For data transfer from card readers, the docking station offers two card reader slots for SD and microSD cards. The docking station's HDMI port lets you experience great visuals: connect it to a display or projector and enjoy crystal-clear UHD with resolutions up to 4K@30Hz.
High-volume Charging
The three USB-A ports are not limited to adding peripherals; they can be used to charge mobile devices at speeds of up to 1.5 A per port. If you have a compatible smartphone, you can quickly charge it wirelessly with up to 10 W of power. Just place it on the tempered glass base. If you connect a Power Delivery charger to the USB-C port, that port can supply power to all connected devices in your system, including your laptop, with up to 60 W of available power. The port's overcharge, overcurrent, and overtemperature protection keeps your devices safe.

Technical Specifications

General Features
Brand	Manhattan
Item	Docking Station
Standards and Certifications	• USB 3.2 Gen 1 • HDMI 1.4 • HDCP 2.2 • CE • FCC • RoHS
Video Resolutions	640x480, 800x600, 1024x768, 1920x1200, 1920x1080, 3840x2160
USB-A Port Data Transfer Speed	up to 5 Gbps
Compatible Flash Cards	SD / microSD / TransFlash, microSDHC / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile
Bus-powered	Yes
USB-C PD Charging Port	60 W (5 - 20 V; maximum 3 A)
Voltage Resistance:	300 VDC
Conductive Resistance	5 Ohm
Thermal Plastic Sheath	Yes
Voltage/Current Settings (maximum)	USB-C: -- 5 V / 3 A -- 9 V / 3 A -- 12 V / 3 A -- 15 V / 3 A -- 19 V / 3 A -- 20 V / 3 A
Connections	• One 24-pin USB-C, Male • 1 19-pin HDMI input, Female • Three 9-pin USB-A, Female • One SD card slot • One Micro SD (TF) card slot • 1 24-pin USB-C input, Power Delivery, Female
Protection	• Short Circuit Protection (SCP) with auto-recovery mode • Over Voltage Protection (OVP) with auto-recovery mode • Over Current Protection (OCP) — current limit: 150% (max) • Over Temperature Protection (OTP)
10 W Fast Charging Mode	- Samsung Galaxy S7 / S7 Edge / S8 / S8 + / S9 / S9 + / S10 or higher - Huawei Mate20 Pro, Mate20 RS, P20 Pro, P30 Pro or higher - Samsung Note 8/9/10 or higher
7.5 W Charging Mode	Apple iPhone 8 / 8 Plus / X / XR / XS / XS Max / 11 / 11 Pro / 11 Pro Max or higher
5 W Charging Mode	All other Qi-enabled devices
System Requirements - Wireless Charging Pad	• Up to 10 W output: - Quick Charge 2.0 / 3.0 Charger - Power Delivery 18 W Charger • 5 W: - 5 V / 2 A Charger
Operating Temperature:	0 – 50°C (32 – 122°F)
Storage Temperature:	-10 – 70°C (-4 – 158°F)
Humidity (non-condensing)	5 - 90% RH
System Requirements	Windows 7/8.1/10, Linux, Mac OS or Chrome OS
Dimensions	9.4 cm x 9.4 cm x 1.2 cm
Weight	154 g
