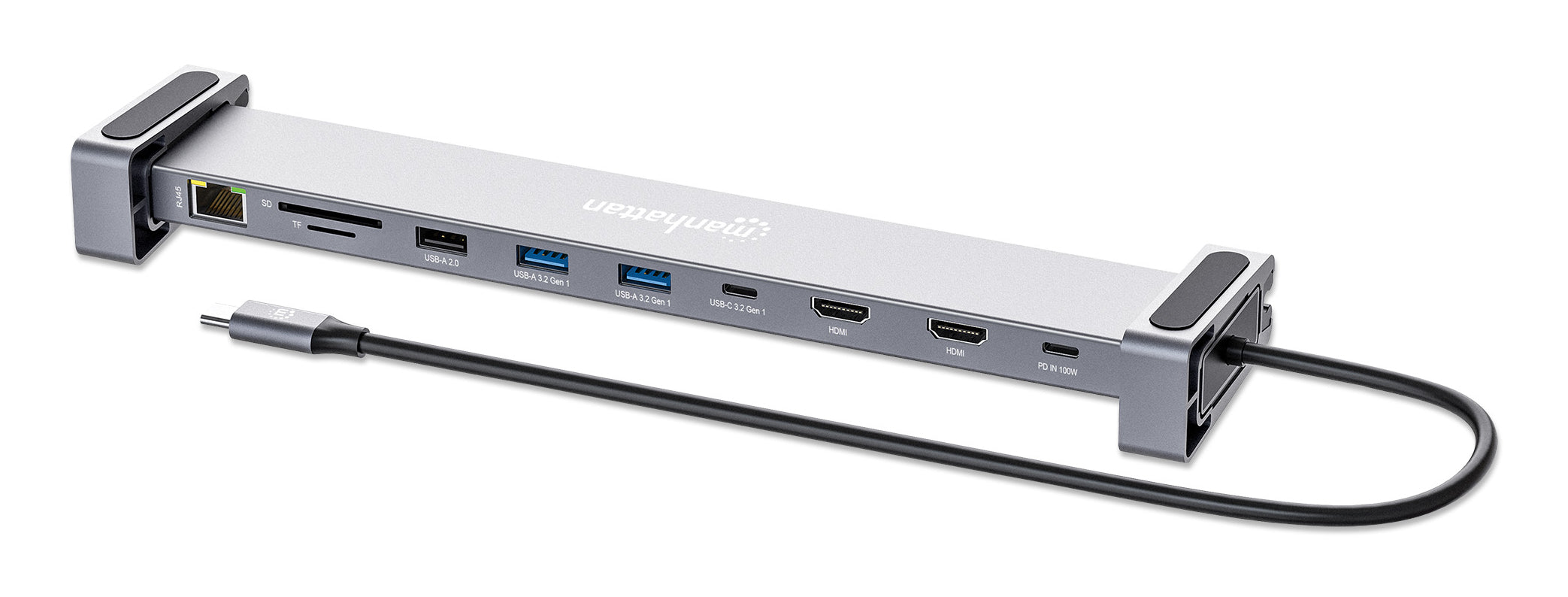

Manhattan 10-port USB-C Dock with MST 2xHDMI 3xUSB-A USB-C USB-C PD RJ45 SD-micro SD

USB-C Docking Station for Laptops and MacBooks®: Use two 4K HDMI monitors and 10 connections to your device

Improve your device's connectivity with Manhattan's 10-in-1 USB-C Docking Station. This versatile docking station fills the gaps in your laptop or MacBook®, offering essential connections such as HDMI, Power Delivery, Ethernet, a card reader, and USB ports.


Dual 4K Display Connectivity Without Scaling Down

The two HDMI ports allow you to multitask on more monitors at once. While other dual monitor docking stations usually have to reduce the fps (frames per second) to 30, this one will allow you to view in high-performance 4K at 60 Hz.


Versatile Connectivity for Your Peripherals and Wired Network

You can also meet most connectivity needs with three USB-A ports that quickly connect and charge compatible devices, as well as a SuperSpeed USB-C data transfer port for connecting high-bandwidth devices. Solve the lack of wired network connectivity on most contemporary Ultrabooks™ and MacBooks® by using the Gigabit RJ45 port for reliable 10/100/1000 Mbps speeds. Thanks to two SD/microSD card slots, you no longer need an external card reader.


Powerful Charging up to 100W

Charge your notebook with up to 100W through the featured USB-C PD port. Simultaneously charge other mobile devices like tablets or smartphones via the USB-A connections. The Power Delivery function intelligently determines the power requirements of compatible devices, ensuring safe and faster charging than standard chargers.


From Your Phone to Your Display or Monitor

Connect an Android 9 or later smartphone that supports video output via USB-C DP Alternate Mode (Alt-Mode) and enjoy your apps and media on a larger scale by watching videos or presenting slides directly from your phone to your display or monitor.


The Best Connection Accessory for Your Travels

This multi-port adapter, encased in sturdy aluminum, is designed to be your ideal travel companion. It's compact enough to easily fit in a pocket of your computer backpack, ensuring that connectivity is never compromised while traveling. You can place your laptop on top of the docking station, which saves desk space. The built-in cable is long enough to connect to any USB-C port on your laptop, whether on the left or right side of the device.

Technical Specifications

General Features
Brand	Manhattan
Item	USB-C Docking Station
Model	190398
Cable length	0.5m
USB-C Connectors	1× USB-C male 24-pin; 1× USB-C PD female 24-pin
HDMI Connectors	2× HDMI female (19-pin)
Network Connector	1× RJ-45 10/100/1000 Mbps (female)
USB-A Connectors	2× USB-A female (9-pin)
Card Inputs	1× SD slot; 1× microSD slot
Available Video Resolutions	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30 Hz, 4K@60 Hz
USB-C to USB-A Transfer Speed	Up to 5 Gbps (USB 3.2 Gen 1)
USB-A to USB-2 Transfer Speed	Up to 480 Mbps
Power Delivery (bus only)	PD1: 4.5 W (5 V @ 0.9 A) max.; USB A2.2: 2.5 W (5 V @ 0.5 A) max.
Power Delivery (dedicated port)	Up to 100 W (20 V @ 5 A)
Max PD Voltage/Current Ranges	5 V/3 A; 9 V/3 A; 12 V/3 A; 15 V/3 A; 20 V/5 A
Dimensions	269 × 60 × 30 mm (10.6 × 2.36 × 1.18 in)
Warranty	3-Year Warranty
