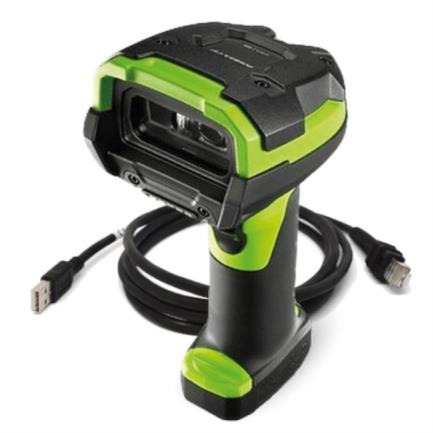

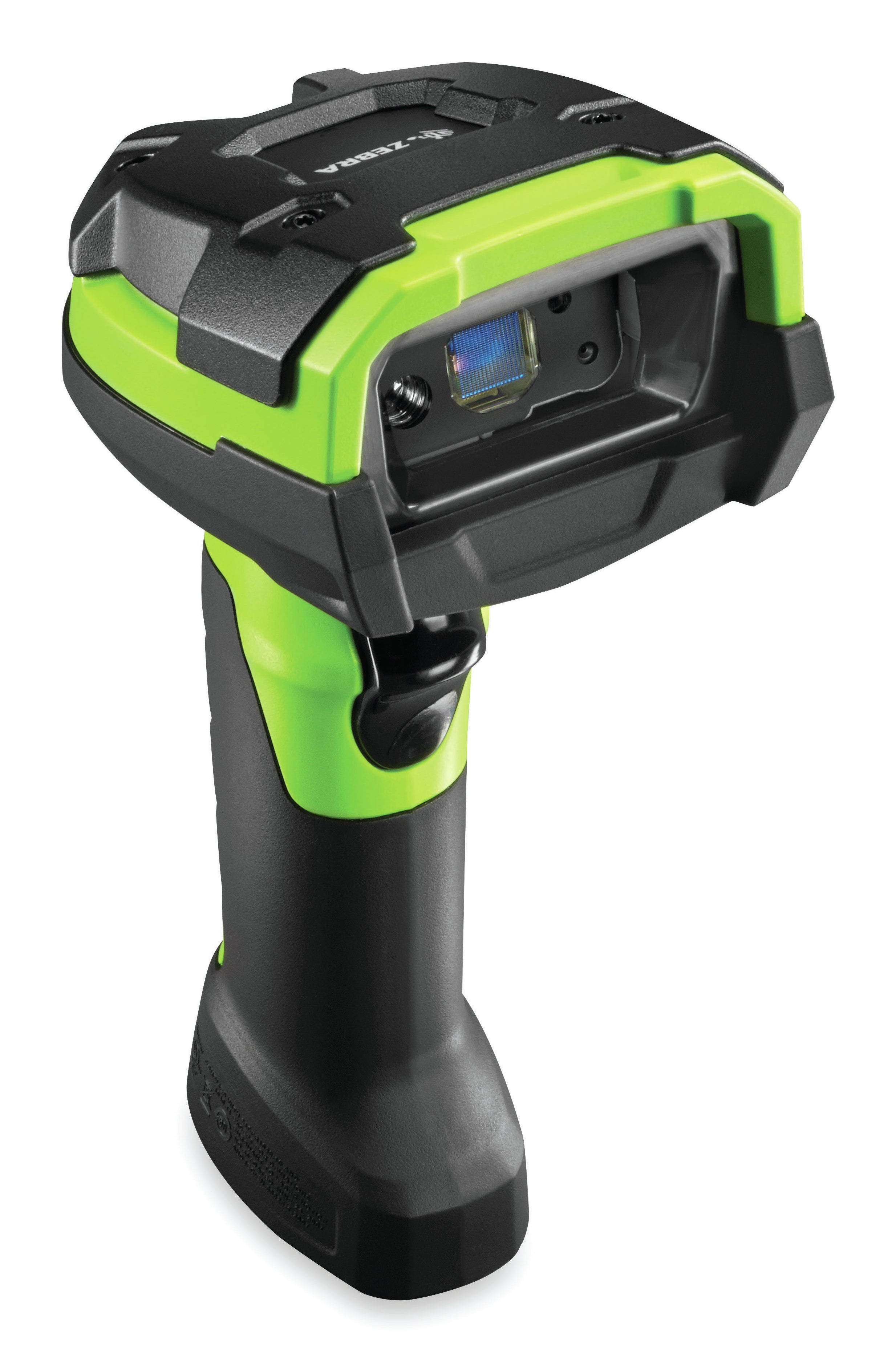

Zebra DS3608-SR Industrial Barcode Scanner, Corded, 1D/2D Standard Range, Up to 1.5m Read Distance, Rugged, Vibrator Motor, USB Included

UNSTOPPABLE PERFORMANCE FOR STANDARD-RANGE 1D/2D BARCODE CAPTURE
As part of the Zebra 3600 Series of ultra-rugged scanners, the wired DS3608-SR and wireless DS3678-SR 1D/2D scanners, virtually indestructible, are ready for the world's toughest environments—the warehouse and manufacturing floor. Designed to capture virtually any barcode from near contact to 5 feet (1.5 m) away, these scanners include features that enable truly unstoppable performance, redefining scanner reliability and management simplicity. The result? The accurate, fast, and reliable scanning you need to take your product quality and customer service to new heights.

SUPERIOR PERFORMANCE
You'll enjoy the ultimate in scanning performance—no argument. Workers can scan virtually any 1D or 2D barcode, regardless of its condition, as fast as they pull the trigger. With a 30 percent greater operating range, it's easy to capture barcodes that are further away. Even if barcodes are under shrinkwrap or are damaged, dirty, or poorly printed, there's no problem—this intelligent scanner can handle it all.

ULTRA-RUGGED DESIGN
The manufacturing floor is extremely demanding—and the cost of unexpected production line downtime is astronomical. That's why we created a new product category—the ultra-rugged scanner. The wired and wireless models are the only scanners in this category that are dust and spray-proof and waterproof in accordance with IP67, with an IP65 sealed cradle in a complete, highly durable wireless solution.

UNMATCHED MANAGEABILITY
With our best-in-class complementary tools, managing these scanners couldn't be easier. Remotely, you can configure and update scanners, format data correctly for immediate transmission to business applications, monitor battery statistics for wireless models, and more.

Technical Specifications

General Features
Brand	Zebra
Item	Industrial Scanner
Type	Wired industrial scanner, standard range
Scanning Technology	1D/2D Imager with PRZM Intelligent Imaging
Sensor Resolution	1280 × 800 pixels
Read Range	Up to 1.5 m (5 ft)
Scan Speed	More than 100,000 scans per charge (wireless model)
Reading Range (Code 128)	From 1.3 cm to 71 cm (depending on symbology and resolution)
Interface	USB (includes CBA-U46-S07ZAR cable), RS232, keyboard wedge
Symbology Compatibility	1D, 2D, PDF417, QR, DataMatrix, Aztec, Digimarc, etc.
User Indicators	LED, beeper, vibration, direct decode indicator
MultiCode Mode	Reads up to 20 codes simultaneously
Code Selection Mode	Selection from code lists (Picklist mode)
Industrial Compatibility	EtherNet/IP, Profinet, Modbus TCP, TCP/IP
Rugged Design	IP65/IP68, resistant to 3m (10ft) drops and 7500 tumbles
Operating Temperature	-30°C to 50°C (wired)
Humidity	5–95% non-condensing
ESD Protection	Up to ±25 kV air discharge
Color	Industrial Green
Dimensions (wired)	18.5 × 7.6 × 13.2 cm
Weight (wired)	305 g
Compatible Utilities	123Scan, SMS, Network Connect, ScanSpeed Analytics
Advanced Features	Label Parse+, AutoConfig, Virtual Tether, IUID support
Warranty	3 years (scanner and cradle), 1 year (battery)
