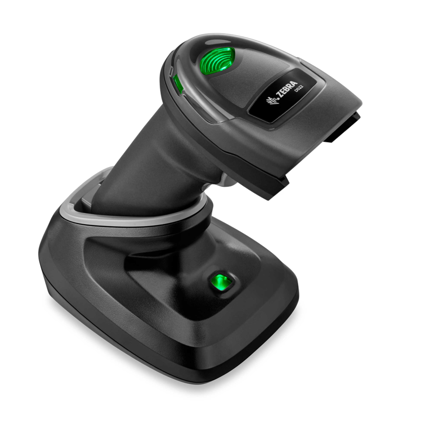

Zebra Wireless DS2278-SR 1D/2D Standard Imager Scanner Includes USB Cable, Cradle and Battery

$ 4,128.00

Ask a question

Barcode: N/A
Sku: DS2278-SR7U2100PRW/S
Type: Points of Sale

Garantizamos un pago seguro:

Technical Specifications General Features Brand Zebra Item Scanner Model DS2278-SR7U2100PRW/S Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX, RS485 Keyboard Compatibility Supports over 90 international keyboards Indicators Decode LED, Status...

Características del producto

Technical Specifications

General Features
Brand	Zebra
Item	Scanner
Model	DS2278-SR7U2100PRW/S
Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX, RS485
Keyboard Compatibility	Supports over 90 international keyboards
Indicators	Decode LED, Status LED, adjustable tones and volume
Motion Tolerance	Up to 5 in./13 cm per second for 13 mil UPC
Swipe Speed	Up to 30.0 in./76.2 cm per second
Aiming Pattern	Linear amber LED
Illumination	(2) 645 nm red LEDs
Field of View	32.8° H × 24.8° V nominal
Image Sensor	640 × 480 pixels
Minimum Contrast	25% minimum
Decode Range	65° ±, 65° ±, 360°
Minimum Element Limits	1D: 5 mil; 2D depends on code (per chart)
Input Voltage Range	4.5 to 5.5 VDC (host), 4.5 to 5.5 VDC (cradle)
1D Decode Capabilities	Code 39, Code 128, Code 93, Codabar/NW7, I 2 of 5, MSI, Plessey, UPC/EAN, RSS, GS1 Databar, Base 32
2D Decode Capabilities	PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, postal codes
Radio / Connectivity	Standard Bluetooth 4.0, HID, long range up to 10 m
Battery Capacity	2400 mAh Li-ion battery
Scans Per Charge	110,000 scans at 60 scans/min, 50,000 scans at 10 scans/min
Continuous Operating Time	84 hours
Charging Time (scanner in cradle)	Partial charge: 14 hours / Full charge: 17 hours
USB 15W Charging Time	Partial charge: 1.5 h / Full: 3 h
USB BC 1.2 Charging Time	Partial charge: 4 h / Full: 7 h
Operating Temperature	32 °F to 122 °F / 0 °C to 50 °C
Storage Temperature	-40 °F to 158 °F / -40 °C to 70 °C
Humidity	5% to 95% non-condensing
Drop Resistance	1.5 m onto concrete
Tumble Resistance	250 tumbles from 0.5 m
IP Rating	IP52
ESD Specification	± 15 kV air, ± 8 kV contact (scanner); ± 8 kV air / ± 4 kV contact (cradle)
Included Accessories	CR2278 cradle, Micro USB cable
