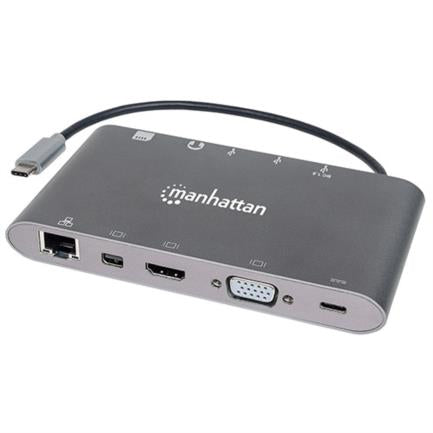

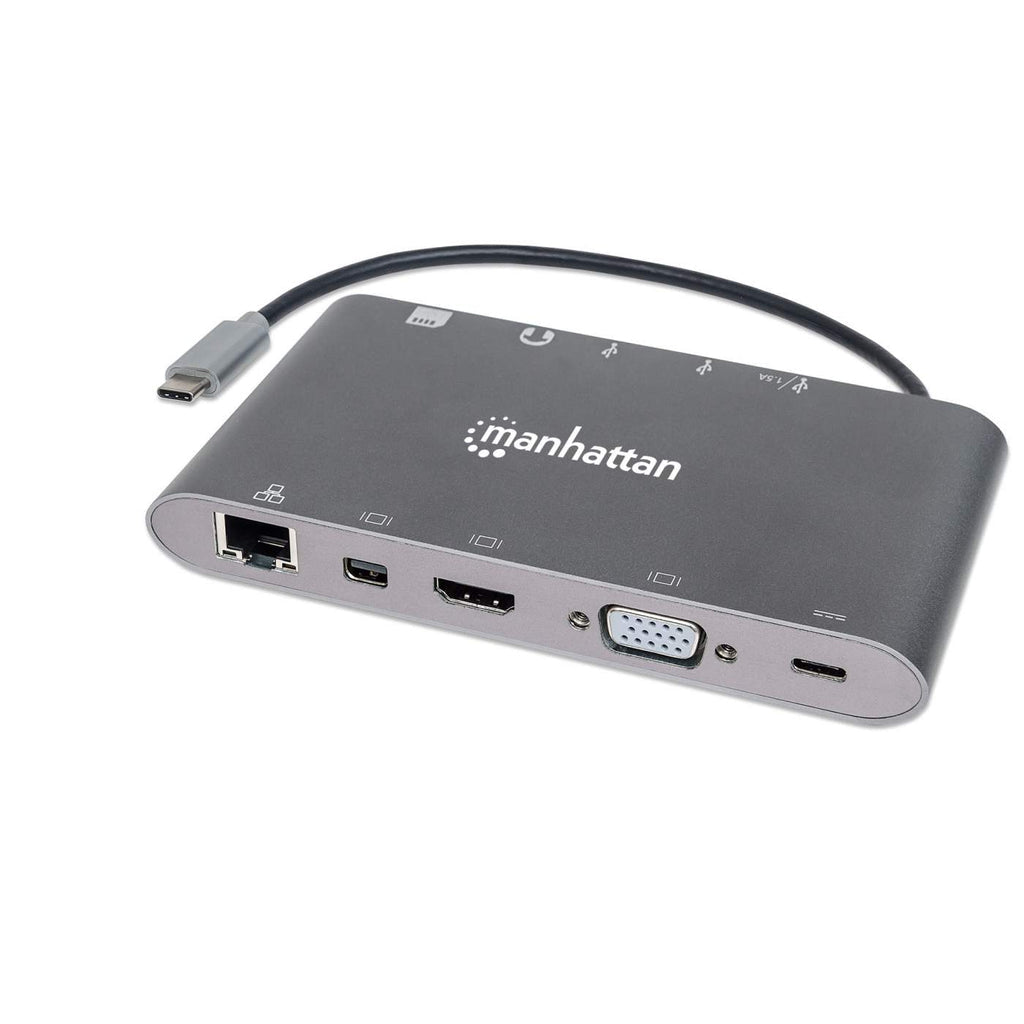

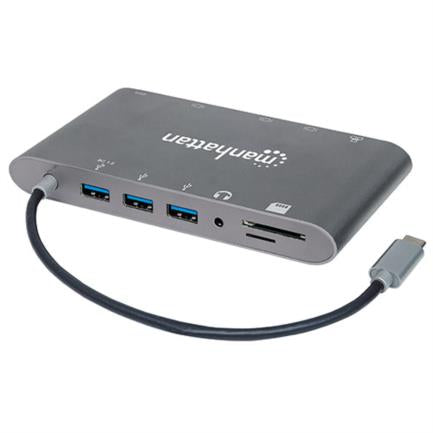

Manhattan USB-C to HDMI/DPmini/SVGA/RJ45/3.5mm Super Speed Gray Docking Station

Easily connect a USB-C device to an HDMI, Mini DP or VGA display, USB peripherals, network, and SD memory card. Manhattan's SuperSpeed 7-in-1 USB-C Docking Station establishes a fast, easy and convenient link between newer USB-C equipped media sources (computers, tablets, smartphones, etc.) and HDMI, Mini DP, or VGA displays (monitors, projectors, etc.) in either mirror or extended-display mode. Create a mini workstation by adding any USB 3.0 peripherals (such as a mouse, keyboard, hub, external memory device, etc.) with integrated USB-A ports, a Gigabit network connection, a 3.5 mm stereo jack and SD and Micro SD card readers, while charging the device through the USB-C port.

Easily connect a USB-C device to an HDMI, Mini DP or VGA display, USB peripherals, network, and SD memory card. Manhattan's SuperSpeed 7-in-1 USB-C Docking Station establishes a fast, easy and convenient link between newer USB-C equipped media sources (computers, tablets, smartphones, etc.) and HDMI, Mini DP, or VGA displays (monitors, projectors, etc.) in either mirror or extended-display mode. Create a mini workstation by adding any USB 3.0 peripherals (such as a mouse, keyboard, hub, external memory device, etc.) with integrated USB-A ports, a Gigabit network connection, a 3.5 mm stereo jack and SD and Micro SD card readers, while charging the device through the USB-C port. Manhattan's SuperSpeed 7-in-1 USB-C Docking Station is easy and quick to install. No complicated setup or configuration is required to enhance the functionality of your USB-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces neat and tidy.

Technical Specifications

General Features
Brand	Manhattan
Item	Docking Station
Color	Gray
Standards and Certifications	USB 3.1, HDMI, HDCP 1.4, CE, FCC, RoHS2, WEEE
Video Resolution	640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K
Ports	USB-A: 5 Gbps
Supports	Flash cards: SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile, SD, SDHC and SDXC; up to 128 GB
Transfer Speed	Up to 90 Mbps
Cable Gauge	24 AWG
Powered	by bus
Power port:	USB-C PD 60 W (20 V at 3 A)
USB-A charging	10 W (5 V at 2 A)
One BC 1.2 port	7.5 W (5 V at 1.5 A)
Two shared ports:	5 W (5 V at 1 A)
Withstanding voltage:	300 V DC
Insulation Resistance	10 MOhm
Conductive Resistance	5 Ohm
Inputs	1 USB Type-C 24-pin input, male
Outputs	1 HDMI 19-pin input, female, 1 Mini DisplayPort 20-pin input, female, 1 VGA 15-pin input, female, 1 10/100/1000 Mbps RJ45 input, female, 3 USB Type-A 4-pin inputs, female, 1 SD memory slot, 1 Mini SD memory slot, 1 3.5mm Stereo input, female, 1 USB-C 24-pin input, Power Delivery, female
Operating Temperature	0 – 45°C (32 – 113°F)
Storage operation:	-10 – 70°C (14 – 158°F)
Humidity (non-condensing):	10 - 90%
System Requirements	Windows XP/Vista/7/8.1/10 or Linux or Mac 10.7.1 or higher
Cable Length:	20 cm (8 inches)
Weight	198 g
