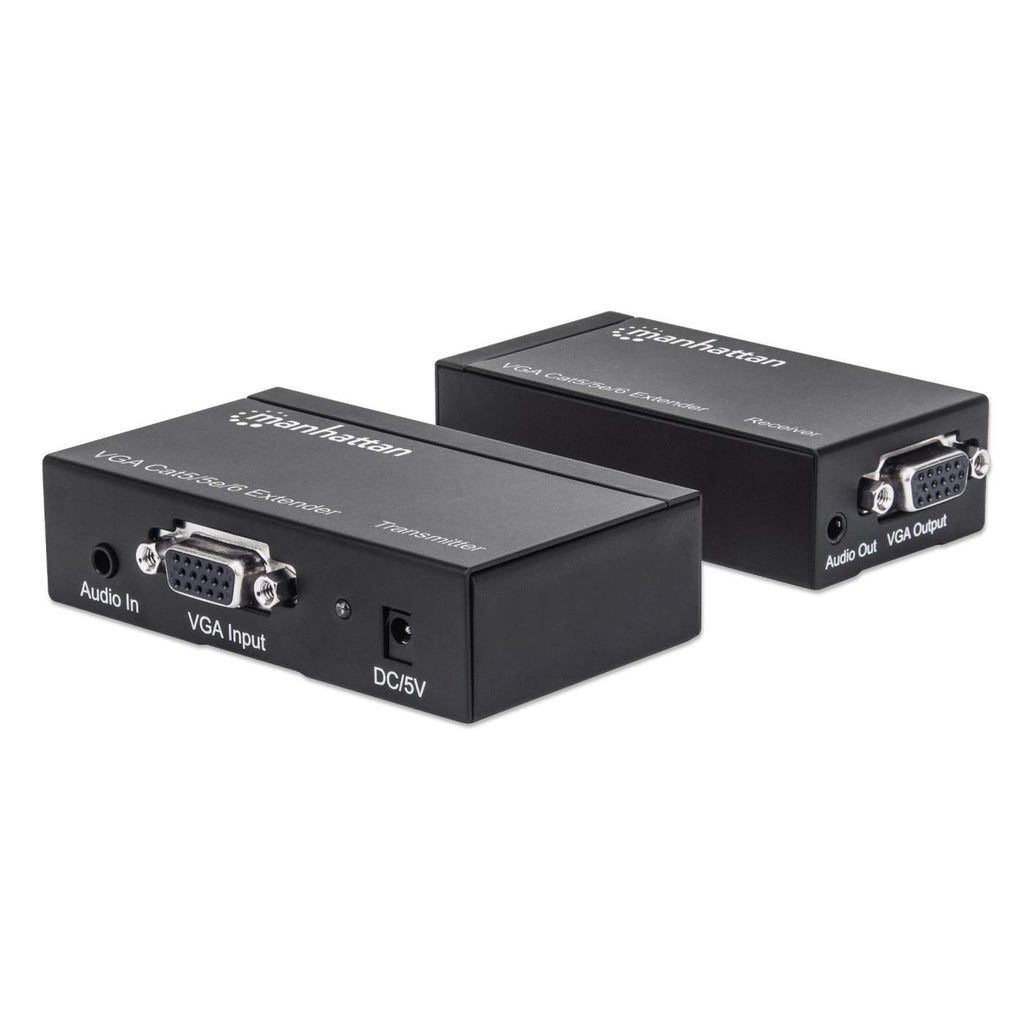

Manhattan Video SVGA+Audio Extender Via Cat 5/6 30m Black

Easily distribute a VGA signal with audio to another location. The MANHATTAN Cat5/5e/6 VGA Extender extends the length of the VGA signal with audio from a single source to various locations using Cat5/5e/6 cables. Flexible solution for many A/V applications. Ideal for exhibitions, classrooms, home theaters, conference rooms, business and retail applications. The Cat5/5e/6 VGA Extender allows monitors and their speakers to be remotely located up to 300 meters from the source computer. Manual gain and peak adjustments allow fine tuning of images for optimal clarity. Easy to install and ready to use. When combined with Cat5e or Cat6 twisted pair cables, the MANHATTAN Cat5/5e/6 VGA Extender provides additional protection against external interference over long distances without signal degradation. Quality construction and easy installation. Quickly connect Cat5e or Cat6 cables (not included) and power the sources

Easily distribute a VGA signal with audio to another location. The MANHATTAN Cat5/5e/6 VGA Extender extends the length of the VGA signal with audio from a single source to various locations using Cat5/5e/6 cables. Flexible solution for many A/V applications. Ideal for exhibitions, classrooms, home theaters, conference rooms, business and retail applications. The Cat5/5e/6 VGA Extender allows monitors and their speakers to be remotely located up to 300 meters from the source computer. Manual gain and peak adjustments allow fine tuning of images for optimal clarity. Easy to install and ready to use. When combined with Cat5e or Cat6 twisted pair cables, the MANHATTAN Cat5/5e/6 VGA Extender provides additional protection against external interference over long distances without signal degradation. Quality construction and easy installation. Quickly connect Cat5e or Cat6 cables (not included) and power the power supplies without the need for hardware or software configuration for a reliable signal distribution solution.

Technical Specifications

General Features
Brand	Manhattan
Item	Extender
Color	Black
Standards and certifications	CE, FCC
Extends the range of transmissions	up to 300 m
Supports resolutions	up to 1920 x 1200 and VGA, SVGA, and Multisync signals
Manual adjustments	RGB and brightness (on receiver)
Power adapters	2 x 5 V DC / 2 A included
Connections (receiver)	1 HD15 female (output), 1 RJ45 female (input), 2 x 3.5 mm stereo jacks (audio output), 1 x 5 V DC power connector
Connections (on transmitter)	1 HD15 female (output), 1 HD15 male (input), 2 x 3.5 mm stereo ports (input/output), 1 RJ45 (output), 1 x 5 V DC power connector
Signal type	VGA
Input voltage:	0.5 V p-p / 2.0 V p-p (minimum/maximum)
I/O Impedance	75 Ohms
Resolution and range	640 x 480 300 m, 800 x 600 300 m, 1024 x 768 200 m, 1280 x 720 200 m, 1280 x 768 200 m, 1280 x 960 200 m, 1280 x 1024 200 m, 1600 x 900 100 m, 1600 x 1200 100 m, 1920 x 1080 100 m, 1920 x 1200 10 m
Receiver dimensions	8.15 cm x 4.3 cm x 2.3 cm
Receiver weight:	108 g
Transmitter dimensions	100 x 65 x 25 mm
Transmitter weight:	208 g
