Manhattan HDMI KVM Video Extender 120M via Cat6 1080p

HDMI over IP Extender with KVM Function: Remote Access via HDMI Display, USB Keyboard and Mouse

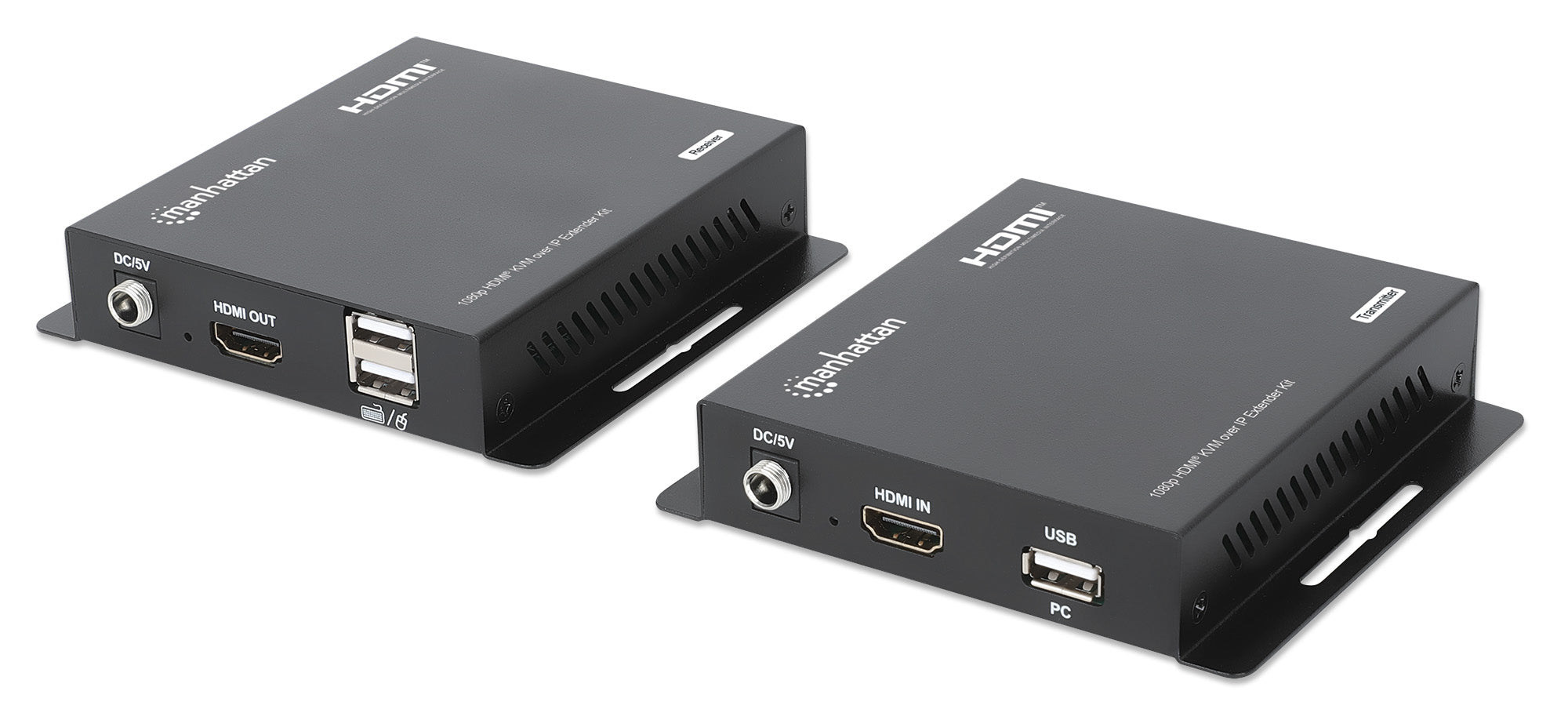

The Manhattan 1080p HDMI over IP KVM Extender Kit allows you to access any computer (or other HDMI source) from a keyboard, mouse and display up to 120 m (394 ft.) away. You can make a direct connection via a single RJ45 Ethernet cable (Cat6 or higher recommended for maximum range and performance) or connect it to a switch on your existing network to overcome distance limitations.

Versatile Connectivity Options

Use this HDMI over IP Extender with KVM function as a regular HDMI extender or as an HDMI KVM switch. As an extender, the HDMI and Ethernet ports can send up to 1080p @ 60 Hz (1920 × 1080) HDMI from your NVR/DVR, Blu-ray player, set-top box or game console to a remote display. As a full-control HDMI KVM switch, both modules also feature USB-A ports that connect your PC, laptop or MacBook® to the transmitter and your keyboard/mouse to the receiver. Since the HDMI KVM extender is operating system independent, you can use any computer you choose as your remote workstation. This flexibility makes it ideal for POS (point-of-sale) systems in stores and digital cash counters with touchscreens. The integrated mounting brackets on both modules allow you to neatly install its sturdy metal housing on the wall or ceiling.

Technical Specifications

General Features
Brand	Manhattan
Item	KVM HDMI Extender Kit
Model	208413
Supported resolutions	480p, 720p, 1080i, 1080p (Cat6 Ethernet cable or higher recommended)
Maximum video bandwidth	1.65 Gbps / 165 MHz per channel (4.95 Gbps total)
HDMI receiver	1 HDMI 19-pin female
USB receiver	1 USB-A 4-pin female
Receiver power input	1 DC 5 V input
Receiver network port	1 RJ45 female
HDMI transmitter	1 HDMI 19-pin female
USB transmitter	1 USB-A 4-pin female
Transmitter power input	1 DC 5 V input
Transmitter network port	1 RJ45 female
Buttons included	Reset and pairing button on both modules
LED indicators	Power, Link/Activity, USB connection
Power included	Two DC power adapters, 1.2 m (4 ft) cables
Adapter input	100 – 240 V AC, 50 – 60 Hz, 0.4 A
Adapter output	5.0 V DC, 1.0 A
Maximum power consumption	3.5 W (transmitter), 2.0 W (receiver)
Dimensions per module	112 × 104 × 23 mm (4.41 × 4.09 × 0.91 in)
Weight per module	430 g
Total weight	870 g (1.85 lbs.)
Operating temperature	0 – 50 °C (32 – 122 °F)
Storage temperature	-20 – 60 °C (-4 – 140 °F)
Humidity (non-condensing)	5 – 90 %
Package contents	1080p HDMI over IP Extender Kit, 2 power adapters, 2 × 1.2 m (HDMI) cables
