Manhattan HDMI Over Ethernet 50m Cat6 Cable Video Extender

Easily extend a high-definition signal over an Ethernet cable. The MANHATTAN HDMI over Ethernet Extender Kit is the ideal solution for connecting virtually any HDMI source (PlayStation, Xbox, Blu-Ray player, digital receiver, digital recorder, etc.) to an HD monitor or projector up to 50m (164 ft) via a Cat6 Ethernet cable. These powered extenders provide reliable 1080p resolution and multi-channel sound transmission over longer distances than HDMI cables alone can support. In addition, the transmitter module has an additional HDMI output port, allowing a second monitor to be placed in a control room or for use as a second display. For additional control, the MANHATTAN HDMI over Ethernet Extender Kit includes a wideband IR receiver for remote control from the source device. Flexible solutions for many audio and video applications. Ideal for exhibitions, classrooms, home theaters, sa

Easily extend a high-definition signal over a single Ethernet cable

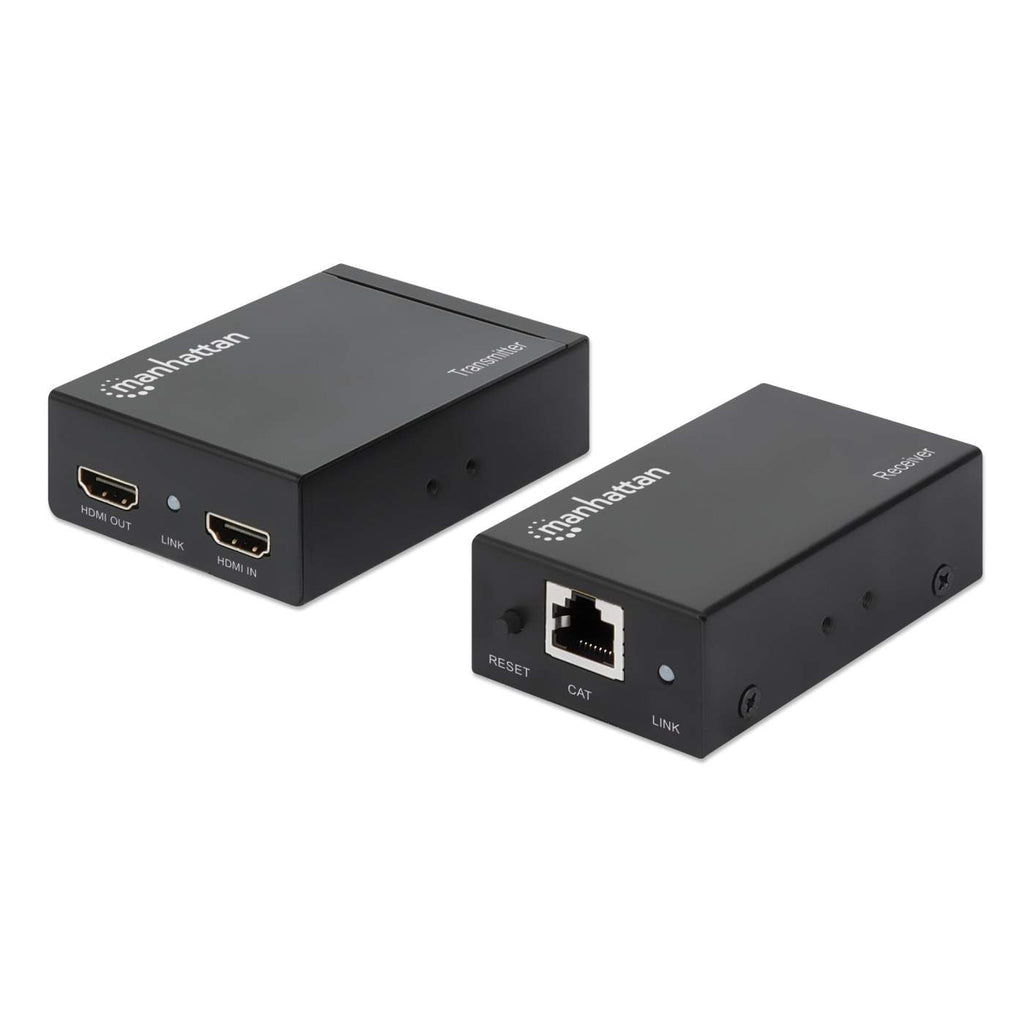

The Manhattan 1080p HDMI over Ethernet Extender Kit is the ideal solution for connecting virtually any HDMI source (PlayStation, Xbox, Blu-ray player, satellite receiver, digital recorder, etc.) to an HD display or projector up to 50 m (164 ft.) from its source via a single Cat6 Ethernet cable. These powered HDMI extenders provide reliable transmission of 1080p resolution video and multi-channel audio over longer distances than HDMI cables alone allow. In addition, the transmitter module has an additional HDMI output port, allowing a second monitor to be placed in a control cabinet or to be routed to a second display. For additional control, the Manhattan 1080p HDMI over Ethernet Extender Kit includes a wideband IR blaster and receiver for remote control of the source device.

Flexible Solution for Many A/V Applications

Ideal for trade shows, classrooms, home theater, conference rooms, business offices and retail applications, the Manhattan 1080p HDMI over Ethernet Extender Kit boosts and extends a 1080p signal up to 50 m (164 ft) for convenient display or projector placement. Ethernet cabling — Cat6 UTP, SSTP or SFTP (cables not included) — is less expensive and easier to install than HDMI cabling and in-line signal repeaters, and, when used with our extender kit, delivers a crystal-clear, sharp and vivid picture at longer distances.

Technical Specifications

General Features
Brand	Manhattan
Item	Video Extender
Standards and Certifications	• HDCP • DVI 1.0 • CTS 1.2 • CE • FCC • RoHS2
General	• Cat6 cable 1080p at 50 m (165 ft.) • Cat6 cable 720p at 70 m (230 ft.) • Cat6 cable 480p at 100 m (300 ft.)
Power:	5 VDC / 1 A; cable, 1.4 m (4.5 ft.)
Connections	• 2 HDMI female (transmitter) • 1 HDMI female (receiver) • 1 RJ45 female (transmitter/receiver) • 1 5V/DC power female (transmitter/receiver) • 1 3.5mm/ IR female (transmitter/receiver)
Video input signal:	0.5 – 1.0 V p-p
DDC input signal:	5 V p-p (TTL)
Maximum single link range	1920x1200/60 Hz, 1080p
Video output:	HDCP 1.2, DVI 1.0
Frequency	2.25 Gbps / 225 MHz
Video resolutions	• VGA: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200 • DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
Dimensions	8.1 cm x 6.2 cm x 2.6 cm
Weight	0.583 kg
