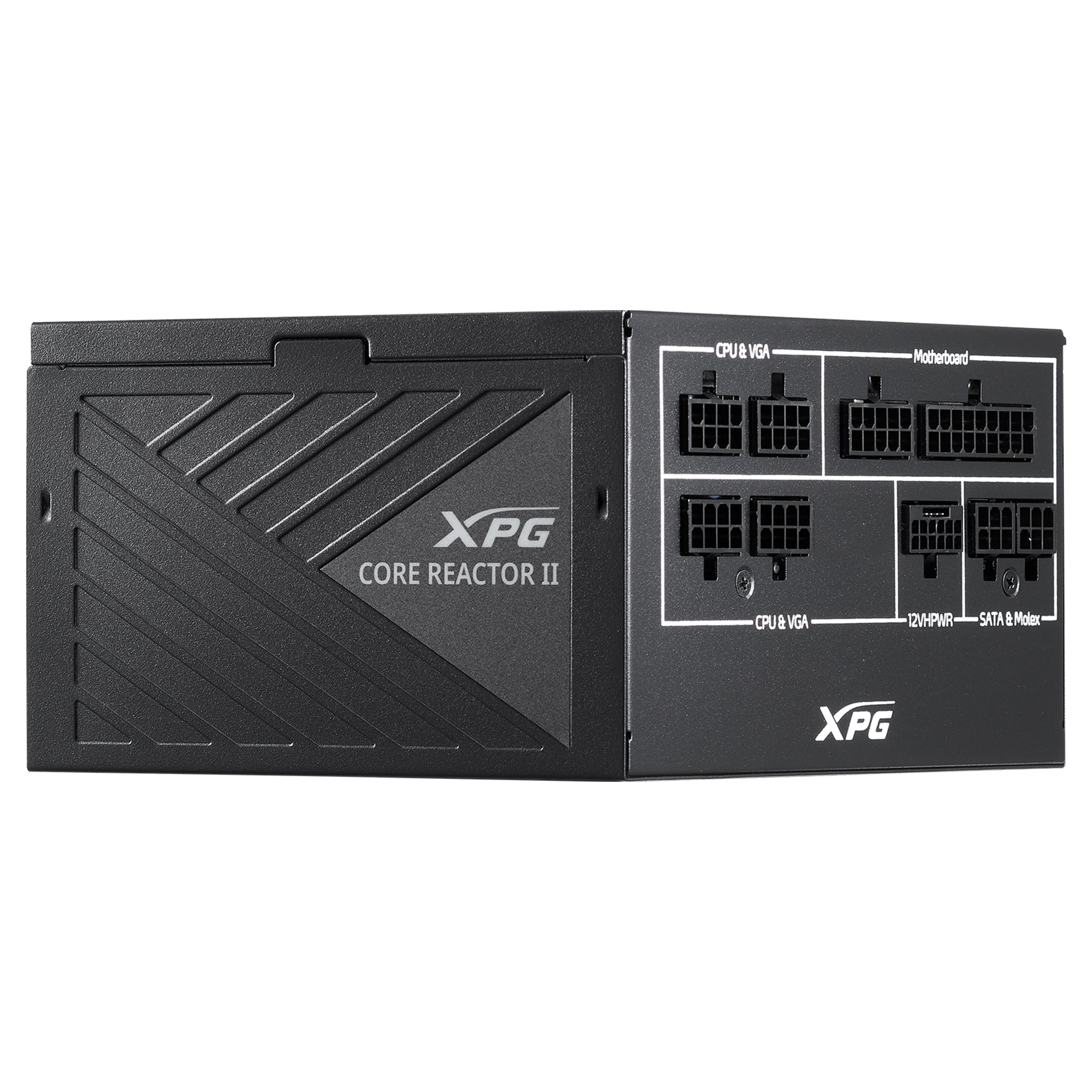

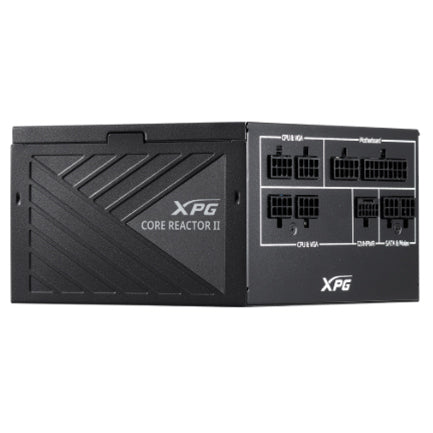

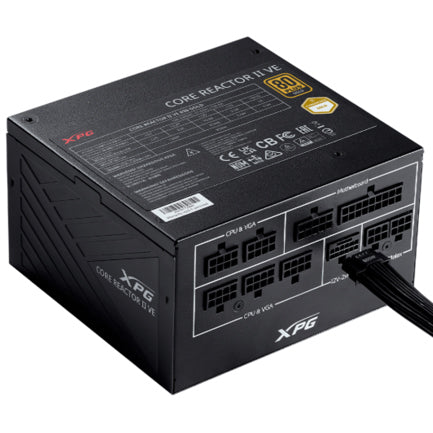

650W XPG Core Reactor II 80 Plus Gold ATX 24 Pin Power Supply

CORE REACTOR II
UPGRADE YOUR CORE, BOOST YOUR PERFORMANCE
CORE REACTOR II is a high-performance power supply unit designed to be compatible with ATX 3.0 & ATX 3.1 with a modular cable design and 80 PLUS GOLD certification. These PSUs are ideal for high-performance environments such as servers or workstations, where a lot of power is needed.

Ready for the Next Generation - ATX 3.0 & ATX 3.1 Compatible
CORE REACTOR II series PSUs comply with the Intel ATX 3.0 & ATX 3.1 design guide specifications and include a 12VHPWR connector. By upgrading to an ATX 3.0 & ATX 3.1 compatible power supply, you'll be fully equipped for the next generation of high-performance components. Indispensable for the modern gamer, creator, or AI developer. Upgrade to an ATX 3.0 & ATX 3.1 power supply, the new standard in PC hardware.

GOLD Certified Efficiency
CORE REACTOR II units have received 80 PLUS GOLD certifications for their efficiency, reaching up to 91.40% (115V) efficiency at 50% load. It is available in 1200W, 1000W, 850W, 750W, and 650W models for different needs and scenarios. It is the perfect PSU for mid-to-high-end components, including the latest CPUs and GPUs.

Smart Curved Fan Design
The smart curved fan allows for quiet operation, even at full load. Fan operation is improved and extended by starting at low RPMs, increasing the lifespan of the power supply.

Premium 105°C Japanese Capacitors
CORE REACTOR II features high-grade 105°C Japanese capacitors, ensuring exceptional PSU stability and reliability for many years of dependable performance.

Eight Industrial Protections with a Ten-Year Warranty
CORE REACTOR II is protected by eight industrial-grade protection mechanisms and backed by a ten-year warranty, ensuring the safety and stability of both the unit and the system.

MAXIMUM PERFORMANCE AND RELIABILITY
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to allow for up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability and preventing failures during intense workloads such as gaming, rendering, and data processing.

Technical Specifications

General Features
Brand	XPG
Item	Power Supply
Power	650 W
Certification	80 Plus Gold
Form Factor	ATX
Cabling Type	Fully Modular
Input Voltage	100–240 V
Input Frequency	47–63 Hz
Input Current	10–5 A
Fan	120 mm
Bearing Type	FDB (Fluid Dynamic Bearing)
Noise Level	11.2 dB
Motherboard Connector	24 pin ATX
CPU Connector	4+4 pin / 8 pin EPS
PCIe Connectors	6+2 pin
Molex Connectors	4
MTBF	100,000 hours
Certifications	CB, TUV, cTUVus, CCC, CE, FCC, BSMI, RCM, EAC
Color	Black
