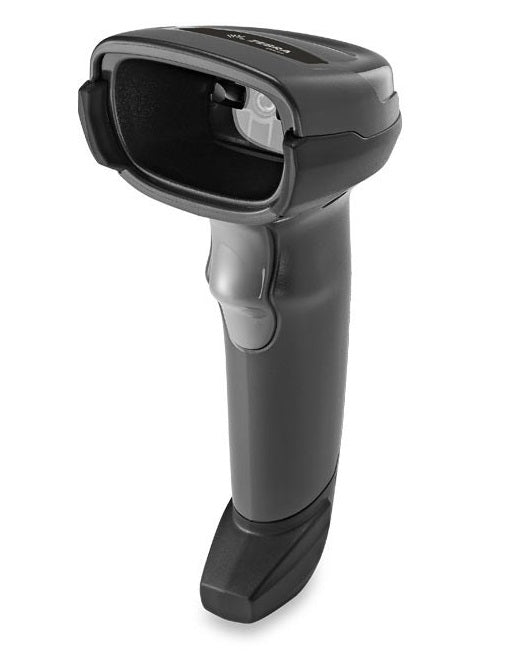

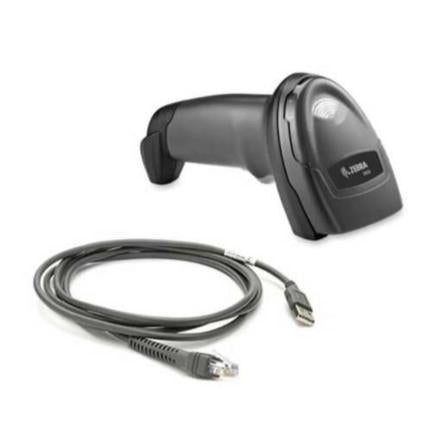

Zebra DS2208 Standard Range 1D/2D USB Corded Imager

The DS2200 series offers all the features you need for high-quality scanning to your tablet-based point-of-sale (POS) system. The Micro USB cable provides a low-cost charging alternative compared to a charging cradle.

AFFORDABLE PRICE AND SIMPLE OPERATION
2D barcodes have arrived at your point of sale, on items your customers purchase as well as on printed and electronic coupons and loyalty cards.

Your 1D scanner cannot read the new 2D codes, which causes exceptions that slow down checkout and frustrate customers at such a crucial moment as the last point of contact with your establishment.

But with the DS2200 Series, you can scan everything. You will have an affordable 1D/2D imager that sacrifices neither performance nor features for a lower price. In addition, you can choose the model that best suits your POS needs—the wired DS2208 model or the wireless DS2278 model. DS2200 Series: the affordable price your budget demands with the deployment, ease of use, and management simplicity your business needs.

Technical Specifications

General Characteristics
Brand	Zebra
Item	Barcode reader
Model	DS2208
Motion tolerance	Up to 5 in./13 cm. per second for 13 mil UPC
Swipe speed	Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light source	Aiming Pattern: Linear 624nm Amber LED
Reader field of view	32.8° H x 24.8° V Nominal
Image sensor	640 x 480 pixels
Pitch/Skew/Roll Tolerance	+/- 65°; +/- 65°; 0-360°
Battery	2400 mAh Li-Ion battery
Operating temperature	32.0° to 122.0° F/0.0° to 50.0° C
Storage temperature	-40.0° to 158.0° F/-40.0° to 70.0° C
Humidity	5% to 95% relative humidity, non-condensing
Dimensions	17.5 cm H x 6.6 cm W x 9.9 cm D
Weight	161.6 g
