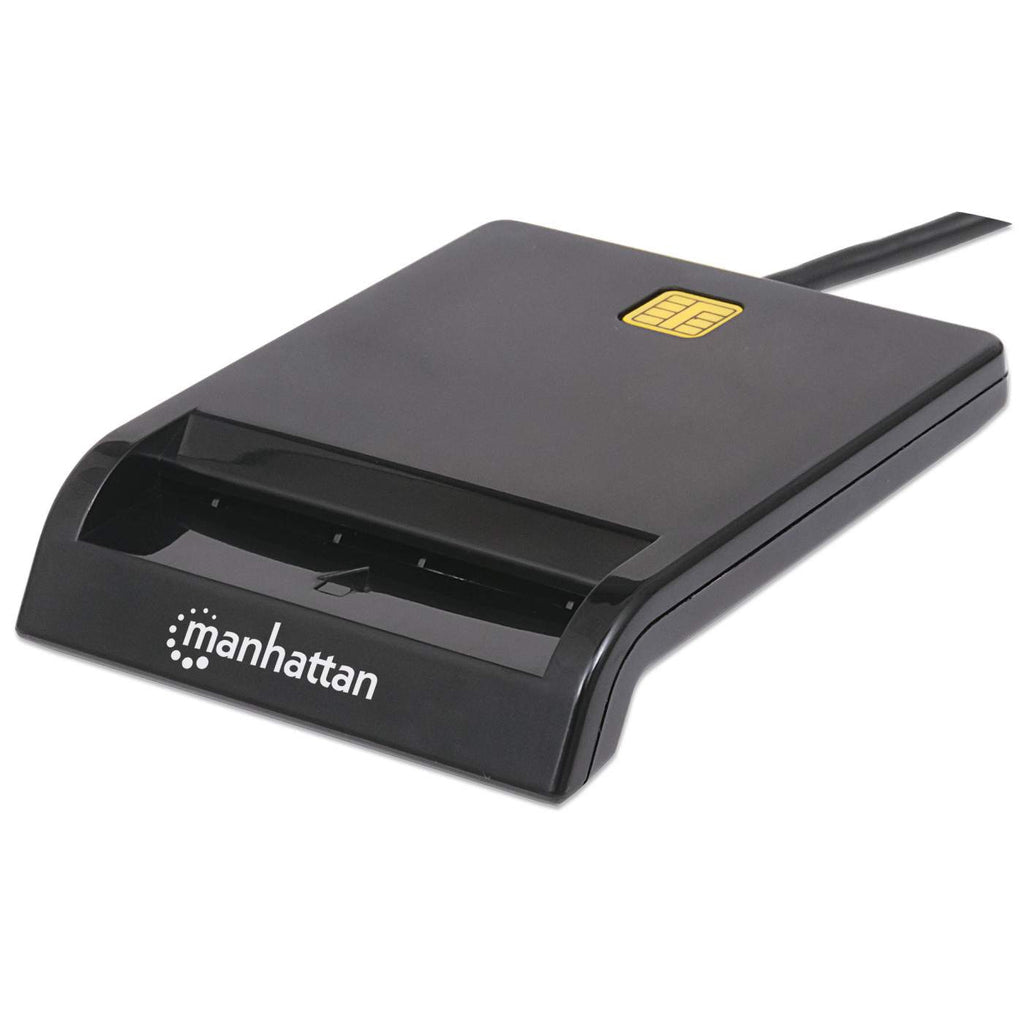

Manhattan Smart Card Reader, External, Contact, USB, Black

Smart card technology finds multiple applications in security and access control, financial transactions, medical records, loyalty programs, vending machines, toll systems, network access for businesses or users, and more applications that require a secure exchange of information. Smart cards have a contact area (or "chip") with several contacts that, when inserted into a MANHATTAN Smart Card Reader, can authorize the user to securely transfer information between the card and the equipment. Smart cards are widely used in Europe and Asia, and their use is growing in North and South America, replacing less secure and less profitable barcode readers and magnetic stripe cards, allowing flexible, standardized, and tamper-proof transactions with strong accreditation and minimal human intervention. Quick and easy installation.

Enhances data and access protection

Smart card technology finds popular applications in security and access control, financial transactions, medical records, loyalty programs, toll and vending, enterprise or single-user network login, and other more that require secure information exchanges. Contact smart cards have a contact zone, or "chip," with several contact pads that, when inserted into a Manhattan Smart Card Reader, can authenticate the user and securely transfer information between the card and the host computer. Smart cards are widely used in Europe and Asia, and their use is growing in North and South America. They replace less secure and reliable barcode ID and magnetic stripe cards to provide flexible, standard transactions and strong, tamper-resistant authentication with minimal human intervention.

Quick and easy installation

Ideal for desktops and laptops without built-in readers, the Manhattan Smart Card Reader easily installs using any USB port. Plug and play compatible with Windows and Mac, it requires no external power supply or cables, just a simple USB connection.

Technical Specifications

General Features
Brand	Manhattan
Item	Card Reader
Color	Black
Standards and certifications	• FCC • CE • RoHS2 • USB 2.0 • CCID
Integrated USB-A cable	105 cm
CPU cards:	Supports ISO 7816-1, 2, 3, 4 (supports T=0 and T=1 protocols), PC/SC version 1.0/2.0 standard and EMV 4.1
Memory cards	2-line synchronous, 3-line, SLE4418, 4428, 4432, AT885C1608, 45D041 and I2C interface
Compatibility	with PC/SC 1.0/2.0
Indicator	Power and activity LED
Power	voltage, USB 5 V + 5 %; consumption, 60 mA maximum
Durability, cycles:	IC card, 200,000
Temperatures	operating, 0 – 50°C; storage, -35 – 70°C
System requirements	• PC or Mac system enabled with PC on PC or Mac • Compatible with Windows XP/Vista/7/8.1, Mac or Linux
Dimensions	8.5 cm x 6.5 cm x 1.5 cm
Weight	60 g (0.06 oz.)
