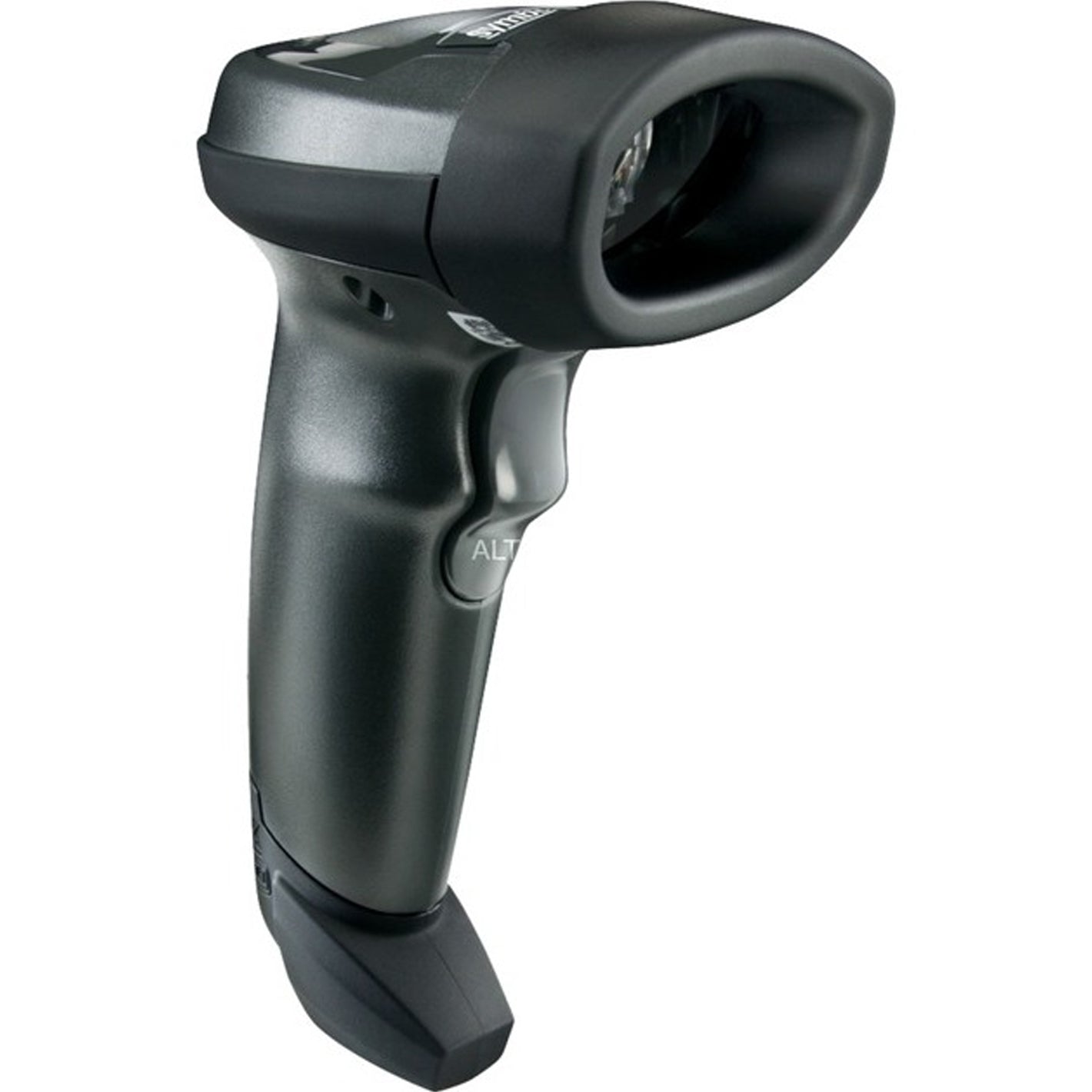

Zebra LI2208 Linear Imager 1D/USB/Black/Stand

Whether your workers are scanning 1D barcodes printed on paper labels or electronic barcodes displayed on a mobile phone, tablet or computer screen, the best-in-class LI2208 linear imager delivers unparalleled performance, every time. With the next generation 1D scanning LI2208, you get the same reliability and ergonomics as our most popular scanner, the LS2208, with enhanced features that allow you to scan more 1D barcodes at a greater distance. From retail POS to shipping/receiving and hotel check-in, the LI2208 enables your workers to better meet your business needs.

Excellent 1D scanning performance
Delivers superior scanning speed and a wide range of data capture

Captures virtually all 1D barcodes on any surface, including mobile phone screens
Capture 1D barcodes printed on traditional paper labels or displayed on a mobile phone, tablet or computer screen

Industry-leading operating range
Reads 13 mil (100% UPC) barcodes from 1 in./2.54 cm to over 30 in./76.2 cm, as well as high-density codes and extended ranges for greater application flexibility

Patented single circuit board construction
Maximizes durability and reduces downtime by eliminating the most common points of failure

Compatible with 123Scan² and Scanner Management Service (SMS)
Significantly reduces management time and cost, from initial setup to daily management; SDK available for custom development

Superior motion and angular tolerance
Barcodes can be captured faster, and there is no need to pause during scans

Supports international keyboards
Supports more than 90 international keyboards, enabling easy deployment anywhere in the world

Withstands 100 consecutive drops to concrete and 1,000 consecutive tumbles from 1.64 ft./0.5 m
Ensures reliable operation despite inevitable daily drops to help maximize uptime

Flexible modes: handheld and presentation
The flexible neck Intellistand stand allows for presentation scanning and toggling between hands-free and handheld operation

Technical Specifications

General Features
Brand	Zebra
Item	Scanner
Scanner type	Wired 1D linear imager
Connectivity	USB
Color	Black
Scanning technology	Captures 1D barcodes printed on paper or displayed on mobile device screens
Reading range	13 mil UPC: from contact to 78.7 cm; 26 mil UPC: up to 140 cm
Scan speed	547 scans per second
Motion tolerance	Up to 63.5 cm per second
Scan angle	Horizontal 35°
Angular tolerance	±45° pitch, roll, and skew
Minimum resolution	3 mil
Light source	Class 1 LED (617 nm, amber)
Usage modes	Manual or hands-free with Intellistand base
Compatible host interface	USB, RS232, Keyboard Wedge, and IBM RS485
Keyboard compatibility	More than 90 international keyboards
Environmental protection	IP42 (dust and splash resistance)
Drop resistance	More than 100 drops from 1.5 m; survives 1.8 m drops to concrete
Tumble test	1,000 cycles (2,000 drops) in 0.5 m drum
Operating temperature	0 °C to 50 °C
Storage temperature	-40 °C to 70 °C
Operating humidity	5 % to 95 % non-condensing
Power supply	5VDC ±10%, <165 mA in use
Dimensions (H × W × D)	16 × 6.7 × 9.9 cm
Weight	140 g
Body material	Impact-resistant industrial plastic
Certifications	FCC, ICES, IEC 60601-1-2, UL 60950-1, RoHS
Warranty	5 years against manufacturing defects
Included accessories	Intellistand base with automatic detection
Recommended applications	Point of sale, warehouse, light manufacturing, event registration, and hospitality
