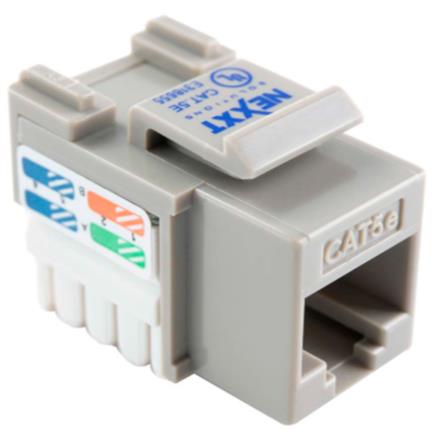

Nexxt Solutions Keystone Jack Cat5e 110 Type Unshielded Network Module Gray

This module is designed for high-speed networks and works with any wall plate or keystone mounting box. It complies with ANSI/TIA/EIA-568 C.2 specifications, allowing connections with 22 to 26 American Wire Gauge (AWG) conductors, and includes phosphor bronze contacts. Available in 8 vibrant colors to facilitate cable identification and organization.

Technical Specifications

General Features
Brand	Nexxt solutions
Item:	Unshielded module
Model	AW110NXT11
Connector features	Housing Material: ABS + PC, UL 94V-0 | RJ45 Contact Material and Finish: Phosphor bronze with 50+60 micro-inch nickel-plated contacts and gold plating no less than 3mm and 50 micro-inches | IDC Connector Housing: PC + 5%GF, UL 94V-2 | IDC Terminal Material and Finish: Phosphor bronze with gold-plated contacts no less than 50 micro-inches | Insertion Force: 900gm per 8 contacts | Average Cable Diameter: 7.7 kg between plug and connector | Operating Temperature: -10ºC to 60ºC (ISO/IEC 11801, ANSI/TIA/EIA-568-C.2)
Transmission characteristics:	Transmission speed: 100 Mbps | Bandwidth: 100 MHz
Certificates and standards:	International standards: ANSI/TIA/EIA-568-C.2, ISO/IEC 11801 | UL Certificate: 20080124 – E318655 DUXR.E318655 | ETL Certificate: 100227874CRT-001e Transmission features
Color:	Gray
Quantity per box:	1 unit
Warranty:	Limited lifetime
