Tripp Lite LX Platform SNMP Card Remote Cooling Management for Select Models

Converts select Tripp Lite air conditioners into network-manageable devices that can be accessed and controlled remotely 24/7.

24/7 Access and Control of Cooling Units Prevents Costly Site Visits
The SRCOOLNET2LX network interface module installs into select Tripp Lite cooling units, allowing you to monitor temperatures, receive alerts and control settings from remote locations. Compatible with SRCOOL2KWM, SRCOOL7KRM, SRCOOL18K, SRCOOL24K and SRCOOL33K portable air conditioning units, the SRCOOLNET2LX is easy to install and simple to operate and ideal for back offices, computer rooms, small server rooms and network wiring closets.

The Perfect Solution for After-Hours or Unsupervised Cooling Applications
The Java-free HTML5-based SRCOOLNET2LX allows full remote access for status monitoring, event notifications and device management via secure web browser, SNMP, SSH, Telnet or command line interfaces. The built-in LX Platform PowerAlert® Device Manager (PADM) provides a single interface to power on and off the connected AC, adjust fan speed, change its target temperature and switch to dehumidification mode, so excessive heat won't compromise your network equipment's performance and reliability. The SRCOOLNET2LX pairs with the AC to provide a reliable cooling solution that requires no onsite management.

Includes E2MT EnviroSense2 Environmental Sensor Module
The SRCOOLNET2LX comes with an E2MT module, which can be placed directly inside your rack. You don't need to be on the premises to check the temperature near your rack equipment or make any necessary adjustments. The E2MT module allows you to measure and monitor ambient temperature in your data center environment or control cooling by selecting a target temperature value to ensure specific network equipment stays cool during operation. The E2MT connects to the SRCOOLNETLX using the included 12-ft. (3.66 m) USB cable.

Easy to Set Up and Manage
The SRCOOLNET2LX inserts into the AC unit's front auxiliary SNMP slot. A user-supplied Ethernet patch cable connects the SRCOOLNET2LX's RJ45 port to an Ethernet network. The built-in LX Platform PowerAlert Device Manager interface provides a single screen for managing both the cooling unit and the E2MT module. You can update the firmware directly from the web interface.

TAA Compliant for GSA Schedule Purchases
The SRCOOLNET2LX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Typical Application
● Enables remote monitoring and management of cooling in back offices, computer rooms, small server rooms and network wiring closets
● Receive alerts, review activity logs and remotely control cooling parameters
● Monitor temperature in your data center or for specific network equipment

Introduction Bullets
● Recommended for 24/7 offsite access to and control of Tripp Lite air conditioners
● LX Platform network interface provides 24/7 access and control from anywhere
● Included E2MT module allows remote monitoring of ambient temperature conditions
● Easy to stay up to date with easily downloadable firmware
● TAA compliant for GSA Schedule purchases

System Requirements
● Tripp Lite SRCOOL2KWM, SRCOOL7KRM, SRCOOL18K, SRCOOL24K or SRCOOL33K

Package Includes

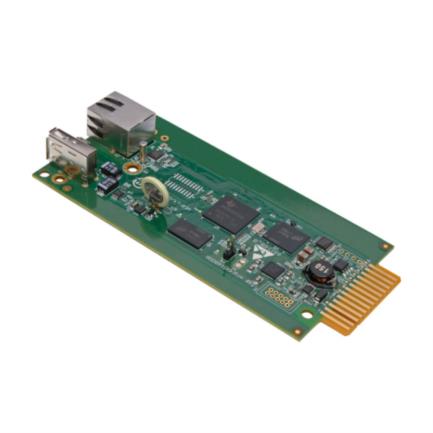

● SRCOOLNET2LX SNMP/Web Interface Module
● E2MT EnviroSense2 Environmental Sensor Module
● Micro-USB to USB-A cable, 12 ft. (3.66 m)
● MAC Address label
● Faceplate cover
● Owner's manuals

Technical Specs

General Features
Brand	Tripp Lite
Item	SNMP Card Module
Output Interface	RJ-45, USB 2.0
LED Indicators	Yes
Dimensions	14.73 cm x 7.62 cm x 5.79 cm
Weight	320 g
