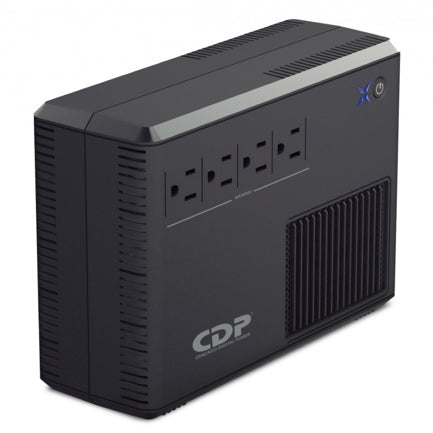

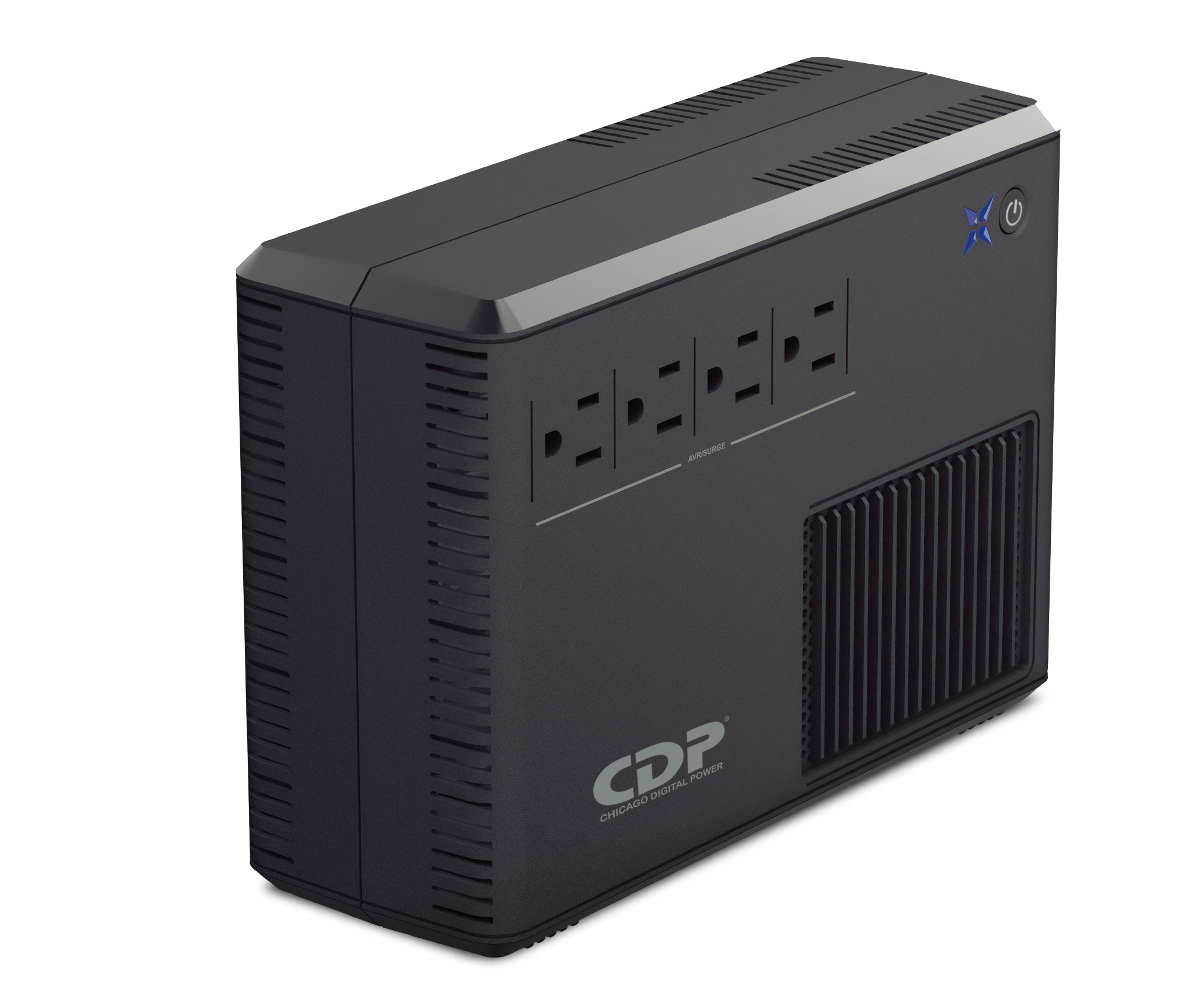

CDP UPS Interactive Regulator (NO-BREAK) 600VA/300WATTS with 4 Outlets

CDP RUPR604 600VA/300W Interactive UPS Automatic Voltage Regulator (AVR), corrects voltage variations and offers safe voltage conditions without using batteries, 4 Outlets (Nema 5-15R) Outlets with Battery Backup and surge suppression, up to 175 Joules of surge protection, 120 Vac

Technical Specifications

General Features
Brand	CDP
Item	Interactive UPS (No-break)
Color	Black
Capacity	600 VA / 300 W
Input voltage	120 Vac
Input frequency	50 / 60 Hz
Voltage range	80 Vac – 150 Vac
Maximum input current	6 A / 720 W
Output voltage	120 Vac
Output frequency	50 / 60 Hz
Waveform	Simulated sine wave
Transfer time	2 – 4 ms typical
Maximum output current	2.5 A / 300 W
Outlets	4 NEMA 5-15R outlets with backup and AVR
Battery	12 V / 4.5 Ah
Recharge time	4 hrs to 90%
Battery protection	Against overcharge and overdischarge
Protection	175 Joules against peaks and surges
Regulation	AVR (Automatic Voltage Regulation)
Alarm	Normal battery: 2 tones every 8 s / Low battery: 4 tones every second / Overload: continuous tone
Functions	Automatic regulation, alarm mute, charge indicator and short circuit protection
Indicator	Status LED (battery and load)
Dimensions	220 x 150 x 85 mm
Weight	3.5 kg
Operating temperature	0°C to 40°C

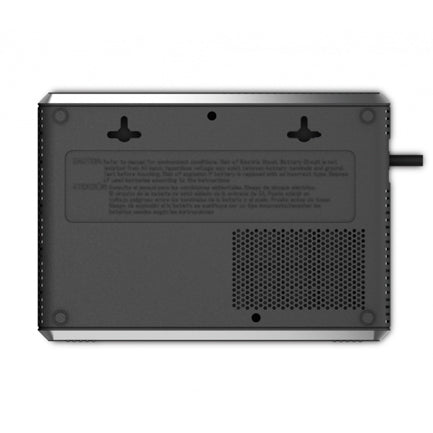

Mounting	Wall mount holes
Input cable	NEMA 5-15P, 1 m length
Certifications	NOM, ISO9001:2015, ISO14001, RETIE
