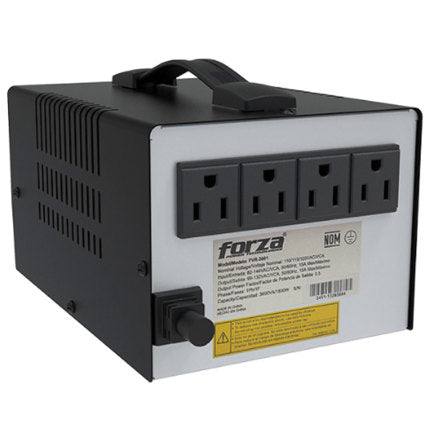

Forza FVR-3601 Voltage Regulator 3600VA/1800W 115V 4-NEMA 50/60Hz

Automatic Voltage Regulator 3600VA/1800W, 4 NEMA 5-15R

Automatic Reset Switch
Allows for easy recovery from overloads.
A safe and economical way to protect personal electronic devices.

Easy-to-use LCD display
Shows input and output voltage, boost and buck status indicators,
Shows input and output voltage, boost and buck status indicators,

Thermal fuse protection.
More reliable, foolproof peace of mind.
Automatic power cut-off when transformer temperature rises too high.

Delay timer
Simple, accurate and convenient current synchronization
Automatically defines the reconnection sequence for all connected equipment

Technical Specifications

General Characteristics
Brand	Forza
Item	Regulator
Model	FVR-3601
Capacity	3600 VA / 1800 W
Input voltage	110/115/120 VAC (adjustable with DIP switch)
Input voltage range	82–132 VAC / 86–138 VAC / 90–144 VAC
Input frequency	50/60 Hz (auto-sensing)
Joules (protection)	1200 J
Max peak current	24,000 A
Input connector	NEMA 5-15P
Outlets	4 × NEMA 5-15R
Output voltage	99–121 VAC / 103–127 VAC / 108–132 VAC
Output frequency	50/60 Hz
Regulation steps	2 boost / 1 buck
Protections	Thermal fuse, surges, overload, overheating
Delay timer	2 s, 10 s, 30 s
LCD indicators	Input/output voltage, low/normal/high status, boost, buck, overheating, overload, delay
Operating environment	Temp. 0–40 ºC, Humidity 0–95 % non-condensing
Storage environment	Temp. -15–45 ºC
Audible noise	<40 dB at 1 m
Housing	Metal, black color, flame retardant
Dimensions	20 × 14 × 13 cm
Weight	4.72 kg
Cable length	1 m
Recommended applications	Factories, hospitals, laboratories, industrial kitchens, multifunction printers, pumps, electric motors, continuous use appliances
Warranty	2 years
