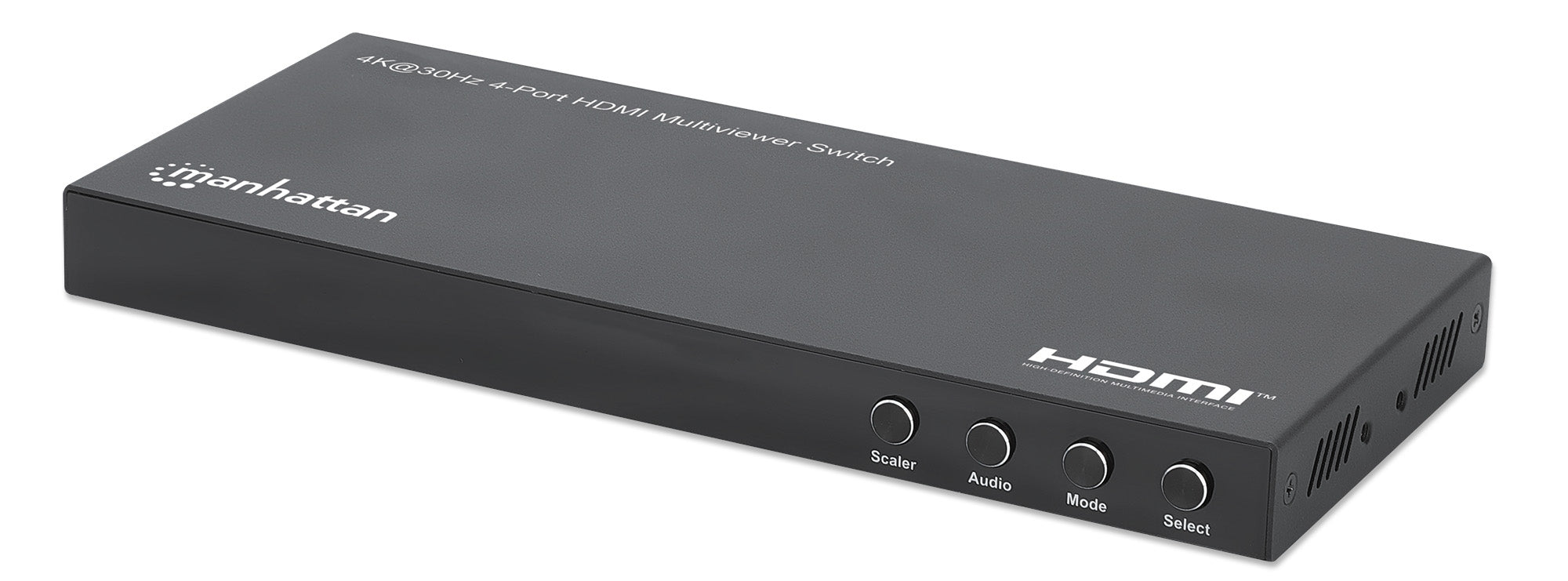

Manhattan 4-Port 4K HDMI Multiviewer Switch

4-input, 1-output (4x1) switch for viewing up to four HDMI sources on a single HDMI display with multiple viewing options, including Picture-in-Picture (PiP) function

The Manhattan 4K@30Hz 4-Port HDMI Multi-Viewer Switch lets you manage multiple HDMI sources on a single display. Perfect for digital signage, conference rooms and even home entertainment, this versatile device lets you share up to four HDMI audio/video sources on a single output display, offering six customizable display modes. Whether you prefer side-by-side, stacked, quad-view or Picture-in-Picture (PiP) viewing, this multi-viewer offers seamless options to suit your needs.


See the big picture

Enjoy resolutions up to ultra-high-definition 4K@30Hz (3840×2160). The built-in scaler button lets you effortlessly adjust input signals to 4K, 1600p or 1080p, making it easy to set up with both old and new displays.


Seamless switching and precise audio control

Switching between HDMI sources is instantaneous and seamless, ensuring smooth transitions without interruption. The independent audio selection feature allows you to combine video sources with any audio source of your choice.


Broad compatibility and easy setup

Compatible with all HDMI devices, including TVs, projectors, monitors, laptops, PCs, AV receivers, streaming set-top boxes, game consoles, Blu-ray players and more, this multi-viewer is up to any task. Enjoy multiple sporting events simultaneously or reduce digital signage costs by requiring fewer displays.


Durable design for reliable use

Designed for non-slip desktop use with rubber feet, the 4K@30Hz 4-Port HDMI Multi-Viewer Switch ensures stability and durability. With a bandwidth of up to 10.2 Gbps at 340 MHz and support for lossless 8-channel LPCM uncompressed audio format and 7.1 surround sound, this device delivers high-performance results every time.

Technical Specifications

General Features
Brand	Manhattan
Item	HDMI Multi-Viewer Switch
Model	208406
HDMI inputs	4 HDMI 19-pin female
HDMI output	1 HDMI 19-pin female
Supported resolutions	480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz
Video sampling rate	Up to 340 MHz
Video bandwidth	10.2 Gbps
Audio format	8-channel uncompressed PCM (7.1)
Device compatibility	Blu-ray, set-top boxes, Apple TV, Roku, FireTV, PS4, PS5, Xbox, laptops, projectors, Smart TVs and more
LED indicators	For active ports
Power supply	5 V DC / 1.0 A (power adapter and cable included)
Current consumption	170 mA
Dimensions	180 × 65 × 19 mm (7.08 × 2.55 × 0.75 in)
Net weight	304 g
Operating temperature	0 – 70 °C (32 – 158 °F)
Storage temperature	-20 – 65 °C (-4 – 149 °F)
Humidity (non-condensing)	5 – 90 %
Warranty	3 years (check in your city or country)
Package contents	HDMI switch, IR remote control, power adapter, micro USB cable, manual and instructions, brackets and mounting
