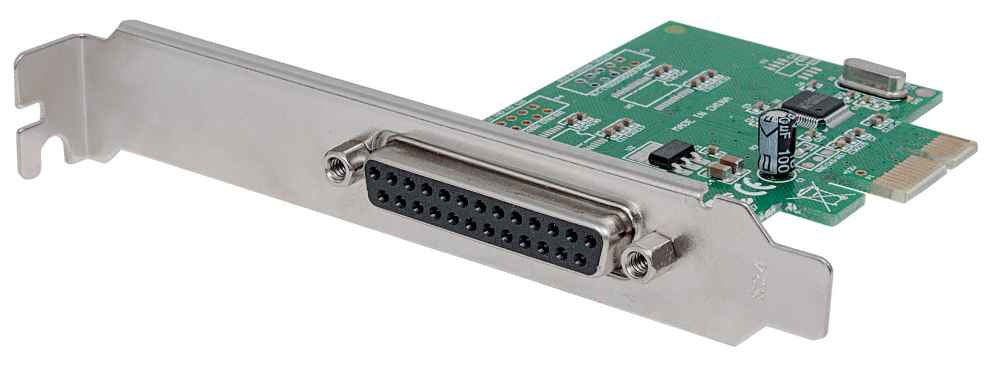

Manhattan PCI Express Parallel Card, 1 DB25 Port

PCI Express balances cost, performance, compatibility, and advanced features for computer platforms. The Manhattan PCI Express Parallel Card will quickly and easily add a DB25 port to PCI Express-enabled desktop systems to connect and communicate with parallel peripheral devices. Fast data transfer. The Manhattan PCI Express Parallel Card achieves data transfers of up to 2.5 Mbps to take advantage of PCI Express transfer speeds of up to 2.5 Gbps. Compatible with PCI Express 1.1 specifications ensures that most desktop computers equipped with a PCI Express card will be able to operate at their maximum performance. Easy installation. The Manhattan PCI Express Parallel Card fits into PCI Express x1, x2, x4, x8, and x16 buses. With Plug-and-Play installation, installing an LPT port is easier than ever.

PCI Express balances cost, performance, compatibility, and advanced features for computing platforms. The Manhattan PCI Express Parallel Card will quickly and easily add a DB25 port to PCI Express-enabled desktop systems to connect and communicate with parallel peripheral devices. Fast data transfer. The Manhattan PCI Express Parallel Card achieves data transfers of up to 2.5 Mbps to take advantage of PCI Express transfer speeds of up to 2.5 Gbps. Compatible with PCI Express 1.1 specifications ensures that most desktop computers equipped with a PCI Express card will be able to operate at their maximum performance. Easy installation. The Manhattan PCI Express Parallel Card fits into PCI Express x1, x2, x4, x8, and x16 buses. With Plug-and-Play installation, installing an LPT port is easier than ever.

Technical Specifications

General Features
Brand	Manhattan
Item	Parallel Card
Standards and Certifications	PCI Express 1.1, PCI Power Management 1.2, IEEE 1284, CE, FCC, RoHS, WEEE
Port Specifications	DB25 female port, WCH382 Chip, Simple 3.3 V operation
Data Transfer Rate:	up to 2.0 Mbps
Bus Specifications	PCI Express x1, Complies with PCI Express 1.1 specifications, Complies with PCI Power Management 1.2 specifications
Bus Speed	2.5 Gbps
System Requirements	Windows XP/Server 2003/Vista/7/8, PCI Express-enabled system with an available Express card slot, CD-ROM drive
Dimensions	12 cm x 6.8 cm x 2 cm
Weight	42.5 g
