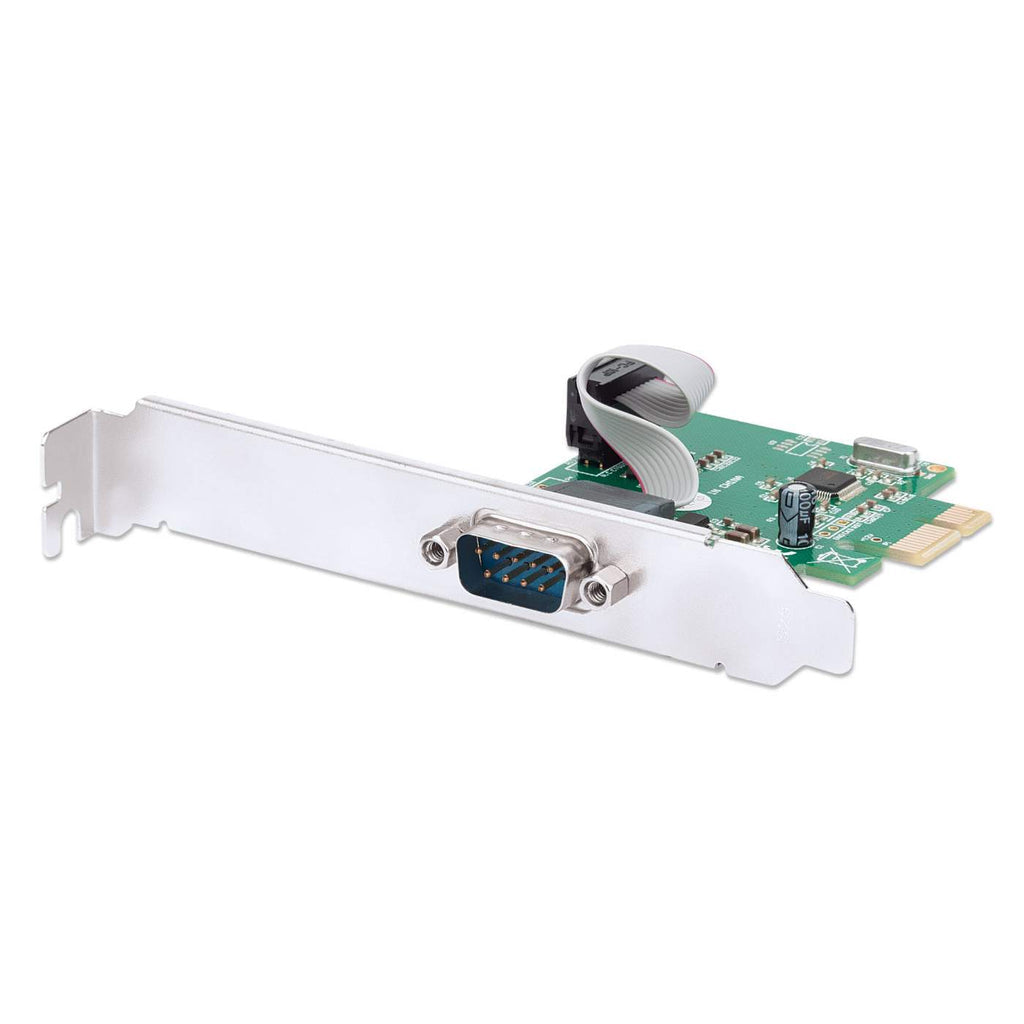

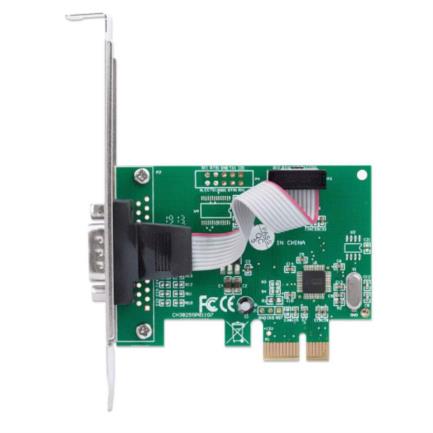

Manhattan PCI Express 1-Port Serial Card

The Manhattan PCI-E Serial Card quickly and easily adds a DB9 port to PCI Express-enabled desktop systems to connect and communicate with serial peripheral devices. It can be configured to achieve transmission rates of up to 230,400 bps to take advantage of PCI Express bus speeds of up to 2.5 Gbps. Compliance with PCI Express 1.1 specifications ensures that most desktop computers and devices equipped with PCI Express cards can perform at their best. It fits PCI Express x1, x2, x4, x8, and x16 lane buses, and COM port configuration provides a flexible way to customize its use to diverse needs.

The Manhattan PCI-E Serial Card quickly and easily adds a DB9 port to PCI Express-enabled desktop systems to connect and communicate with serial peripheral devices. It can be configured to achieve transmission rates of up to 230,400 bps to take advantage of PCI Express bus speeds of up to 2.5 Gbps. Compliance with PCI Express 1.1 specifications ensures that most desktop computers and devices equipped with PCI Express cards can perform at their best. It fits PCI Express x1, x2, x4, x8, and x16 lane buses, and COM port configuration provides a flexible way to customize its use to diverse needs.

Technical Specifications

General Features
Brand	Manhattan
Item	Serial Card
Standards and certifications	• PCI Express 1.1 • PCI Power Management 1.2 • CE • FCC • RoHS • WEEE
Ports	DB9 male port
Programmable baud rate	up to 230,400 bps
Chipset	WCH382L
Simple operation	3.3 V
Transmit/receive FIFO	256 bytes
Compatibility	with 16C550/16C552/16C554/16C750 UART
Terminal specific data	PCI Express x1 • Bus speed: 2.5 Gbps • Compliant with PCI Express 1.1 specifications • Compliant with PCI Power Management 1.2 specifications
System requirements	• Windows NT4.0/2000/XP/Server 2003/Vista/7/8/10 or Linux • PCI Express-enabled system with an available Express card slot
Dimensions	120 x 68 x 20 mm
Weight	42.5 g
