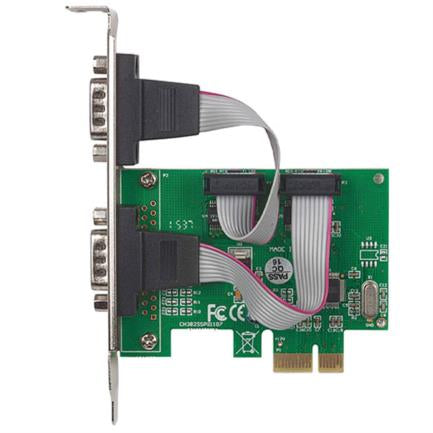

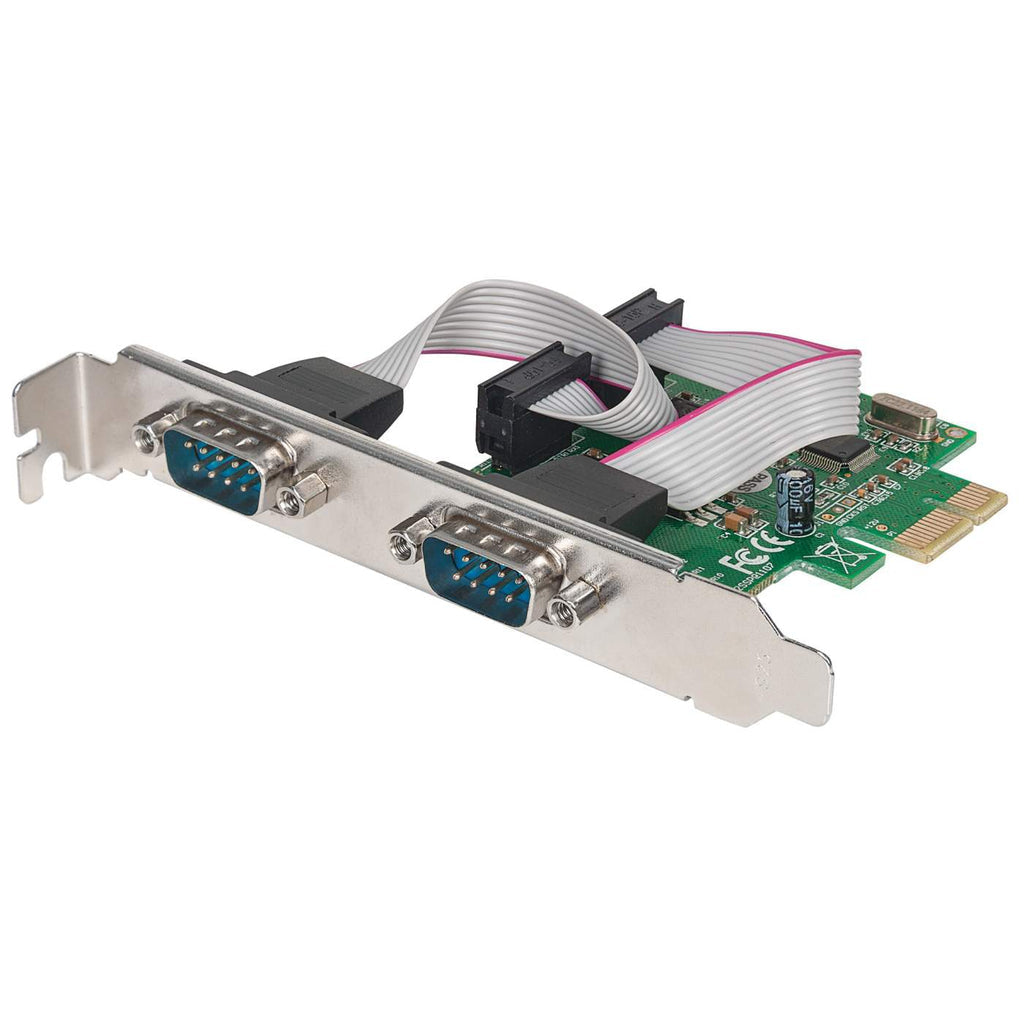

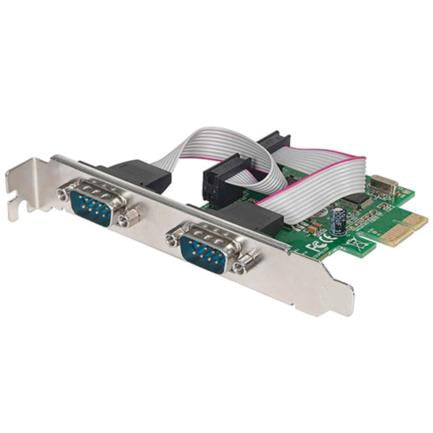

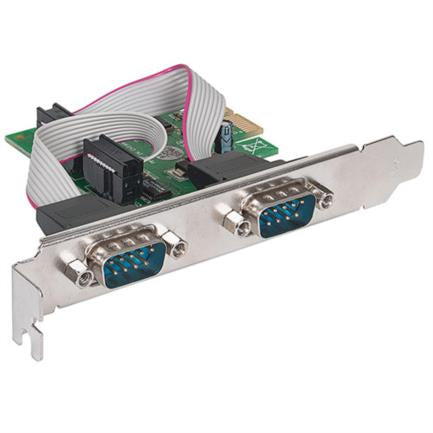

Manhattan PCI Express Serial Card 2-Port DB9

PCI Express balances cost, performance, compatibility, and advanced features for computer platforms. The Manhattan PCI Express Serial Card quickly and easily adds two DB9 ports to PCI Express-enabled desktop computers to connect and communicate with serial peripheral devices. Fast Data Transfer The Manhattan PCI Express Serial Card can be configured for transfer rates up to 230,400 bps to take advantage of PCI Express data transfer speeds up to 2.5 Gbps. It complies with PCI Express 1.1 specifications, ensuring that most desktop computers and devices equipped with PCI Express Cards can operate at their full performance. Easy Installation The Manhattan PCI Express Serial Card fits into x1, x4, x8, and x16 buses, and its configurable COM ports provide a flexible way to customize its use for various needs.

PCI Express balances cost, performance, compatibility, and advanced features for computer platforms. The Manhattan PCI Express Serial Card quickly and easily adds two DB9 ports to PCI Express-enabled desktop computers to connect and communicate with serial peripheral devices. Fast Data Transfer The Manhattan PCI Express Serial Card can be configured for transfer rates up to 230,400 bps to take advantage of PCI Express data transfer speeds up to 2.5 Gbps. It complies with PCI Express 1.1 specifications, ensuring that most desktop computers and devices equipped with PCI Express Cards can operate at their full performance. Easy Installation The Manhattan PCI Express Serial Card fits into x1, x4, x8, and x16 buses, and its configurable COM ports provide a flexible way to customize its use for various needs.

Technical Specifications

General Features
Brand	Manhattan
Item	Serial Card
Standards and certifications	PCI Express 1.1, PCI Power Management 1.2, CE, FCC
Ports	Two male DB9 ports, Programmable data transfer rate up to 115,200 bps (baud), WCH serial chipset, Simple 3.3 V operation, 256-byte transmit & receive FIFOs, Compatible with 16C550/16C552/16C554 and 16C750 UART
Bus	PCI Express x1, Bus speed: 2.5 Gbps, Compliant with PCI Express 1.1 specifications, Compliant with PCI Power Management 1.2 specifications
System requirements	Windows XP/Vista/7/8.1/10, PCI Express-enabled system with an available Express card slot, CD-ROM drive
Dimensions (with regular bracket)	12 cm x 6.8 cm x 2 cm
Weight (with regular bracket):	53.8 g
