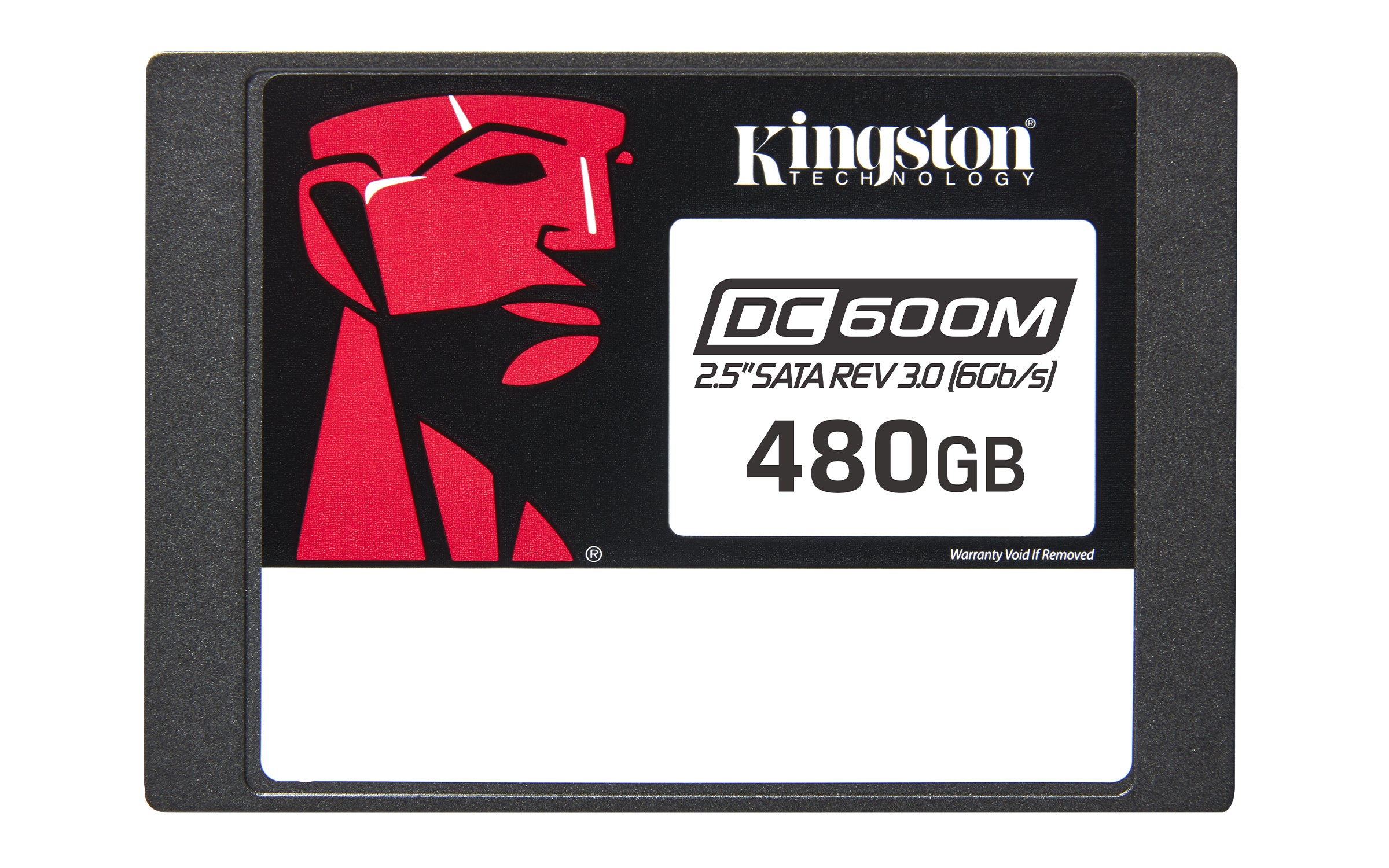

Kingston 480 GB DC600M SATA Enterprise 2.5" Mixed-Use SSD Solid State Drive

Kingston’s DC600M is a 4th generation SATA 3.0, 6Gbps Data Centre SSD with 3D TLC NAND designed for “mixed-use” workloads. The DC600M is suitable for use in high-volume, rack-mounted servers and includes on-board hardware (PLP). Through power-loss capacitors, the DC600M protects data from unexpected power failures to reduce the possibility of data loss and ensure that the drive successfully reboots at the next system power-up.

SATA 3.0 6Gbps Storage for Mixed-Use Server Workloads
Kingston’s DC600M and DC600ME are 4th generation SATA 3.0 6Gbps data centre SSDs with 3D TLC NAND designed for “mixed-use” server workloads. Both are suitable for a wide variety of server applications and include hardware-based power loss protection (PLP) via power loss capacitors. The DC600M and DC600ME are designed to protect data from unexpected power failures and ensure that the drive successfully reinitialises on the next system boot. Designed to deliver low latency and I/O consistency to system integrators, hyperscale data centres and cloud service providers.

The DC600ME features 256-bit AES encryption and supports TCG OPAL 2.0 security requirements.

Available in capacities from 480GB to 7.68TB* to meet your data storage needs.

Designed for Data Centre Environments
Optimised to meet the high demands of server RAID applications, with low latency and I/O consistency as critical design criteria.

Hardware-based PLP
Power loss protection capacitors to protect user data from unexpected power outages and improve performance.

Excellent Quality of Service (QoS)**
Optimised performance predictability to meet Service Level Agreements (SLAs).

256-bit AES Encryption with DC600ME
Protects sensitive data with support
for 256-bit AES hardware-based encryption and TCG Opal 2.0 security requirements with DC600ME.

Capacities up to 7.68TB
Enhance and manage your storage with capacities up to 7.68TB.*

Specifications

General Features
Brand	Kingston
Item	Solid State Drive
Model	DC600M
Form Factor	2.5 inch
Interface	SATA Rev. 3.0 (6Gb/s) – backward compatible with SATA Rev. 2.0 (3Gb/s)
Capacity	480 GB
NAND	3D TLC
Sequential Read/Write Speed	560MB/s / 470MB/s
Sustained 4k Random Read/Write Speed	94,000/41,000 IOPS
Quality of Service (Latency)3,4,5(99.999)	Read/Write 480GB – 180/110 µ
Typical Latency - Read/Write	<200 µs / <30 µs3,4,5
Power Loss Protection	480GB – 876TBW6, 1 DWPD (5 years)7, 1.66 DWPD (3 years)7
Power Consumption	Idle: 1.30W Average: 1.45W Max Read: 1.6W Max Write: 3.6W
Storage Temperature	-40° to 85°C
Operating Temperature	0 to 70 °C
Vibration Resistance in Operation	2.17G peak (7–800Hz)
Vibration Resistance out of Operation	20G peak (10 to 2000Hz)
MTBF	2 million hours
Dimensions	69.9 x 100 x 7 mm
Weight	92.34g
