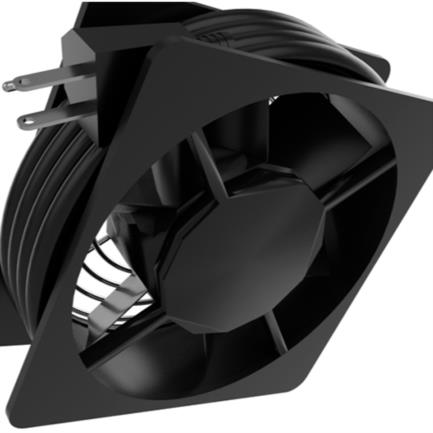

Nexxt Solutions NPF-12WMB Ventilation Unit for Wall-Mount Cabinet, Black Enamel

Nexxt Solutions NPF-12WMB Ventilation Unit for Wall-Mount Cabinet, Black Enamel

$ 451.00

Ask a question

Barcode: N/A
Sku: AW222NXT86
Type: Channeling

Garantizamos un pago seguro:

Technical Specifications General Features Brand Nexxt Solutions Item Ventilation unit Model AW222NXT86 Color Black enamel (RAL 9005) Motor design Axial flow Mounting type Top cover installation Frame material PBT thermoplastic...

Características del producto

Technical Specifications

General Features
Brand	Nexxt Solutions
Item	Ventilation unit
Model	AW222NXT86
Color	Black enamel (RAL 9005)
Motor design	Axial flow
Mounting type	Top cover installation
Frame material	PBT thermoplastic material
Impeller material	PBT thermoplastic material
Wire type	22 AWG (American Wire Gauge)
Bearing system	Lubricated sleeve bearing
Air intake protection	Electro-galvanized grille
Rotation	Fan blade, counterclockwise,
Power cord	3x16 AWG (American Wire Gauge)
Cable length	1.2m
Operating temperature	-10 to 70°C
Vibration	A vibration of 1.5G acceleration is applied at a frequency of 50 +/- 5Hz in all 3 directions (X, Y, Z) and in one-minute vibration cycles each for a total period of three minutes.
Dimensions	Height x width x total depth: 120x50x50mm \| Distance between mounting holes: 119 mm \| Hole diameter: 4.5mm \|
Weight	230g
Includes	M5 self-tapping screw = 4 units
Electrical characteristics	Rated voltage: 110/220VAC (50/60Hz) \| Voltage range: 110 –220VAC \| Starting voltage: 70VAC-180VAC \| Maximum current: 0.67 amps \| Power supply: 4 watts \| Power consumption: 30000 hours
Warranty	1 year

Características generales

Dimensiones Altura x ancho x profundidad total: 120x50x50mm \| Distancia entre los orificios de montaje: 119 mm \| Diámetro de los orificios: 4,5mm \|	Modelo AW222NXT86
