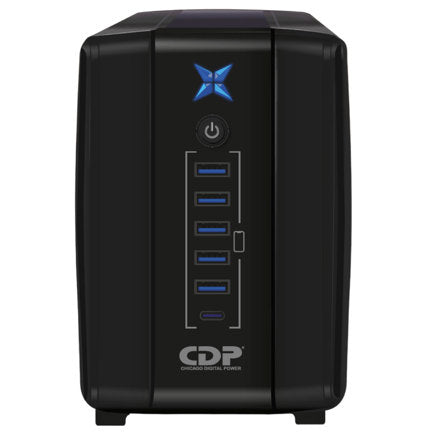

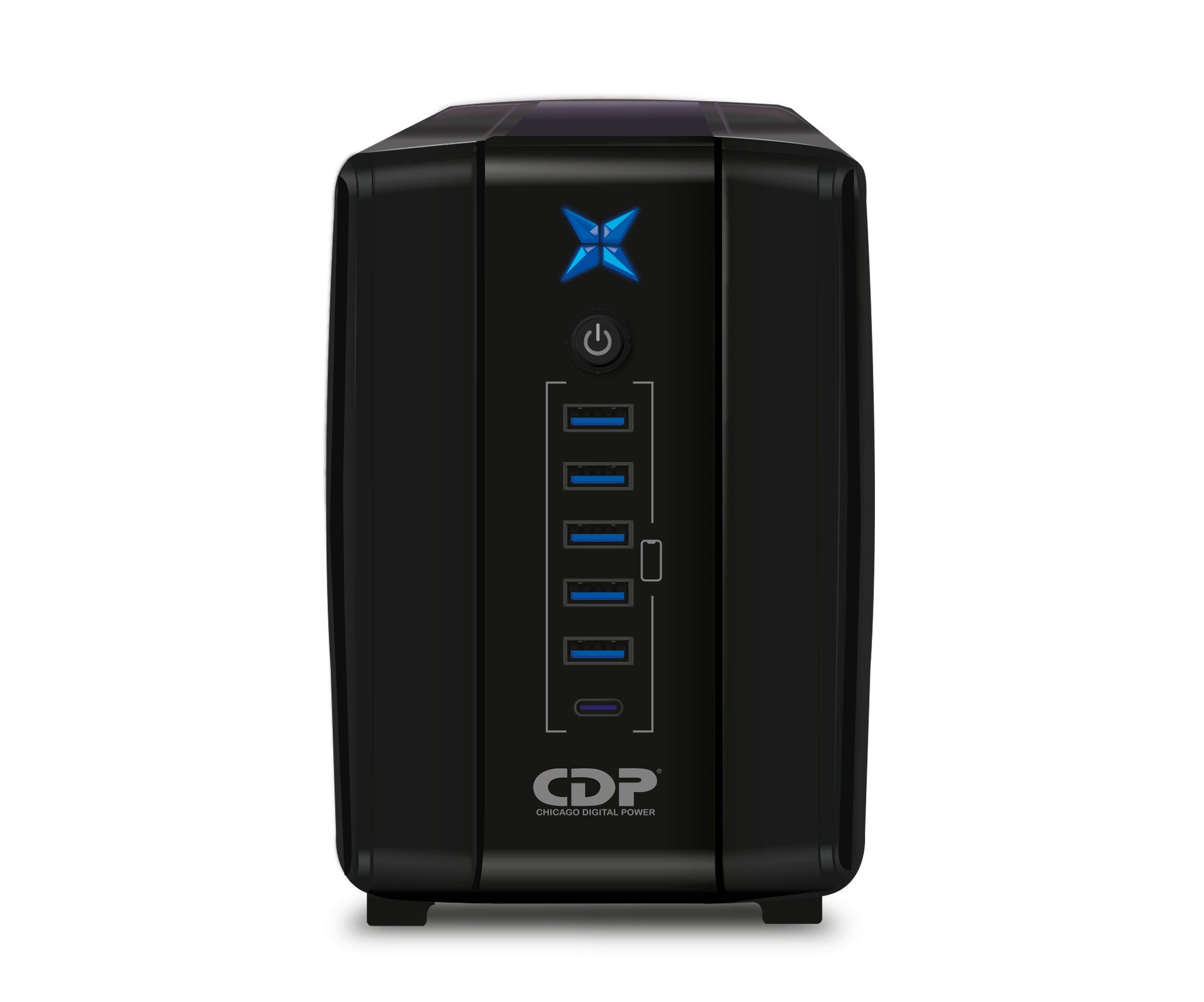

UPS CDP R-UPR 758 Interactive 750VA/375W 8 Outlets LED Operation Indicators

The R-UPR series is designed to protect your video game consoles and advanced workstations.

R-UPR 758
The R-UPR Series is designed with unparalleled performance and reliability for the protection of your video game consoles and advanced workstations. When the electronic flow condition is normal, the UPS protects against overvoltage while using power to charge the internal battery. It features powerful microprocessor-based controls for increased reliability with automatic voltage regulation. Ideal for complete protection of computer equipment, routers, modems, point-of-sale systems, video game consoles, and home theater systems.

Technical Specifications

General Features
Brand	CDP
Item	UPS
Input voltage	120Vac
Input frequency	50/60 Hz Auto-sensing
Voltage range (input)	80 - 145 Vac
Max. Input Current (Bypass)	960W (8 Max)
Output voltage	120Vac
Voltage regulation normal battery (output)	120Vac +/- 10%
Output frequency	50Hz / 60Hz ± 1Hz
Waveform (output)	Simulated Sine Wave
Transfer time (output)	2-4ms (Typical)
Quantity and type of outlets	4 with backup + AVR + 4 with surge protector
Max. Output Current (Bypass)	375W (8 Max)
USB charger	5 USB-A and 1 USB-C
Voltage / Type / Quantity (battery)	12VDC / 12V/7AH / Maintenance-free
Recharge time	4hr to 90% after complete discharge
Safety protection	Overload and deep battery discharge
LED indicators	Battery mode: 2 short beeps every 8 seconds; Low battery: 4 short beeps every second; Overload: Continuous beep and buzz; Critical: Continuous beep
Short circuit protection	Thermal-magnetic breaker and electronic circuits (Line mode)
Surge protection (Joules)	300 Joules
Dimension (Length x Height x Depth)	195 x 138 x 355 mm
Weight (Kg)	4.6 Kg
Brand	CDP
Item	UPS
Model	R-UPR 758
Type	Interactive
Capacity	750VA/375Watts
Input voltage	120 Vac
Input frequency	80 - 145 Vac
Voltage range	50 / 60 Hz (auto-sensing)
Output voltage	120 Vac
Output frequency	50 / 60 Hz +/- 1
Quantity and type of outlets	4 with battery backup + 4 with surge suppression
Surge protection	300 Joules
Dimensions	30 cm x 14 cm x 9.5 cm
Weight	3.55 kg
