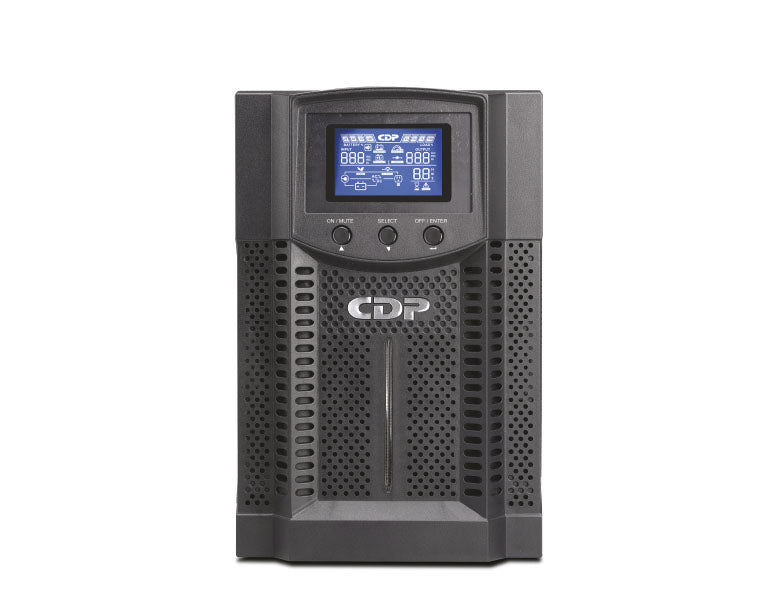

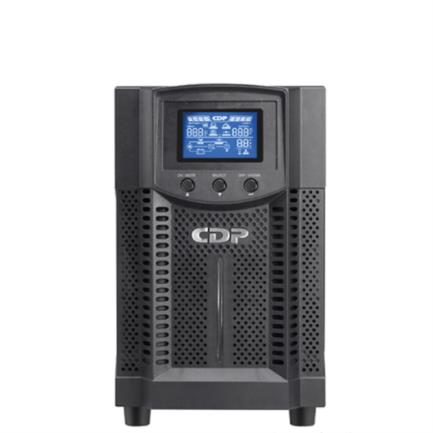

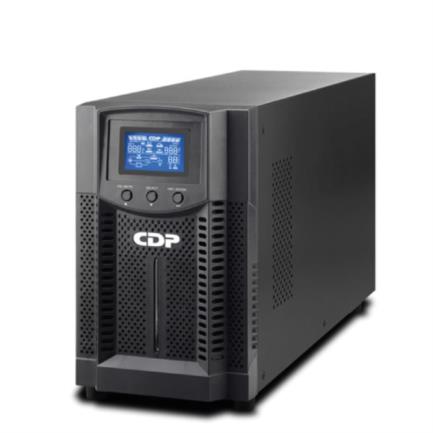

UPS CDP UPO11-1 Tower On-Line 1000VA/900W 4 Outlets Battery Bank Option LCD Display

UPO11-1
Chicago Digital Power Enterprise UPS 1000VA tower, double-conversion online pure sine wave, 0.9 output power factor, built-in batteries and a wide input voltage range of 60Vac to 150Vac. Input frequency range of 40-70Hz, selectable output voltage of 110 - 115 - 120 -127Vac. Output frequency 50 or 60Hz +/-0.1Hz. Automatic self-diagnosis, LCD display. Eliminates 99% of electrical problems, integrated USB and RS232 communication ports.

Local or Remote SNMP monitoring (optional) ambient temperature and humidity EMD sensors (optional) 60Hz/50Hz frequency conversion capability. Monitoring compatible with Windows 2000/ 2003 / XP/ vista / 2008 / 7 / 8 /10 Linux and MAC.

Short-circuit protection with digital protection, which is faster than thermal devices. Surge protection, EMI filters. Cold start and certifications from international regulatory agencies such as NOM, ISO9001-2015, ISO14001, RETIE.

* Product also available in 220V labeled with (i).

Technical Specifications

General Characteristics
Brand	CDP
Item	UPS
Weight	9.8 kg
Dimensions	14.5 × 22.5 × 28.5 cm
Model	UPO11-1
Capacity	1 KVA / 1000 VA / 900 WATTS
Mounting	TOWER
Technology:	ONLINE DOUBLE CONVERSION
Phases	1 (SINGLE-PHASE)
Input voltage	120 VAC (nominal voltage)
Output voltage	110/ 115/ 120 / 127 VAC
Output terminals	4 outlets (receptacles) NEMA 5-15R
Backup time	4 minutes at full load / 9 minutes at half load
Extended backup	Up to 1 battery bank can be added.
Voltage range	60VAC – 150VAC
Frequency range	40Hz – 70Hz
