UPS Tripp Lite 1500VA USB 8 Outlets RJ 8CAB Tower Black

Tripp Lite OMNIVS1500 line-interactive UPS system provides voltage regulation, surge suppression and long lasting battery support for personal computers, networking equipment and other sensitive electronics. Internal UPS batteries support basic PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 volts and overvoltages as high as 147 volts back to usable 120V levels without consuming battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 5 battery supported outlets for computer, monitor and vital system peripherals, plus 3 additional surge suppression-only outlets for printers and other accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failures (USB cable included). PowerAlert software is available via free download. HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Built-in data line surge suppression offers protection for equipment with a single-line TEL/DSL or Ethernet connection. Built-in audible alarm and 5 front panel LEDs indicate line power status, battery power status, low battery/replace battery status and voltage regulation and overload status. 1500VA power handling capacity supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4 minutes of battery runtime with a full load of 1500VA and 8.5 minutes with a half load of 750VA. Hot-swap battery replacement is supported via built-in access panel.

- OMNIVS1500 Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support during power outages
- Supports basic PCs for up to 75 minutes during power outages to allow for safe shutdown without data loss
- Regulates brownouts as low as 75V and overvoltages as high as 147V back to usable 120V levels, without consuming battery power
- Includes 5 battery-supported outlets and 3 additional surge-only outlets
- USB port with included cable enables UPS monitoring and unattended system shutdown in case of extended power failures
- HID-compliant USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Data line surge suppression protects standard dialup/DSL or Ethernet line connection

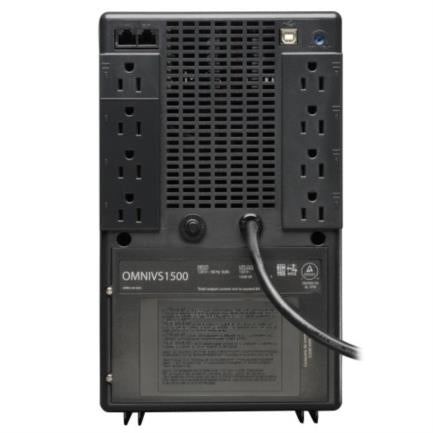

- Built-in audible alarm and 5 front panel LEDs indicate line power status, battery power status, low battery/replace battery, voltage regulation and overload
- 1500VA power handling capacity supports a variety of sensitive electronic equipment
- 4 minutes runtime at full load (1500VA), 8.5 minutes runtime at half load (750VA)
- Hot-swap battery replacement supported via built-in access panel
- Optional PDUB15 bypass PDU enables hot-swap UPS replacement with no interruption to connected equipment

Technical details

Weight & dimensions
Weight	12.6 kg
Weight	12.7 kg (28 lbs)
Environmental conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Relative humidity (non-condensing)	0 - 95 %
Colour
Colour of product	Black
Connectivity
Cable length	1.8 m
Regulatory approvals
Certification	UL1778/CSA/NOM/FCC Class B
Battery
Battery recharge time	4 h
Typical backup time at half load	8.5 min
Typical backup time at full load	4 min
Hot-swap battery	Yes
Packaging
Package dimensions (WxDxH)	280 x 286 x 394 mm
Package weight	13.5 kg
Lighting/Alarms
LED indicators	Yes
Audible alarms	Yes
Power control
Output power capacity	1500 VA
Output power	940 W
Input frequency	60 Hz
Surge energy rating	510 J
Other features
Input connection type	NEMA 5-15R
Dimensions (WxDxH)	184 x 191 x 298 mm
Output nominal voltage	120 V
Input nominal voltage	120 V
Operating temperature range (T-T)	32 - 104 °F
