UPS TRIPP LITE OMNISMART 500VA 6 OUTLETS 3 BATTERIES 17MIN AT HALF LOAD RJ11

The OMNI SMART 500 - Tripp Lite's interactive UPS system, offers voltage regulation, surge suppression and durable battery support for personal computers, Internet equipment and other sensitive electronic devices. It supports entry-level PC systems for up to 30 minutes during power outages so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate voltage sags down to 75 volts and overvoltages up to 147 to normal 120V levels without consuming battery power. It offers complete desktop power protection in an attractive black vertical tower configuration. It includes 3 battery-supported outlets for the computer, monitor and a vital system peripheral, plus 3 additional outlets for surge suppression only, for printers and other accessories that do not require battery support. The USB port allows for optional unattended system shutdown without data loss in the event of prolonged power outages. USB cable included. PowerAlert software available for download. The HID-compliant USB port also allows integration with the built-in power management and automatic shutdown features of Windows and MAC OS X. Built-in data line protection plugs offer single telephone/DSL line protection. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, low battery/replace status, and overload status. 500 VA / 300 Watts power handling capacity supports entry-level PCs, network workstations, point-of-sale equipment, small business telephone systems, audio/video equipment and home theater systems. It provides battery operation for 4 minutes at a full load of 500VA / 300 Watts and 14.6 minutes at a half load of 250VA / 150 Watts. The battery can be replaced via the built-in access panel.

• OMNISMART500 - Interactive UPS system, offers voltage regulation and battery support plus full AC surge suppression for phone / DSL line.
• Supports basic PC systems for up to 30 minutes during power failures so that the system can be safely shut down.
• Supports a maximum load of 500 VA / 300 Watts for 4 minutes and a half load of 250 VA / 150 Watts for 14.6 minutes.
• Automatic Voltage Regulation (AVR) circuits correct voltage sags as low as 75 volts and overvoltages up to 147 volts to normal 120 volt levels without consuming battery power.
• Attractive black tower configuration.

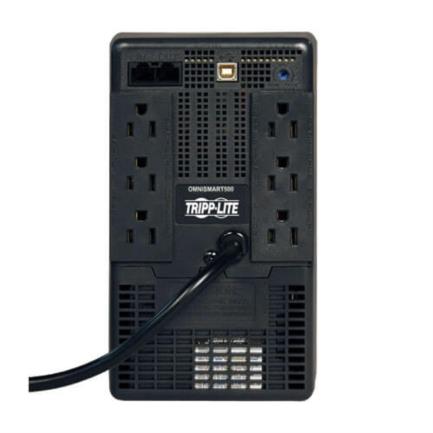

• Includes 3 battery-supported outlets plus 3 additional outlets for surge suppression only, 1.83 m [6 ft] AC line cord (all NEMA 5-15).
• The USB port allows unattended shutdown and data saving when used with Tripp Lite's PowerAlert software, available for FREE download via www.tripplite.com/poweralert
• The HID-compliant USB port also allows integration with the built-in power management and automatic shutdown features of Windows and Mac OS X.
• Supports Tripp Lite's WatchDog reboot/monitoring service software (part # WATCHDOGSW).
• The data line surge suppression plug protects a single telephone/DSL line.
• The audible alarm and 4 front panel LEDs indicate UPS system and line power status.
• The 500 VA / 300 Watts power handling capacity supports a wide variety of consumer electronics, computing, telecommunications, and network connection equipment.
• The battery can be replaced via the built-in access panel.
• Compatible with 120V / 60Hz applications for USA, Canada, Mexico and more.
• PDUB15 - Optional bypass PDU allows hot-swap replacement of the UPS without interrupting service to connected equipment.
• Short circuit protection in both AC and battery modes.

Technical Specifications

Technical details
Output power capacity (VA)	500 VA
Output power	300 W
Power supply input frequency	60 Hz
Surge energy rating	480 J
Power cable length	1.83 m
Battery recharge time	3.6 h
Typical backup time at half load	15 min
Typical backup time at full load	4 min
Replacement battery cartridge	RBC51
Color	White
Audible alarms	Yes
Input connection type	NEMA 5-15P
Nominal input voltage	120 V
Nominal output voltage	120 V
Weight and dimensions
Width	30.5 cm
Depth	21 cm
Height	23.5 cm
Weight	6.4 Kg
Environmental conditions
Operating temperature range	0 - 40 °C
Temperature	-15 - 50 °C
Relative humidity	0 - 95 %
