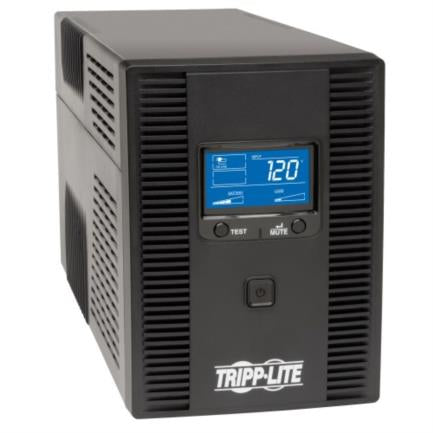

UPS TRIPP LITE OMNISMART LCD; 1500VA INTERACTIVE TOWER 120V

The OMNI1500LCDT uninterruptible power supply (UPS) from Tripp Lite provides voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. The UPS's internal circuits support the operation of entry-level personal computers or individual VCR/DVR components during power outages. It prevents data loss, interruptions while viewing, and loss of recordings and component programming. Automatic Voltage Regulation (AVR) circuits continuously regulate brownouts and overvoltages from 92V to 150V to usable levels, all while maintaining full battery charge. It offers complete power protection in an attractive black cabinet design. It includes 10 built-in outlets, 5 with battery backup and surge suppression for vital system components and another 5 with surge suppression only for accessories that do not require battery backup. The included USB port and cable allow for optional unattended system shutdown, with no data loss in the event of prolonged power outages. PowerAlert software is available for free download. The HID-compliant USB interface also allows integration with built-in Windows and Mac OS X power management and automatic shutdown features. Integrated data line suppression plugs protect equipment with a single dial-up, DSL or Ethernet network connection. The built-in audible alarm and large front-panel LCD display provide easy-to-read icon-based status indicators and detailed numerical data covering input voltage, output voltage, frequency, load percentage, load watts, battery voltage and runtime in minutes. The 1500VA / 810W power handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components.

● OMNI1500LCDT - Interactive UPS provides network-grade voltage regulation, surge suppression and long-lasting battery support

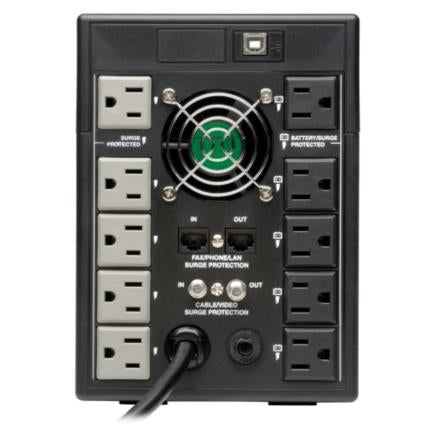

● 10 built-in NEMA 5-15R outlets, 5 with UPS and surge suppression for vital components and 5 additional outlets with surge protection only for devices that do not require battery backup
● NEMA 5-15P power plug; 1.83 m [6 ft] power cord
● Keeps connected equipment operating to prevent data loss, equipment damage and downtime associated with power outages and severe voltage fluctuations
● Automatic Voltage Regulation / Interactive AVR circuits continuously correct brownouts and overvoltages from 92V to 150V without using battery power
● Network-grade AC surge suppression protects connected equipment from damage and malfunctions caused by transient surges
● Provides a runtime of 7.5 minutes at 50% load (405 Watts)
● Supports an entry-level desktop system with LCD screen for up to 55 minutes during power outages (75 Watts)

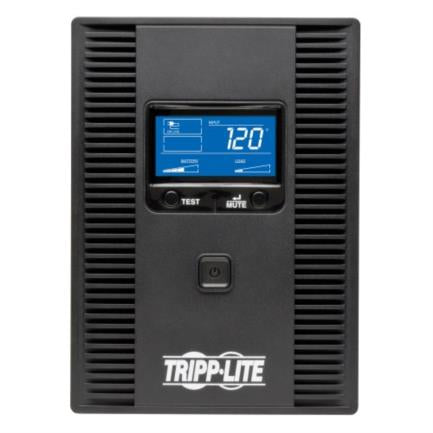

● The LCD continuously reports operating mode and battery charge level, as well as additional UPS and site power information such as input and output voltage, frequency, load percentage, load watts, battery voltage and estimated runtime in minutes
● The USB port allows unattended shutdown and data saving when used with Tripp Lite's PowerAlert software, available for FREE download via www.tripplite.com/poweralert
● HID-compliant USB interface also allows automatic integration with built-in Windows and Mac OSX power management and automatic shutdown features
● Built-in data line surge suppression provides protection for equipment on a dial-up telephone line or Ethernet network, plus a set of coaxial plugs for CATV / communications transmission line protection
● Complies with strict ENERGY STAR efficiency guidelines
● PDUB15 - Optional bypass PDU allows hot-swap replacement of the UPS without interrupting service to connected equipment

Technical Specifications

Physical Specifications
Form Factor	Tower
Dimensions	20.3 x 14.6 x 39.1 (height x width x depth/cm)
Weight	12.2Kg
General Specifications
Output Volt Capacity	1500
Output kVA Capacity	1.5
Output Watt Capacity	810
Frequency	50/60Hz
Integrated UPS Output Receptacles	10 outlet(s) 5-15R
UPS Input Connection Type	5-15P
Input Breaker	15A
Cable Length	1.8m
Phase:	Single-phase
