UPS Tripp Lite SmartPro 120V 3kVA 2.4kW Tower Extended Run 3 DB9 Ports

Tripp Lite Smart, Line-Interactive, Large Tower UPS System; protects servers, network accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries provide 23 minutes of runtime at half load and 7 minutes at full load. Runtime is expandable with optional external battery packs BP24V28-2U (limit 1) and BP24V70-3U (multiple battery pack compatible).

SMART3000NET - Tripp Lite Smart, Line-Interactive, Large Tower UPS System; protects servers, network accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries provide 23 minutes of runtime at half load and 7 minutes at full load. Runtime is expandable with optional external battery packs BP24V28-2U (limit 1) and BP24V70-3U (multiple battery pack compatible). 3000VA / 2400 watt power handling capacity supports a variety of network, telecommunications and other sensitive electronic equipment applications. Includes 8 protected outlets. Remote monitoring of UPS and site power conditions is enabled via RS-232-equipped monitoring port, plus standard UPS monitoring via 2 built-in contact closure ports. PowerAlert UPS monitoring software is free to download. The built-in audible alarm and front panel LEDs indicate line power, battery power, battery charge level, load level and voltage regulation status. Network grade AC surge suppression protects connected equipment from damage and performance problems caused by transient surges.

• SMART 3000NET - Line-interactive UPS, provides battery-derived AC output during blackouts, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression.
• 3000VA / 2400 Watts power capacity supports a variety of network, telecommunications and other sensitive electronic equipment.
• Large internal batteries offer 23 minutes of runtime at half load (1500VA / 1200 Watts) and 7 minutes at full load (3000VA / 2400 Watts).
• Runtime can be further expanded with optional external battery packs BP24V28-2U (limit 1) and BP24V70-3U (multiple pack compatible).
• Intelligent battery management system extends battery life.
• Automatic Voltage Regulation (AVR) maintains a nominal 120V output over an input voltage range of 87V to 140V.

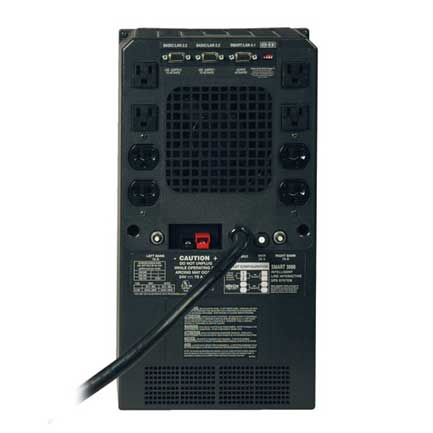

• Includes 8 fully protected outlets (4 NEMA 5-15R and 4 NEMA 5-15/20R) with 2 load banks of outlets that can be independently switched on and off via a software interface.
• PowerAlert UPS monitoring and unattended shutdown software allows for network messaging, email, event logging, and user-defined script execution.
• Offers simultaneous monitoring of up to 3 directly connected devices via the included DB9 contact closure interfaces and RS-232 enabled interfaces or monitoring of any number of additional servers over IP with PowerAlert monitoring software (available for free download at www.tripplite.com/poweralert).
• In addition to active battery, low battery and power restore contact closure monitoring messages, the built-in RS-232 interface supports UPS and line power status messages, including AC line voltage, DC battery voltage and remaining battery capacity.
• Supports auto-diagnostic activation and control of UPS output power for delayed or immediate restart of connected equipment.
• Diagnostic LEDs (indicate 17 operating conditions).


Package Includes

• SMART 3000NET - UPS System
• 3 DB9 network cables
• Instruction manual

Technical specifications

Technical details
Output power capacity (VA)	3000 VA
Output power	2400 W
Surge energy rating	480 J
Power cable length	2.43 m
Battery recharge time	2 h
Typical backup time at half load	23 min
Typical backup time at full load	7 min
Color	Grey
Certificates	UL1778 (USA), cUL (Canada), FCC Class A, NOM (Mexico)
Input connection type	NEMA L5-30P
Nominal input voltage	120 V
Nominal output voltage	120 V
Output power capacity (VA)	3000 VA
Output power	2400 W
Surge energy rating	480 J
Power cable length	2.43 m
Battery recharge time	2 h
Typical backup time at half load	23 min
Typical backup time at full load	7 min
Color	Grey
Certificates	UL1778 (USA), cUL (Canada), FCC Class A, NOM (Mexico)
Input connection type	NEMA L5-30P
Nominal input voltage	120 V
Nominal output voltage	120 V
Weight & dimensions
Width	22.9 cm
Depth	31.75 cm
Height	43.2 cm
Weight	40.4 kg
Width	22.9 cm
Depth	31.75 cm
Height	43.2 cm
Weight	40.4 kg
Environmental conditions
Operating temperature range	0 - 40 °C
Temperature	-15 - 50 °C
Relative humidity	0 - 95 %
Humidity (storage)	0 - 95 %
Operating temperature range	0 - 40 °C
Temperature	-15 - 50 °C
Relative humidity	0 - 95 %
Humidity (storage)	0 - 95 %
