UPS Tripp Lite SmartPro LCD Interactive 120V/1000VA 500W AVR Tower USB 8 Outlets

Provides reliable 1000VA/500W power protection for your desktop computer, network workstation, audio/video components or media centers. Protects against surges, line noise, blackouts and voltage drops.

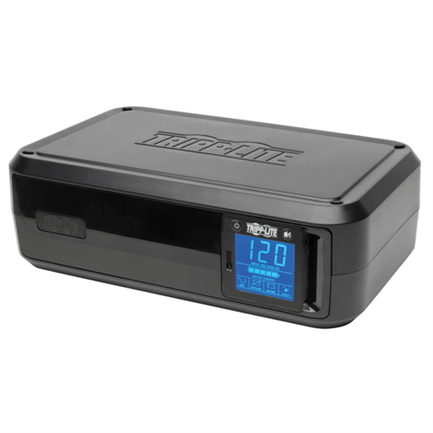

The SmartPro SMART1000LCD 120V, 1000VA/500W Interactive UPS System with LCD provides AC power backup and protection against blackouts, brownouts, surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this interactive UPS switches to battery backup mode in milliseconds to keep your equipment connected long enough to save files and shut down safely without data loss.

While all eight NEMA 5-15R outlets protect against surges, four of these outlets also offer up to 3 hours of UPS battery support for a DVR component, 60 minutes for a basic desktop PC and LCD monitor, and 10 minutes of backup at half load (250W).

Automatic voltage regulation (AVR) corrects severe undervoltages down to 89V without using battery power. EMI/RFI noise filtering improves equipment performance and prevents damage. A 1038 joule surge suppression rating protects your equipment against damaging surges.

The space-saving NEMA 5-15P plug with a 1.83 m [6 ft] cord connects to any NEMA 5-15R receptacle and allows furniture to be flush against the wall. The large, dimmable, rotating LCD screen displays real-time input voltage, overload, AVR and battery status at a glance. With the Free PowerAlert Software (available via free web download), the SMART1000LCD allows for safe system shutdown and unattended file saving in the event of a prolonged power outage.

Reliable Battery Backup

● Provides high-performance 1000VA / 500W power protection for desktop computers, audio and video components, media centers, and other electronics.
● Supports a basic desktop computer and LCD monitor for up to 60 minutes or single DVR components for up to 3 hours during a blackout.
● Supports 50% load (250W) for up to 10 minutes and full load (500W) for up to 3 minutes.
● 97% efficiency rating at full load saves money on energy costs.
● Audible alarm indicates utility power loss or low battery.

Optimized Outlets

● 4 NEMA 5-15R outlets provide battery backup for devices requiring constant power.
● All 8 outlets protect against surges that can damage equipment or data.

Automatic Voltage Regulation (AVR)

● Corrects undervoltages down to 89V with a 14% boost without losing battery backup power.

Rotating LCD Status Display

● Large LCD screen displays real-time input voltage, overload, AVR, and battery status.
● Rotates for easy viewing in horizontal and vertical installations.
● Dimmer controls brightness level.

AC, Coaxial and Tel / DSL Line Surge Suppression

● 1038 joule surge suppression rating protects connected equipment and data from damaging surges.
● RJ11 jacks and included cable for Tel / DSL protect standard dial-up/DSL phone connection.
● Coaxial connectors protect CATV, broadband cable internet, satellite or broadcast antenna connection.

EMI / EFI Line Noise Filtering

● Eliminates electromagnetic and radio frequency interference that can interrupt or damage your equipment's operation.

USB Communication Port and Free PowerAlert Software

● HID-compliant USB port integrates with Windows and Mac OS X's built-in power management and automatic shutdown.
● Works with PowerAlert Software, available via free web download from www.tripplite.com/poweralert, to enable safe system shutdown and unattended file saving during an extended power outage.

Flexible Installation Options

● Space-saving right-angle NEMA 5-15P plug with a 1.83 m [6 ft] cord connects to any NEMA 5-15R outlet.
● Adapts to vertical or horizontal installation without special hardware.

Technical specifications

Weight & dimensions
Weight	6.6 kg
Weight	6.62 kg (14.6 lbs)
Environmental conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Relative humidity (non-condensing)	0 - 95 %
Colour
Product colour	Black
Connectivity
Cable length	1.8 m
I/O ports	8 x NEMA 5-15R
Regulatory approvals
Certification	UL1778/CSA C22.2 No. 107.3/NOM/Class B/FCC part 68
Packaging
Package dimensions (WxDxH)	39.4 x 27.9 x 16.5 cm
Package weight	7.1 kg
Other features
Input connection type	NEMA 5-15P
Dimensions (WxDxH)	305 x 165 x 89 mm
Nominal output voltage	120 V
Nominal input voltage	120 V
Operating temperature range	32 - 104 °F
Power control
Output power capacity	1000 VA
Output power	500 W
Input frequency	60 Hz
Surge energy rating	480 J
Lighting/Alarms
LED indicators	Yes
Audible alarms	Yes
Battery
Typical backup time at half load	9 min
Typical backup time at full load	3 min
