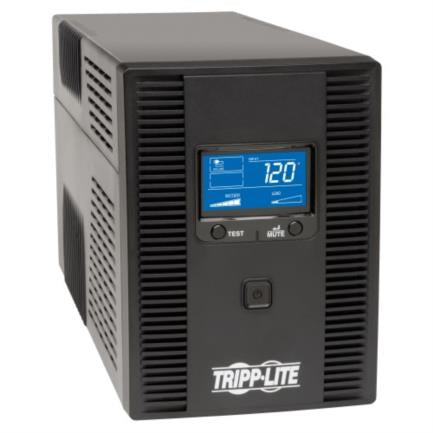

UPS Tripp Lite SmartPro LCD Interactive 120V 1300VA 720W Tower USB AVR 8 Outlets

Tripp Lite's SmartPro SMART1300LCDT 120V 1300VA / 720W Line-Interactive UPS with LCD provides AC power backup and protection against blackouts, voltage drops, surges, and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio-visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your equipment running long enough to save files and safely shut down without data loss.

While all eight NEMA 5-15R outlets protect against surges, four of these outlets also offer up to 64 minutes of UPS battery support for a basic desktop PC and LCD monitor, and up to 10 minutes of backup at half load (360W).

Automatic Voltage Regulation (AVR) corrects severe undervoltages down to 92V and overvoltages up to 150V without using battery power. EMI/RFI line noise filtering improves your equipment's performance and prevents damage. A 650 joule surge suppression rating protects your equipment against harmful surges.

The NEMA 5-15P plug with a 6-ft. (1.83 m) cord connects to any NEMA 5-15R outlet. The large LCD screen displays real-time input voltage, overload, AVR, remaining battery run time, and battery status at a glance. The alarm sounds to indicate power loss or low battery. With free PowerAlert Software (available via free web download), the SMART1300LCDT enables safe system shutdown and unattended file saving in the event of a prolonged power failure.

Reliable Battery Backup

● Provides 1300VA/720W high-performance power protection for desktop computers, audio/video components, media centers, and other electronic devices
● Supports a basic desktop computer and LCD monitor for up to 64 minutes during a power outage
● Supports 50% load (360W) for up to 10 minutes
● Audible alarm indicates utility power loss or low battery

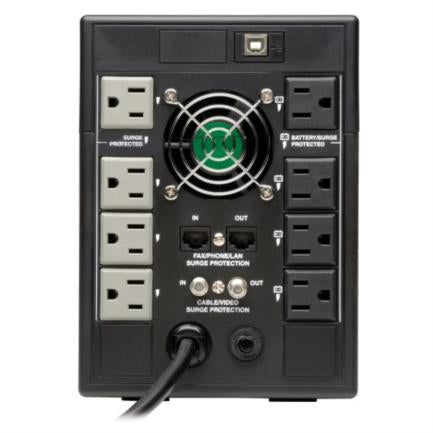

Optimized Outlets

● 4 NEMA 5-15R outlets provide battery backup for devices requiring constant power
● All 8 outlets protect against surges that can damage equipment or data
● NEMA 5-15P plug with a 6-ft. (1.83 m) cord connects to any NEMA 5-15R outlet

Automatic Voltage Regulation (AVR)

● Corrects undervoltages down to 92V and overvoltages up to 150V without loss of battery backup power

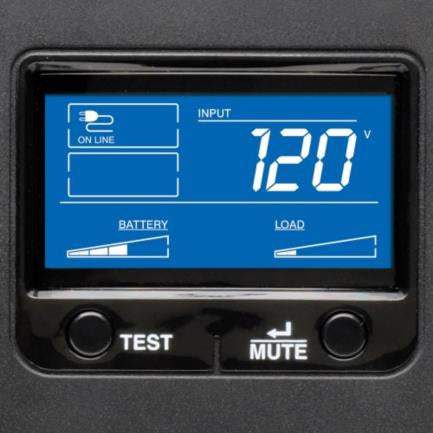

LCD Status Display

● Large LCD screen displays real-time voltage, load, AVR, and battery status
● Automatically displays remaining battery runtime in minutes during a power outage

AC Line, Coaxial, and Tel/DSL Surge Suppression

● 650 joule surge suppression rating protects connected equipment and data against harmful surges
● RJ11 Tel/DSL jacks protect standard dial-up/DSL/Ethernet telephone connection
● Coaxial connectors protect CATV, broadband cable Internet, satellite, or broadcast antenna connection

EMI/RFI Line Noise Filtering

● Eliminates electromagnetic and radio frequency interference that can disrupt or damage your equipment's operation

USB Communication Port and Free PowerAlert Software

● HID-compliant USB port integrates with built-in Windows and Mac OS X power management and automatic shutdown
● Works with PowerAlert Software (available via free web download) to enable safe system shutdown and unattended file saving during a prolonged power failure

Technical Specifications

General Features
Brand	Tripp Lite
Item	UPS
Series	SmartPro
Type	Line-Interactive
Specified Input Current (Maximum Load)	10.8A
Supported Nominal Input Voltage(s)	120V AC
UPS Input Connection Type	5-15P
Input Breakers	20A
UPS Power Cord Length (m)	1.8
Recommended Electrical Service	15A 120V
Input Phase	Single-Phase
Output Capacity in Volt Amperes (VA)	1300
Output Capacity (kVA)	1.3
Output Capacity (Watts)	720
Nominal Voltage Details	120V nominal output in battery backup mode
Frequency Compatibility	60 Hz
Output Voltage Regulation (Line Mode)	120V (+9% / -12%)
Output Voltage Regulation (Battery Mode)	120V (±10%)
UPS Output Receptacles (Surge Suppression Only)	4 outlets on UPS, 4 surge-only outlets
AC Output Waveform (AC Mode)	Sine Wave
Supported Nominal Output Voltage(s)	110V; 115V; 120V
Outlets	(8) 5-15R
Battery Type	Valve Regulated Lead Acid [VRLA]
Runtime at Half Load (min.)	10 minutes (360 Watts)
Expandable Runtime	No
System DC Voltage (VDC)	24
Front Panel LCD Display	LCD display with scroll buttons indicates input voltage, output voltage, frequency (Hz), AVR boost/buck status, output load in watts, output load percentage, battery voltage, and estimated runtime in minutes.
Switches	Power switch provides full control over UPS power; scroll/mute button allows LCD option selection and silences audible alarm; test button initiates self-test
UPS AC Suppression Response Time	Instantaneous
Primary Form Factor	Tower
Dimensions	49.28 cm x 28.70 cm x 23.11 cm
Shipping Weight (kg)	11.20 kg
