UPS Tripp Lite SmartPro LCD Interactive 120V 1500VA 900W AVR 2U Rack/Tower USB Serial DB9 8 Outlets

Provides reliable 1500VA/900W power protection for your desktop computer, network workstation, audio/video components or media centers. Protects against surges, line noise, blackouts and brownouts.

The SmartPro SMART1500LCD 120V, 1500VA / 900W Line-Interactive UPS with LCD provides AC power backup and protection against blackouts, brownouts, surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audiovisual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your equipment powered long enough to save files and safely shut down without data loss.

Eight NEMA 5-15R outlets protect against surges and also provide up to 11.8 minutes of UPS battery backup at half load (450W) and 4.4 minutes of backup at full load (900W). Automatic Voltage Regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using battery power. EMI/RFI line noise filtering improves your equipment’s performance and prevents damage. A 480-joule surge suppression rating protects your equipment from damaging power surges.

The NEMA 5-15P plug with 6-ft. [1.83 m] cord connects to any NEMA 5-15R wall outlet. The large rotatable LCD screen, with dimmer, displays input voltage, overload, AVR and battery statuses at a glance in real time. An alarm sounds to indicate power failure or low battery. With Free PowerAlert Software (available via free download), the SMART1500LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.

Reliable Battery Backup

● Provides high-performance 1500VA / 900W power protection for desktop computers, audiovisual components, media centers and other electronic devices
● Supports 50% load (450W) for 11.8 minutes and full load (900W) for 4.4 minutes
● Audible alarm indicates power failure or low battery

Optimized Outlets

● 8 NEMA 5-15R outlets provide battery backup and surge protection to prevent damage to equipment or data

Automatic Voltage Regulation (AVR)

● Corrects undervoltages as low as 75V and overvoltages as high as 147V without draining battery power

Rotatable LCD Status Screen

● Large LCD screen provides real-time status information on operating mode, voltage, load level, battery charge percentage and estimated runtime in minutes
● UPS settings options via front panel LCD include battery self-test, external battery pack configuration, alarm on/off status and LCD brightness
● Rotates for easy viewing in both horizontal and vertical installations.

AC Line, Tel/DSL and Ethernet Surge Suppression

● 870-joule surge suppression rating protects connected equipment and data from damaging power surges
● Built-in RJ-45 jacks protect a Tel/DSL or Ethernet network connection

EMI/RFI Line Noise Filtering

● Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment’s performance

USB & DB9 Communication Ports & Free PowerAlert Software

● HID-compliant USB port integrates with built-in power management and auto shutdown of Windows and Mac OS X
● USB and Serial ports enable unattended shutdown and save of information when used with Tripp Lite’s PowerAlert software, available as a FREE download from www.tripplite.com/poweralert

Flexible Installation Options

● NEMA 5-15P plug with 6-ft. [1.83 m] cord connects to any NEMA 5-15R wall outlet

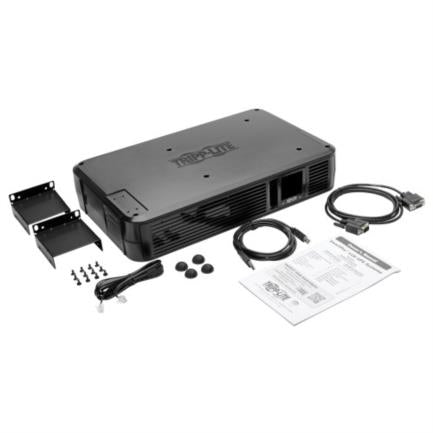

● Adapts to vertical or horizontal installation with included accessories
● Includes 2U rackmount brackets for 2- or 4-post rack installation

Technical Specifications

Weight & dimensions
Weight	13.2 kg
Weight	13.2 kg (29 lbs)
Environmental conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Non-operating relative humidity (non-condensing)	0 - 95 %
Color
Product color	Black
Connectivity
Cable length	1.8 m
Regulatory approvals
Certification	UL1778/CSA C22.2 No. 107.3/NOM/Class B/FCC part 68
Battery
Battery recharge time	8 h
Typical backup time at half load	13 min
Typical backup time at full load	3.5 min
Packaging
Package dimensions (H x W x D)	533 x 368 x 178 mm
Package weight	14.1 kg
Lighting/Alarms
LED indicators	Yes
Audible alarms	Yes
Power control
Output power capacity (VA)	1500 VA
Output power	900 W
Input frequency	60 Hz
Surge energy rating	480 J
Other features
Input connection type	NEMA 5-15P
Dimensions (W x D x H)	438 x 267 x 89 mm
Nominal output voltage	120 V
Nominal input voltage	120 V
Operating temperature range	32 - 104 °F
