UPS Tripp Lite Three-Phase 208/220/120/127V 10kVA/kW Double-Conversion Unit PF 2 Internal Battery Strings

TRIPP-LITE

UPS Tripp Lite Three-Phase 208/220/120/127V 10kVA/kW Double-Conversion Unit PF 2 Internal Battery Strings

$ 172,217.00

Tiempo estimado de entrega: 5 días hábiles (Nacional)

Usa el código “DB2B2026” para obtener un descuento del 15%

Envío gratis en compras mayores a $0,000.00 MXN

Ask a question

Barcode: 0037332247773
Sku: S3M10K2B
Type: Power Protection

Garantizamos un pago seguro:

Technical Specifications General Features Brand Tripp Lite Article UPS Model S3M10K2B UPS Type On-Line Input Phase Three-Phase Specified Input Current 37.6A (166VAC); 35.5A (176VAC) Supported Nominal Input Voltage(s) 120V /...

Características del producto

Technical Specifications

General Features
Brand	Tripp Lite
Article	UPS
Model	S3M10K2B
UPS Type	On-Line
Input Phase	Three-Phase
Specified Input Current	37.6A (166VAC); 35.5A (176VAC)
Supported Nominal Input Voltage(s)	120V / 208V Three-Phase Wye; 127V / 220V Three-Phase Wye
UPS Input Connection Type	Hardwire
Input Breakers	50A 3-pole magnetic breaker
Power Factor (Input)	>0.99 (maximum resistive load)
Output Capacity (VA)	10000
Output Capacity (kVA)	10
Output Capacity (Watts)	10000
Nominal Voltage Details	Factory default output voltage is 120V / 208V; Less than ±1° Maximum Phase Angle Deviation; Less than ±3% Maximum Voltage Unbalance Deviation
Output AC Waveform	Pure Sine Wave
Supported Nominal Output Voltage(s)	120V / 208V Three-Phase Wye; 127V / 220V Three-Phase Wye

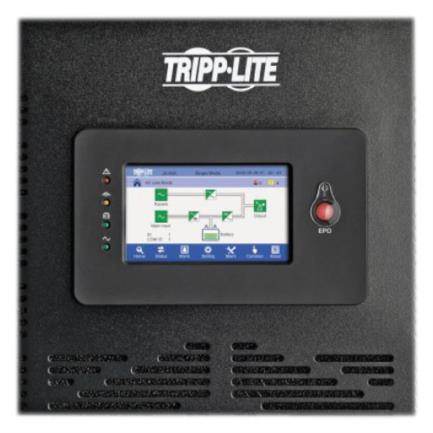

User Interface and Alerts/Controls	Front Panel LCD Display, Switches, Audible Alarm, LED Indicators

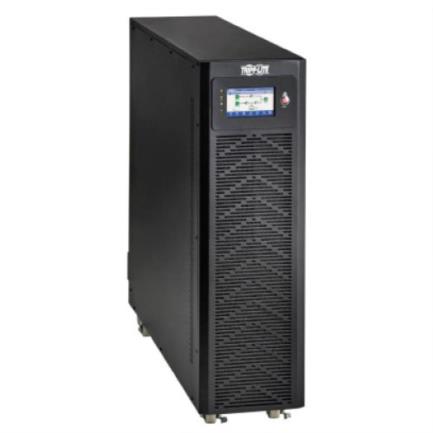

Primary Form Factor	Tower
Cooling Method	Fans
Dimensions	900 x 868 x 250 mm
Unit Weight	186.88 kg
Operating Temperature Range	0 ºC to 40 ºC [32 ºF to 104 ºF]
Storage Temperature Range	0 °C to 35 ºC [32 ºF to 95 ºF] (with batteries installed) 5 ºC to 140 ºC [-15 ºF to 60 ºF] (without batteries)
