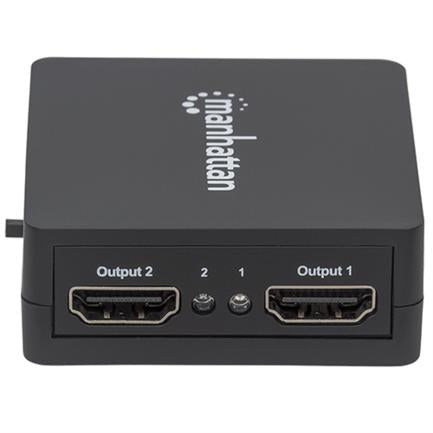

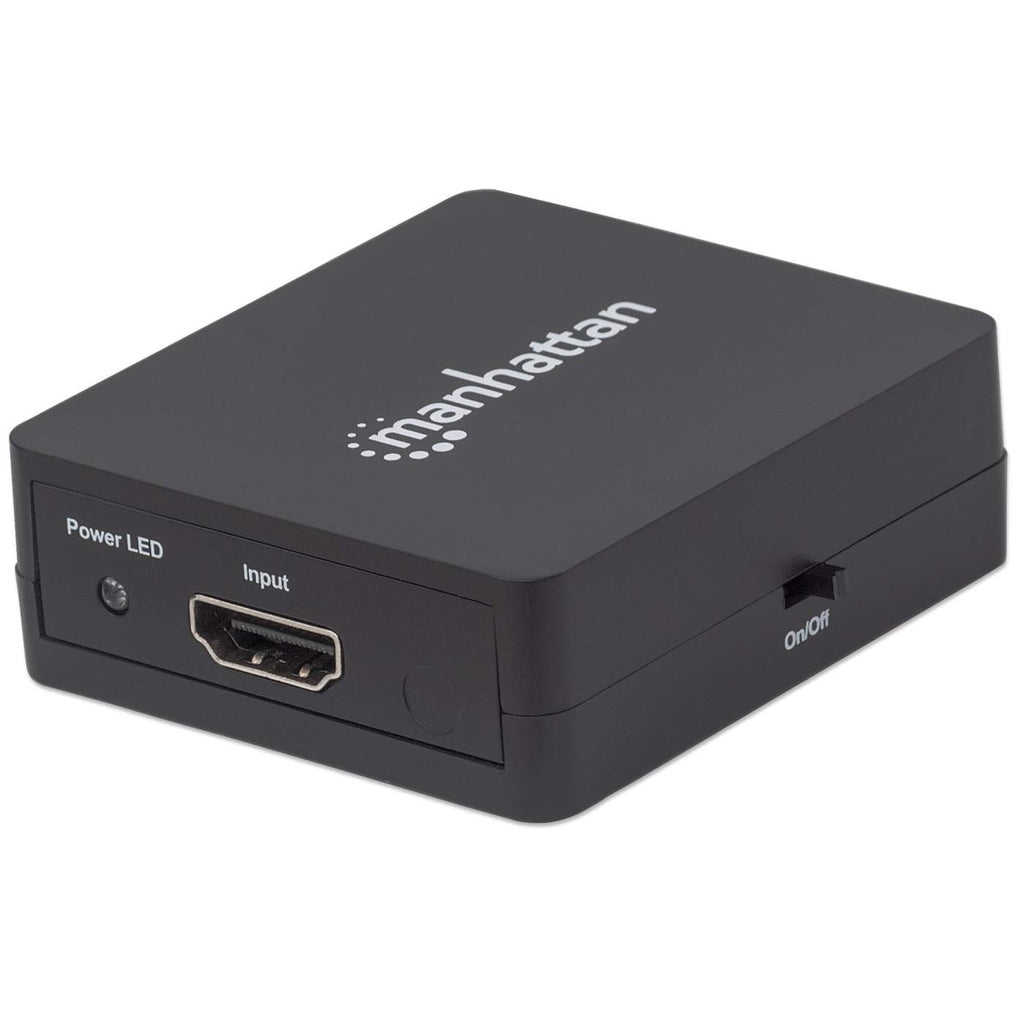

Manhattan HDMI Splitter 2-Port 1080p USB Powered Black

Distribute a single HDMI signal to multiple displays. The Manhattan 1080p 2-Port HDMI splitter transmits the signal from game consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes, or other HDMI sources to two HDMI displays. A flexible solution for many audio/video applications. Ideal for trade shows, classrooms, video conferences, and small businesses, the Manhattan 1080p 2-Port HDMI splitter features a booster for an even stronger signal. In addition, it is the ideal solution for splitting and distributing a single signal to different HDMI displays when the base equipment is stored in a secure room or office. Users can cascade multiple units up to three levels, with HDMI audio/video outputs to additional displays in widely distributed applications. Best quality and easy installation. Full HDMI compatibility, H

Easily distribute one HDMI signal to multiple displays

The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays.

Flexible Solution for Various A/V Applications

Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster to enhance the signal. It's also an excellent choice for splitting and distributing a synchronized signal to multiple HDMI displays when the source equipment is stored remotely in a secure room or cabinet. Users can cascade multiple units up to three levels and send HDMI video/audio to additional displays in widely distributed applications.

Quality Construction and Easy Installation

Fully compliant with HDMI, HDCP 1.0, 1.1 and 1.2, as well as DVI 1.0, ensuring reliable performance and a long lifespan. Just quickly connect the HDMI cables (not included) and the USB power cable to complete this affordable HDMI solution, with no complicated software or hardware setup required.

4o

Technical Specifications

General Features
Brand	Manhattan
Item	Video Splitter
Color	Black
Standards and certifications	HDCP 1.0 / 1.1 / 1.2, DVI 1.0, CE, FCC, RoHS2
Distance from source to splitter:	up to 15 m
Distance from splitter to monitor:	up to 15 m
Power consumption:	5 W; USB cable, 0.7 m
Connections	One 19-pin female HDMI connector (input), Two 19-pin female HDMI connectors (output), One 5-pin female mini-B USB connector (input)
Video input signal	0.5 – 1.0 V p-p
DDC input signal	5 V p-p (TTL)
Maximum single link range	2.25 Gb/s, 1920x1200, 1080p
Video output	HDMI 1.3b, HDCP 1.0 / 1.1 / 1.2, DVI 1.0
Frequency	2.25 Gbps / 225 MHz
Video resolutions	DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p
LED indicators	Power and port connection
Operating temperature	0 – 70°C
Storage temperature	-10 – 80°C
Operating humidity (non-condensing):	10 – 85 %
Dimensions	6 cm x 5.4 cm x 2 cm
Weight	0.04 g
