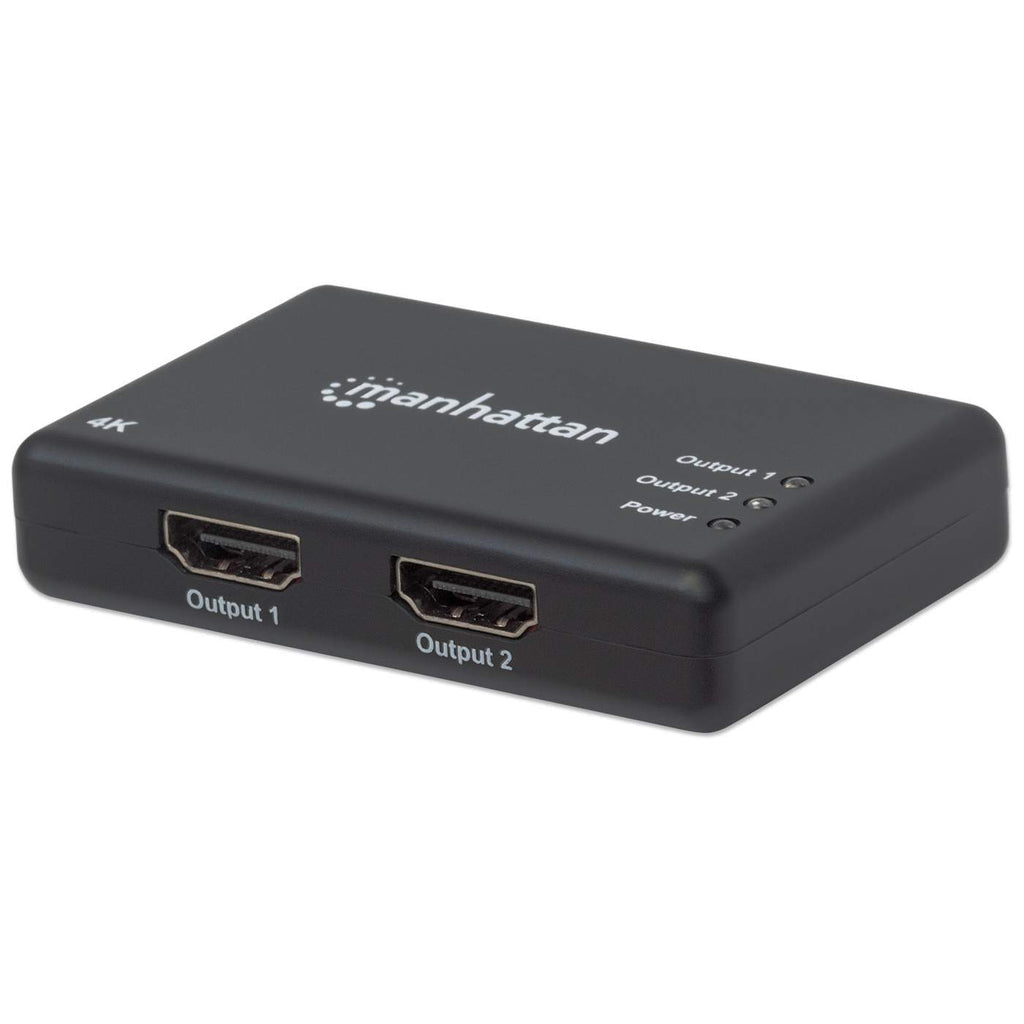

Manhattan 2-Port HDMI UHD 4k/30Hz Video Splitter, Black

Distribute a single Ultra-High-Definition (UHD) signal to multiple displays. The Manhattan 4K 2-Port HDMI Splitter with integrated booster transmits a 4K HDMI signal from a single UHD source to up to two UHD displays. A flexible solution for many audio/video applications. Ideal for trade shows, classrooms, video conferencing, and small retail businesses, the Manhattan 4K 2-Port splitter features an integrated booster for an even stronger signal. It is also the ideal solution for splitting and distributing a single signal to different 4K HDMI displays when the source equipment is stored in a secure room or office. Users can cascade multiple units up to three levels, providing HDMI audio/video outputs to additional displays in widely distributed applications. Best quality and easy installation. Full compatibility with HDMI, HDCP 1.4, and DVI 1.0 ensures high-quality performance and

Easily distributes an Ultra High-Definition (UHD) signal to multiple displays

The Manhattan 4K 2-Port HDMI Splitter with integrated amplifier transmits a 4K HDMI signal from a single UHD source to up to two UHD displays.

Flexible solution for various A/V applications

Ideal for trade shows, classrooms, video conferencing, home theater, presentations, and retail applications, the Manhattan 4K HDMI Splitter features a built-in amplifier for enhanced signal power. It's an excellent choice for splitting and distributing a synchronized signal to multiple 4K HDMI displays when the source equipment is stored remotely in a secure room or cabinet. Multiple units can be daisy-chained up to three levels to send HDMI video/audio to additional displays in widely distributed applications.

Quality construction and easy installation

Fully compliant with HDMI, HDCP 1.4, and DVI 1.0, ensuring the Manhattan HDMI Splitter provides long-lasting service and reliable performance. Simply connect the HDMI cables (not included) and the AC power adapter, and this affordable UHD solution is ready, with no software/hardware setup or complicated adjustments required.

4o mini

Technical Specifications

General Features
Brand	Manhattan
Item	Video Splitter
Color	Black
Standards and certifications	HDCP 1.4, DVI 1.0, CTS 1.4a, CE, FCC, RoHS2
Distance from splitter to monitor:	up to 15 m
Power consumption:	5 VDC; AC Adapter, 0.9 m
Connectors	One 19-pin HDMI female connector (input), Two 19-pin HDMI female connectors (output), One DC female connector, outer diameter 3.5 mm / inner diameter 1.3 mm (input)
Video input signal:	0.5 - 1.0 V p-p
DDC signal input:	5 V p-p (TTL)
Maximum single link range:	3840x2160 at 30 Hz, 4096x2160 at 24 Hz resolution
Video output	HDCP 1.4, DVI 1.0
Frequency	3.4 Gb/s / 340 MHz
Video resolutions	DTV/HDTV: 480i/480p, 576i/576p, 720p, 1080i/1080p, 4K@30Hz
LED indicators:	power and port connection
Adapter:	5 VDC / 1 A; 0.9 m
Dimensions	7.5 cm x 4.9 cm x 1.6 cm
Weight	0.04 kg
Operating temperature:	0 - 40°
Storage temperature	-20 -60°C
Humidity (non-condensing):	0 – 96%
