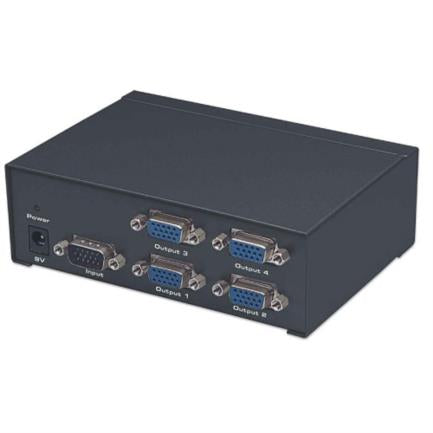

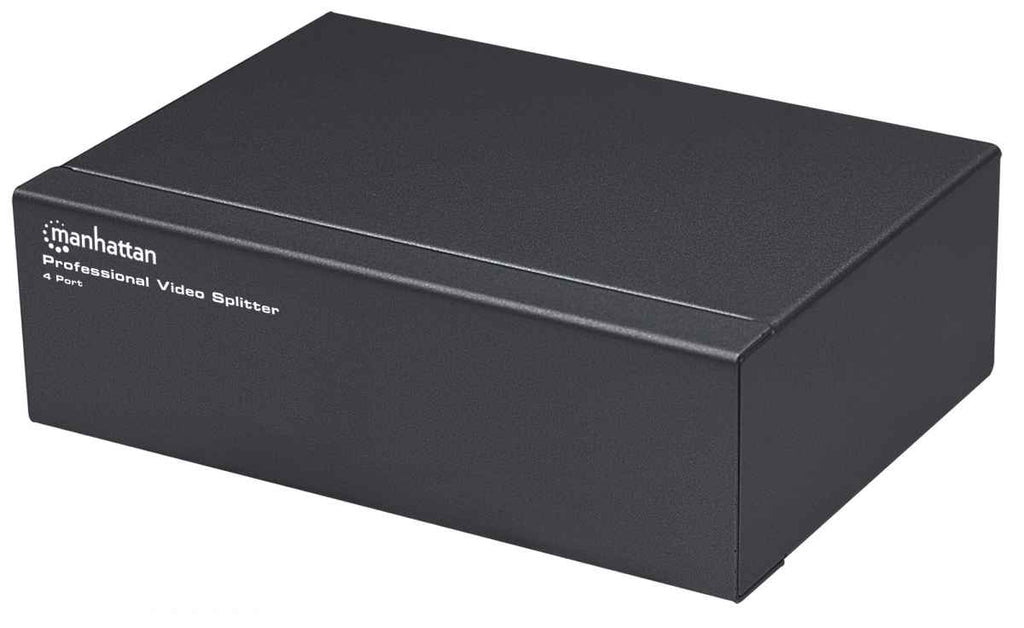

Manhattan Professional 4-Port VGA/SVGA/Multisync Video Splitter

MANHATTAN

Manhattan Professional 4-Port VGA/SVGA/Multisync Video Splitter

$ 925.00

Tiempo estimado de entrega: 5 días hábiles (Nacional)

Usa el código “DB2B2026” para obtener un descuento del 15%

Envío gratis en compras mayores a $0,000.00 MXN

Ask a question

Barcode: 0766623207348
Sku: 207348
Type: Computer Accessories

Garantizamos un pago seguro:

Características del producto

Distribute a high-definition signal to multiple monitors. The MANHATTAN Professional Video Splitter with boosted signal bursts sends video from VGA sources to four monitors. Ideal for exhibitions, classrooms, video conferences, and point-of-sale applications, the MANHATTAN Professional Video Splitter is a good choice for multiplying and distributing the signal from one video source to various monitors located at different and distant points from the transmitting equipment. Up to three units can be cascaded to add monitors in robust applications. Gold-plated contacts and its fully shielded metal chassis ensure signal transmission with very little degradation.

Technical Specifications

General Features
Brand	Manhattan
Item	Video Splitter
Standards and Certifications	• FCC • CE • ISO9002
LED Indicator	Power (green)
Cable Length	maximum: 65 m
Input Connector:	1 HD15 male; output, 4 HD15 female
Power Adapter:	9 V AC, 300 mA
Bandwidth	350 MHz
Signal Types	VGA, SVGA, multi-sync
Input Voltage, minimum	0.5 V p-p
Input Voltage, maximum:	1.0 V p-p
I/O Impedance	75 Ohms
Range from computer to splitter	7.5 m
Range from signal multiplier to monitor	65 m
Resolution:	1920 x 1680
Horizontal Frequency	30 – 120 KHz
Vertical Frequency	40 – 120 Hz
Ports	• 1 HD15 male • 4 HD15 female • 1 power port 9 V, 1000 mA
Dimensions	13.3 cm x 9.4 cm x 4.2 cm
Weight	396 g
